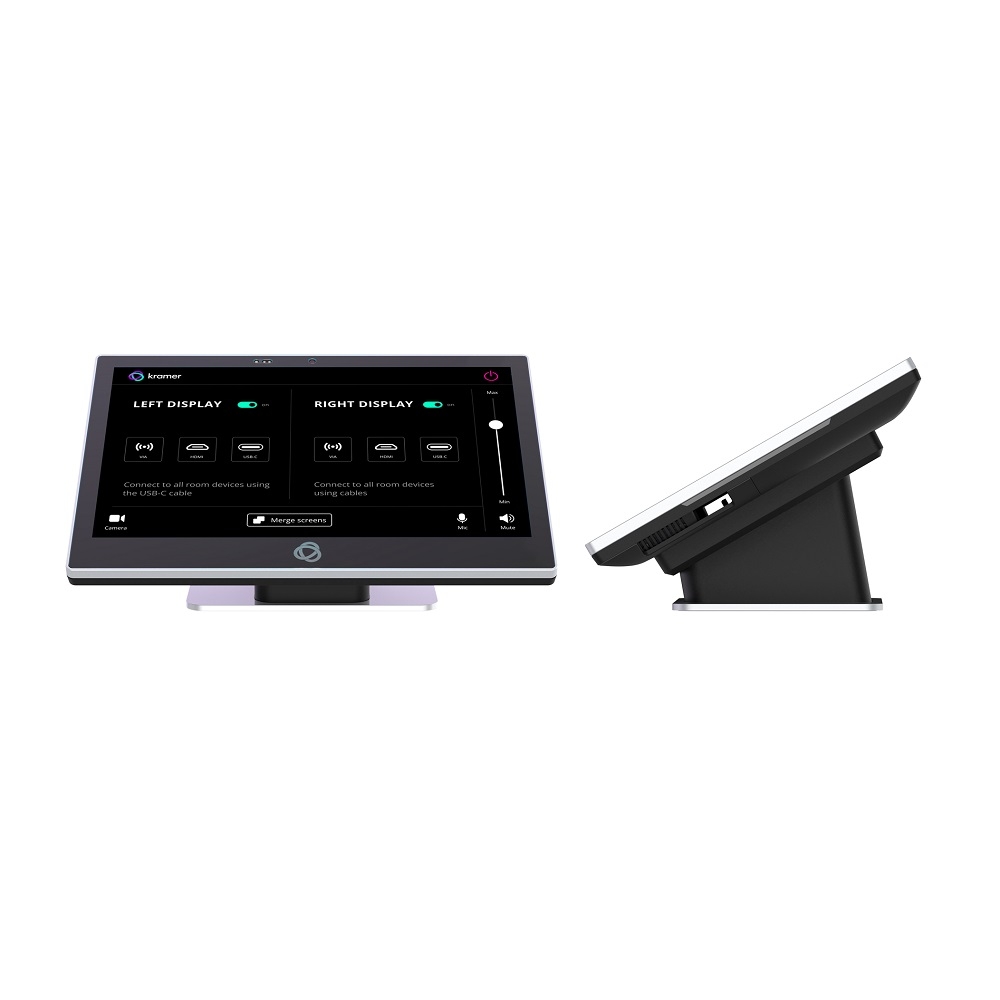

Kramer KT-2010SH 10–Inch Table Mount PoE Touch Panel
10" elegant, portable, high–quality touch panel
Single Ethernet cable for connectivity & powering
Highly secured operation
Flexible locking options
Supported by: Kramer Control
Kramer KT−2010SH is a powerful new 10−inch touch panel, specially designed for secure deployments. KT−2010SH is ideal for any 24/7 Kramer−supported commercial AV or control application and features a user−friendly, fully customizable graphical user interface configured by Kramer software.
This IPS, multi−touch touch panel with 1920x1200 resolution is elegantly designed for decorative room integration, runs Android 11 and supports PoE (Power over Ethernet). The touch panel comes with tabletop and wall mounts in the box. It is easy to assemble, using elegant wiring, secured mounting providing reliable operation and flexible deployment.
- Secured Operation — Highly secured operation of applications using password protection and hidden control buttons. Especially designed for high security environments (for example: Military, Ministry of Defense and other law enforcement agencies) where no wireless connectivity (for example Wi–Fi and Bluetooth), no cameras, no speakers and no microphones are required for secure operations.
- Secured Deployment — Flexible locking options prevent unwanted panel mount removal and are elegantly designed to remain out of sight.
- Elegant Design — Smooth integration with room furniture design, on table, with flexible panel cabling and locking design options.
- Superior User Experience — IPS 1920x1200 hi–resolution screen with ±80° horizontal and vertical wide viewing angles, ambient light sensor, proximity sensor, with advanced 10 multi–touch points and 2–finger gesture capabilities.
- Flexible Services — Latest Android 11 operating system.
- Easy Installation — Powering and connectivity via a single Ethernet cable.
- Flexible Mounting — Including table and wall mounts.
- Versatile Powering Options — PoE and power adapter (sold separately).
- Auto Sensing — Optimized performance and operation according to automatically detected LAN speed.
- Firmware Update — Define automatic updates on a predefined time of the day or update manually using USB port.
Ports
1 Ethernet: On an RJ–45 connector, 10/100/1000 Mbps LAN with PoE 802.3at
1 USB: On a USB type C (ADB) connector
1 USB: On a USB Type A connector
General
CPU Performance: ARM Quad–core Cortex–A53 up to 1.8GHz (64 bit)
System Memory: 4GB LPDDR4
Internal Storage Memory: 32GB eMMC(flash)
Touch Panel Type: 10.1 point capacitive multi–touch type
Display Screen: 5 points, multi–touch (PCAP)
Display Size: 10.1” (16:9 diagonal), 1920 RGB (H) x 1200(V) pixels
VESA Mounting Ready: Metal–fittings mounting screw holes for 75x75mm VESA mount
Contrast Ratio: 350cd/m2 brightness, 1000:1
Back-light: LED Side–light type
Video
Video Format: H.264 / H.265,VC–1, MPEG–4, VP9/VP8
Image Codecs: JPEG/BMP/GIF/PNG
Power
PoE: Power over Ethernet 802.3af(/at)
Source: 12V/2A DC adapter (optional)
User Interface
Controls: Volume, menu, and power buttons
Indicators: LED sidebars to indicate room status (requires 3rd party integration)
Accessories
Included: Table mount and wall mount for KT–2010SH
Environmental Conditions
Operating Temperature & Humidity: 0° to +40°C (32° to 104°F), 5% to 85%
Storage Temperature & Humidity: –20° to +60°C (–4° to 140°F), 5% to 90%
Regulatory Compliance (Standards Compliance)
Safety: CE, FCC, UL, UKCA
Environmental: RoHs, WEEE
PHYSICAL
Product Dimensions: 24.2x1.85x17.3 (9.5" x 0.73" x 6.8") W,D,H
Package Dimensions: 30.9cm x 24.2cm x 17.5cm (12.2" x 9.5" x 6.9" ) W, D, H
Product Weight: 0.56kg (1.2lbs) approx
KT-2010SH Package Weight: 1.4kg (3.1lbs) approx
Product Dimensions
24.20cm x 1.85cm x 17.30cm (9.53" x 0.73" x 6.81" ) W, D, H
Product Weight
0.6kg (1.2lbs) approx.
