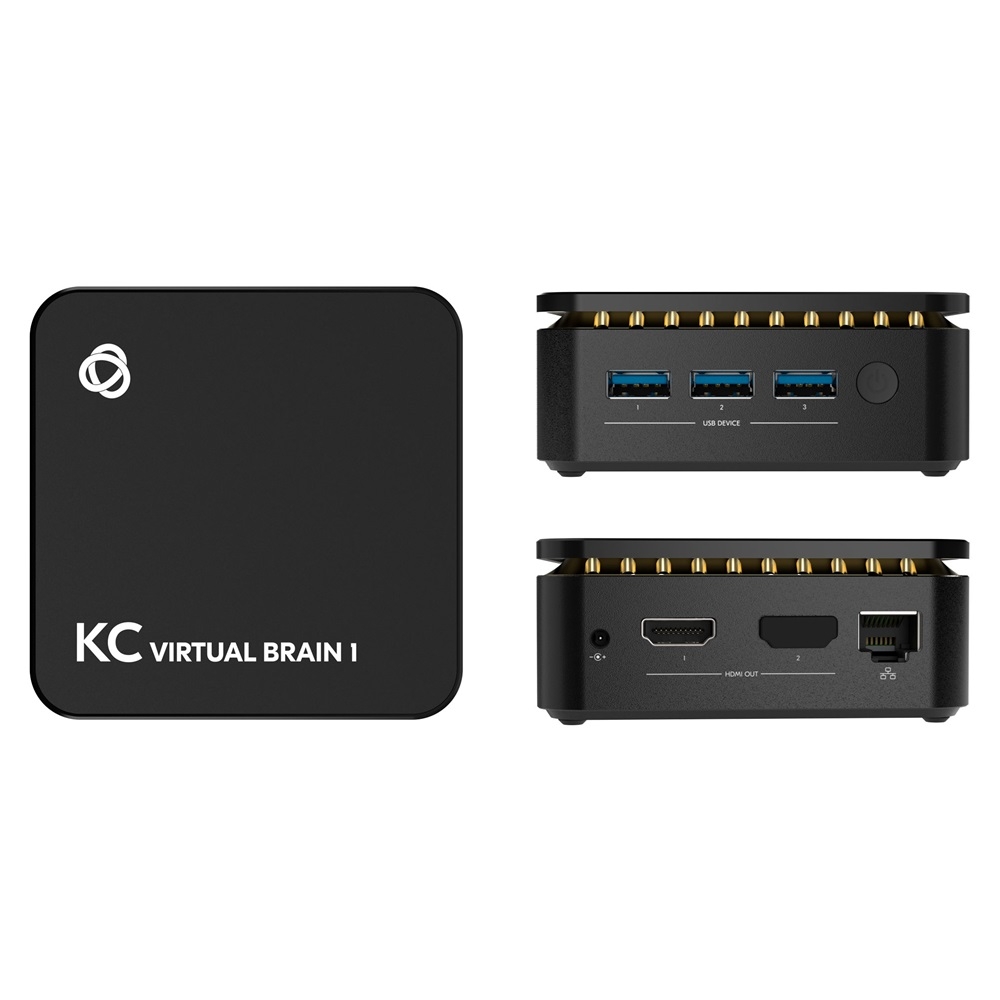

KC-Virtual Brain1 (Gen2) Hardware Platform with 1 Instance of Kramer BRAINware
Fully customizable UI
Replaces physical Brains
Enables controlling almost any device
Scalable & flexible control
Simple configuration
Updated Hardware
Kramer KC−Virtual Brain1 (Gen2) is a hardware platform with 1 instance of Kramer BRAINware software already installed on the device. The Gen2 model features enhanced processing capabilities and upgraded hardware components for improved performance and reliability. KC−Virtual Brain1 (Gen2) is designed to maximize the features and benefits of Kramer BRAINware for controlling 1 standard space (e.g. a standard space could include a scaler, monitor, lighting system, touch panel and keypad). Kramer BRAINware is an enterprise−class, revolutionary, user−friendly, software application that enables you to execute all your room control actions straight from a computer without installing a physical Brain between the user interface and the controlled devices. Using the power of Kramer Control cloud–based control & space management platform, Kramer BRAINware enables you to operate multiple devices over Ethernet such as scalers, video displays, audio amplifiers, Blu−ray players, sensors, screens, shades, door locks, and lights. Designing a system was never easier, with Kramer Control's intuitive drag & drop Builder. Install, configure and modify your control system without any prior knowledge in programming.
- Simplified AV Installation — Control a room without installing a physical Brain.
- Format Conversion — Use Kramer FC family of control format converters to enable controlling almost any device.
- Fully Customizable UI — Using Kramer Control, easily personalize your control interface any way you like.
- Space Controller — Controls any AV device with its corresponding logic.
- Simple Configuration — Install and start using the platform in minutes with easy configuration.
Ports
1 Ethernet: On an RJ–45 connector
3 USB 3.0: On a female USB type–A connector
Outputs
1 HDMI: 2.0: On a female HDMI connector
Video
Max Resolution: Up to 4K Output
General
Operating System: Linux
Networking: 1 x Gigabit LAN Wi–Fi 802.11 ac/b/g/n dual band & Bluetooth
Operating System: Linux
Power
Source: 12V DC
Consumption: 3.8A
Accessories
Included: Power adapter
Environmental Conditions
Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing
Regulatory Compliance (Standards Compliance)
Safety: CE, FCC, UL, BIS
Enclosure
Type: Aluminum cooling, fan with sink, Kensington lock
Dimensions: 89.9mm x 89.9mm x 36mm (3.54" x 3.54" x 1.42")
PHYSICAL
Product Weight: 0.2kg (0.4lbs) approx
