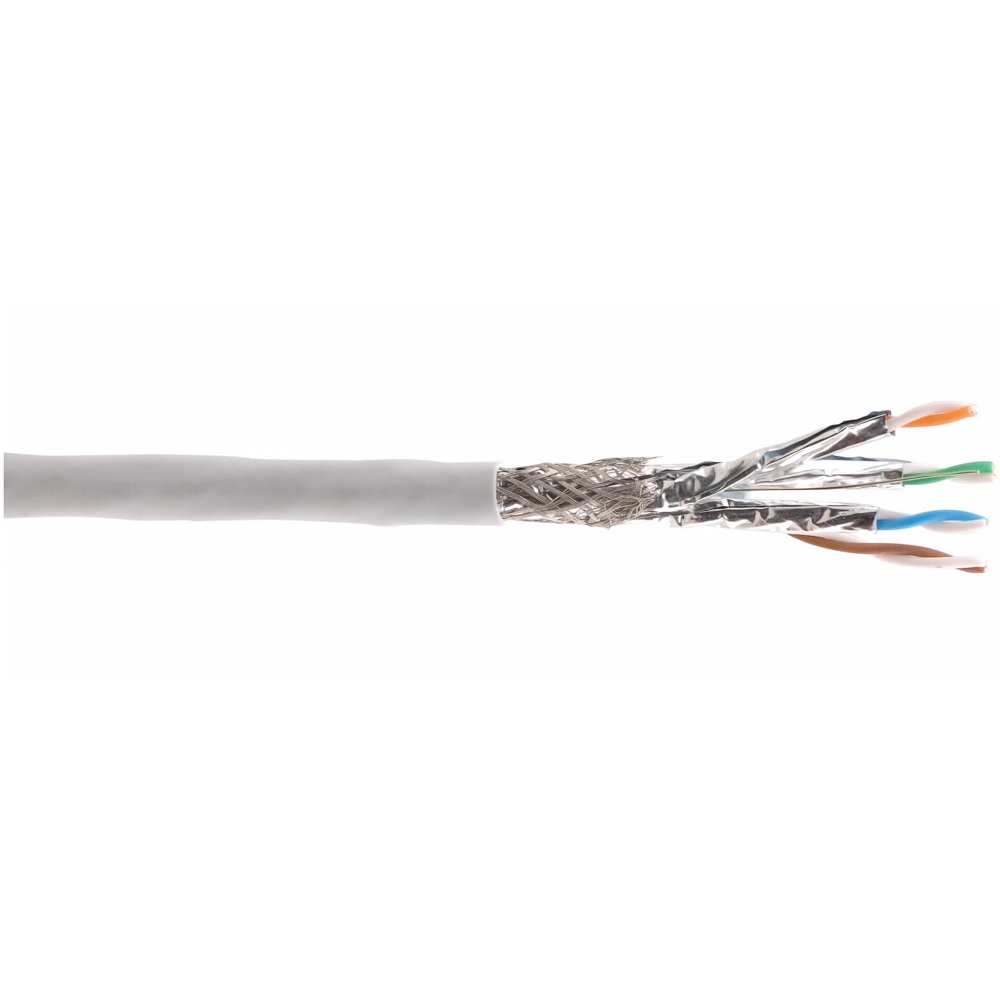

Dây cáp Four–Pair S/FTP (23AWG) BC-DGKat7a23
Mô tả ngắn
Four–Pair S/FTP Data Bulk Cable (23AWG) - Kramer BC-DGKat7a23
Length — 100/305m (328/1000ft)
Requires Custom RJ–45 Connector for 23AWG cable
Hotline: 0918 642 886
Kramer's BC−DGKat7a23 is a 4−pair S/FTP (braided shield around foiled twisted pair) cable designed as the ideal companion to Kramer's twisted pair digital transmitter−receiver sets to provide optimum range and performance. The cable is optimized for the new 10GBase−T applications as defined in IEEE 802.3an and for PoE+.
-
- Quality Construction — 4 individually aluminum–foil shielded twisted pairs (S/FTP), cabled with a drain conductor and overall braid–shielded.
-
- Optimized for Kramer Hardware — Use with any of Kramer’s wide range of twisted pair digital transmitter–receiver sets. Terminate with shielded RJ–45 connectors.
-
- Length — Available in pull boxes of 100/305m (328/1000ft).
-
- Optimized for the new 10GBASE–T applications as defined in IEEE 802.3an and for PoE+.
|
MODEL |
DESCRIPTION |
LENGTH |
|
BC–DGKat7a23–100M |
23 AWG STP Bulk Cable Optimized for Kramer DVI & HDMI Products |
328' 100.00(M) |
|
BC–DGKat7a23–305M |
23 AWG STP Bulk Cable Optimized for Kramer DVI & HDMI Products |
1000' 305.00(M) |
CONSTRUCTION
-
Conductor Size: 23AWG bare solid copper
-
Total Wires: 8
-
Internal Shield Material: Aluminum poly foil
-
Drain Wire: Solid 0.41mm (0.016in) tinned copper
-
Overall Shield Material: Tinned–copper braid
-
Conductor Color Code: White/blue, white/orange, white/green, white/brown
DIAMETERS
-
Outside Diameter: 8.1mm nominal
ELECTRICAL
-
Frequency Range: 1 to 1200MHz
-
Propagation Delay Skew: 20ns/100m max
-
Velocity of Propagation: 80% nominal
-
Impedance: 100Ω
-
DC Resistance: 65Ω/km (21Ω/1000ft) @20°C nominal
-
Max Resistance Unbalanced: 2%
-
Capacitance: 1.2pF/m max
-
Temperature: –40° to +65°C (–40° to 149°F)
-
Attenuation (dB per 100ft): –1.8dB @1MHz
-
Attenuation (dB per 100ft): –4.9dB @10MHz
-
Attenuation (dB per 100ft): –15.7dB @100MHz
-
Attenuation (dB per 100ft): –27.8dB @300MHz
-
Attenuation (dB per 100ft): –40.0dB @600MHz
-
Attenuation (dB per 100ft): –52.7dB @1000MHz
REGULATORY
-
Standards: IEC 61156, ISO/IEC 11801, RoHS 2011/65/EU
