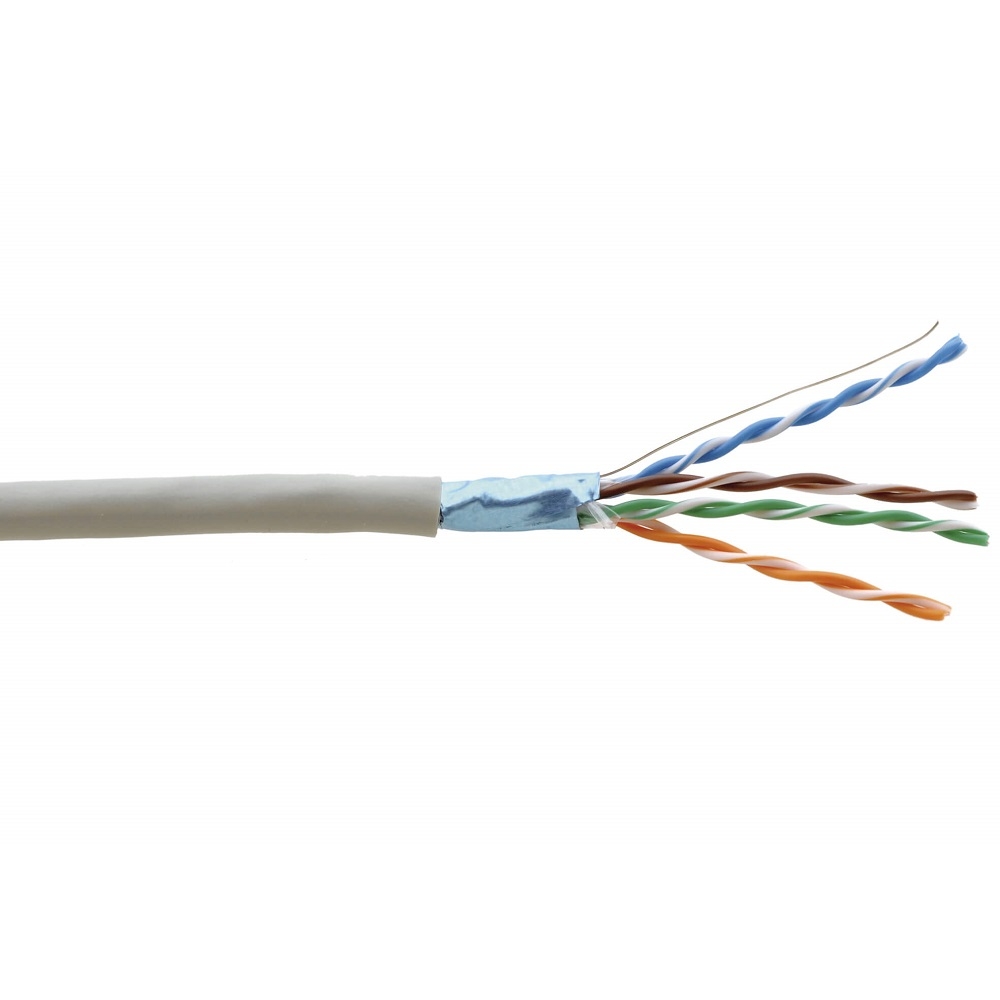

Dây cáp Four–Pair F/UTP (24AWG) BC-DGKat524
Mô tả ngắn
Four–Pair F/UTP Data Bulk Cable (24AWG) - Kramer BC-DGKat524
Length — 100/305m (328/1000ft)
Hotline: 0918 642 886
Kramer's BC−DGKat524 is 4−pair F/UTP (foil around unshielded twisted pair) cable designed as the ideal companion to Kramer's twisted pair digital transmitter−receiver sets to provide optimum range and performance.
-
- Quality Construction — 4 non–shielded (F/UTP) twisted pairs of 24AWG solid copper conductors are cabled together and shielded with a polyester–aluminum tape and outer jacket.
-
- Optimized for Kramer Hardware — Use with any of Kramer’s wide range of twisted pair digital transmitter–receiver sets. Terminate with shielded RJ–45 connectors.
-
Length — Available in pull boxes of 100/305m (328/1000ft).
|
MODEL |
DESCRIPTION |
LENGTH |
|
BC–DGKat524–100M |
24 AWG STP Bulk Cable Optimized for Kramer DVI & HDMI Products |
328' 100.00(M) |
CONSTRUCTION
-
Center Conductor: 24AWG, solid bare copper
-
Outer Jacket Color: White
-
Total Wires: 8
-
Drain Wire: Solid 24AWG tinned copper
-
Outer Shield Material: Polyester aluminum tape
-
Conductor Color Code: White/blue, white/orange, white/green, white/brown
DIAMETERS
-
Outside Diameter: 6.1mm nominal
-
Conductor Size: 0.5mm (0.02in)
ELECTRICAL
-
Impedance: 100Ω
-
DC Resistance: 94Ω/km (31Ω/1000ft) nominal
-
Max. Resistance Unbalanced: 2%
-
Capacitance: 1.2pF/m max
-
Propagation Delay Skew: 35ns/100m (1.14ns/100ft) max
-
Temperature: –20° to 60°C (–4° to 140°F)
