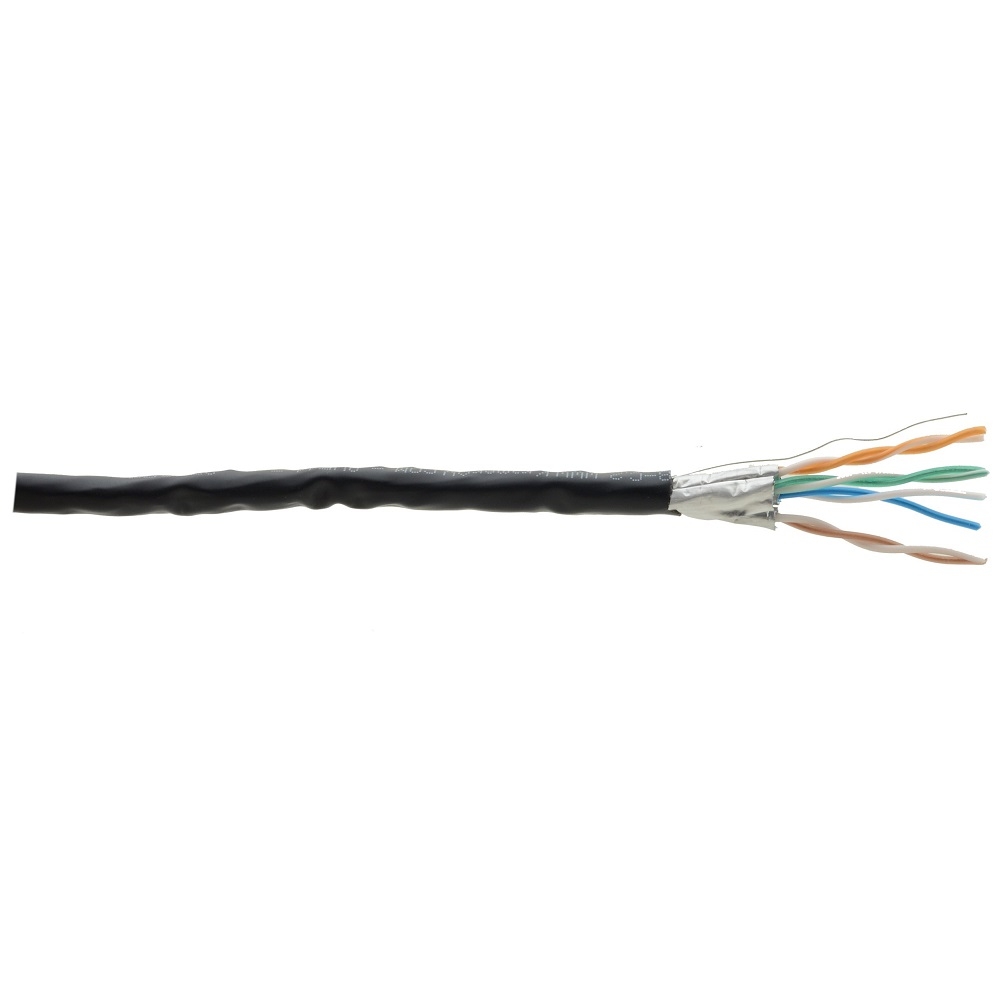

Dây cáp CAT6A U/FTP BCP-UNIKAT
Mô tả ngắn
CAT6A U/FTP Video & LAN Bulk Cable, Plenum Rated - Kramer BCP-UNIKAT
Hotline: 0918 642 886
BCP−UNIKAT is a unified CAT6a plenum rated cable that handles all Pro AV and IT signals. Over four individually screened twisted pairs, this U/FTP CAT6A cable runs Kramer’s DGKat™ technology, 4K HDBaseT™ technology or LAN applications to ensure optimal signal performance.
-
- Quality Construction — 4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded plenum–rated outer jacket.
-
- Optimized for Kramer Hardware — Use with any of Kramer’s wide range of twisted pair digital transmitter–receiver sets. Terminate with shielded transmitter–receiver sets (DGKat™ and HDBaseT) and shielded RJ–45 connectors.
-
- UL–CMP Rated.
-
- RJ–45 Connector — The larger diameter 23AWG twisted pair cable requires a special RJ–45 connector. Use the K–LAN CON–RJ45–3.
-
- Varied Selection of Length — Available in pull boxes of 250, 500 and 1000ft (76 to 305m).
|
MODEL |
DESCRIPTION |
LENGTH |
|
BCP–UNIKAT–250 |
23AWG U/FTP CAT6A Bulk Cable Optimized for Kramer's DGKat, HDBaseT and LAN Applications — Plenum Rated |
250' 76.20(M) |
|
BCP–UNIKAT–500 |
23AWG U/FTP CAT6A Bulk Cable Optimized for Kramer's DGKat, HDBaseT and LAN Applications — Plenum Rated |
500' 152.40(M) |
|
BCP–UNIKAT–1000 |
23AWG U/FTP CAT6A Bulk Cable Optimized for Kramer's DGKat, HDBaseT and LAN Applications — Plenum Rated |
1000' 305.00(M) |
CONDUCTORS
-
SIZE: 4x2x23AWG
-
MATERIAL: Annealed copper
-
DIAMETER: 0.59 ±0.01mm
INSULATION
-
MATERIAL: FEP
-
DIAMETER: 1.45±0.10mm
-
COLOR CODE: Blue/white–blue, brown/white–brown, orange/white–orange, green/white–green
SCREENING
-
MATERIAL: Alu/PET per pair (Alu side out)
DRAIN WIRE
-
MATERIAL: Tinned copper
-
DIAMETER: 0.4±0.01mm
JACKET
-
MATERIAL: CMP PVC
-
COLOR: Black
-
THICKNESS: ≥0.45mm
-
DIAMETER: 0.4 ±0.01mm
ELECTRICAL
-
IMPEDANCE: 1–100MHz: 100 ±15Ω, 100–250MHz: 100 ±20Ω, 250–500MHz: 100 ±25Ω
-
PROPAGATION VELOCITY (NVP): 72%
-
VOLTAGE RATING: 30V
-
DELAY SKEW: <42ns
-
MUTUAL PAIR CAPACITANCE: ≤42pF/m
-
Capacitance Unbalance: ≤1500pF/km
-
CONDUCTOR DC RESISTANCE: <79.8Ω/km
-
PAIR RESISTANCE UNBALANCE DC: <1.5%
-
DIELECTRIC STRENGTH: 2.5kV DC (2s)
-
INSULATION RESISTANCE: >5000MΩ/km
USAGE AND ENVIRONMENTAL
-
STORAGE / TRANSPORT / INSTALLATION: 0˚ to +50˚C
-
OPERATION: –20˚ to +60˚C
MECHANICAL
-
MAXIMUM PULLING TENSION: 100N
-
BENDING RADIUS - INSTALLED: 50mm
-
BENDING RADIUS - DURING INSTALLATION: 60mm
STANDARDS COMPLIANCE
-
ELECTRICAL: IEC 61156–5:2009
-
ELECTRICAL: ISO/IEC 11801:2011
-
ELECTRICAL: EN 50173
-
ELECTRICAL: EN 50288
-
ELECTRICAL: EIA/TIA 568–C.2 : 2009
-
ELECTRICAL: UL 444
-
FIRE PERFORMANCE: UL–CMP (E308599)
-
ROHS: 2011 /65/EU
