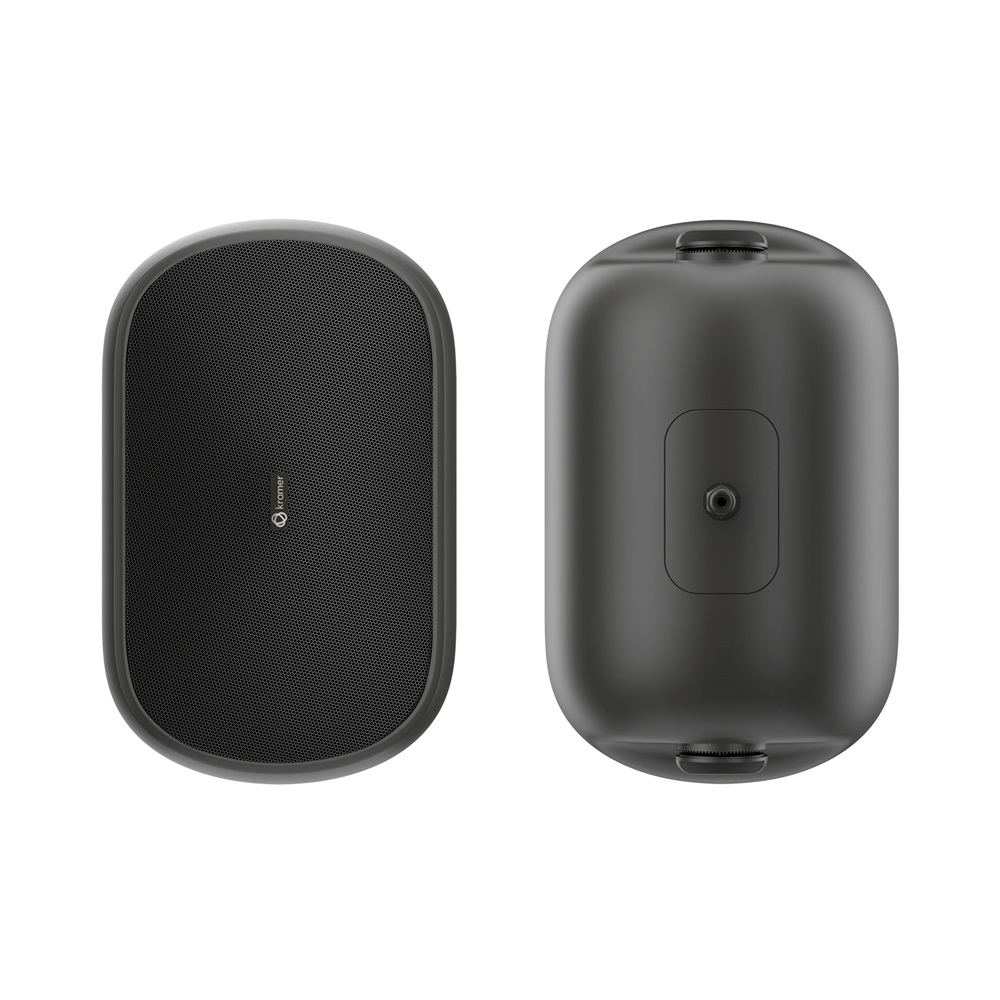

Bộ loa treo tường Passive AW-8P
Mô tả ngắn
Kramer AW-8P All–weather, IP66/UL rated, high performance 8” two–way wall mounted passive speaker
All weather, 8”, 2–way wall mounted passive speaker
Superb sound, high performance, esthetic design
Low–impedance (8Ω) / high–impedance (70V/100V)
Power ratings: 60W continuous / 90W peak
IP66 certified for outdoor installations
UL1480A compliant for indoor installations
Industrial design: wall–mounted, tool–less installation, available in black & white colors, removable logo
Hotline: 0918 642 886
Kramer’s AW Series are engineered to deliver exceptional sound performance in both indoor and outdoor environments. The AW-8P is an 8” high−performance all−weather passive speaker. This UL compliant/IP66−rated all−weather speaker is designed to withstand the elements while providing clear, high−quality audio, making it the perfect solution for mixed installations, in which some of the speakers are outdoor and other are indoor. The speaker supports both 8Ω low impedance as well as several 70V/100V high impedance modes. The speaker is available in both black & white colors.
- IP66 rated for outdoor installations
- UL1480A compliant for indoor installations, made of flame retardant ABS765A
- Exceptional sound performance
- Low–impedance (8Ω) / high–impedance (70V/100V)
- Power handling: 60 W continuous / 90 W peak
- Sensitivity (1W@1m, free field): 90dB SPL
- Maximum SPL (@1m): Continuous: 108dB SPL / Peak: 110dB SPL
- Industrial design: wall–mounted, toolless installation, available in black & white colors
- Included in the Box — 1 speaker (single unit), 2 speakers are packed in a single master box, 1 mounting bracket + 2 toolless bracket screws, 4–pin pluggable Euroblock connector 28–12AWG, Quick Start Guide
DESCRIPTION
-
All–weather, IP66/UL certified, 8” two–way wall mounted passive speakers. Available in black & white colors
Audio
-
Driver:
LF Driver: 200 mm (8”) with polypropylene cone and rubber surround -
HF Driver: 25 mm (1”) liquid cooled soft–dome tweeter
-
Frequency characteristics
Frequency Range (-10dB): 70Hz–20kHz -
Frequency Response (±3dB): 87Hz–20kHz
-
Dispersion angle: 116 deg. conical dispersion (1 kHz to 4 kHz)
-
Power ratings
@ 8Ω Low impedance: 60W continuous / 90W peak -
@ 100 V High impedance: 60W/30W/15W
-
@ 70 V High impedance: 60W/30W/15W/7.5W
-
Sound Pressure Level (SPL)
Sensitivity (1W@1m, free field): 90dB SPL -
Maximum SPL: Continuous: 108dB SPL / Peak: 110dB SPL
MECHANICAL
-
Installation
Type: Surface mounted vertical or horizontal -
Mounting: Mounting bracket with toolless bracket screws
-
Connectors: 4–pin pluggable Euroblock connector, 28–12AWG
-
Weight per single speaker: 4.5kg (9.92lbs)
-
Dimensions
Dimensions without Bracket: 251mm x 200mm x 400mm / 9.88” x 7.88” / 15.75” -
Dimensions with Bracket: 251mm x 240mm x 400mm / 9.88” x 9.45” / 15.75”
-
Shipping dimensions (single unit): 322mm x 312mm x 467mm / 12.7" x 12.3" / 18.4"
-
Shipping dimensions (2 units in a Master box): 630mm x 330mm x 485mm / 24.8" x 13.0" x 19.1"
-
Shipping weight (single unit): 5.4Kg / 11.9lbs
-
Shipping weight (Master box): 8Kg / 17.6lbs
-
Material
Grill: Aluminum, removable logo -
Baffle: V–0 Flame Retardant
-
Baffle & Back enclosure: V–0 Flame Retardant
-
Bracket: Aluminum
-
Environmental
Operating Temperature: –5° to +50°C (23° to 122°F) -
Storage Temperature: –10° to +55°C (14° to 131°F)
-
Humidity: 30% to 85%, RHL non–condensing
REGULATORY
-
UL1480A Certified: UL 1480A compliant — Safety standards for fire–protective signaling in commercial spaces
-
Environmental
: RoHS, REACH, WEEE -
IP Rating: IP66
In the Box
-
1 speaker (single unit), 2 speakers are packed in a single master box
-
1 mounting bracket + 2 toolless bracket screws
-
4–pin pluggable Euroblock connector, 28–12AWG
-
Quick Start Guide
