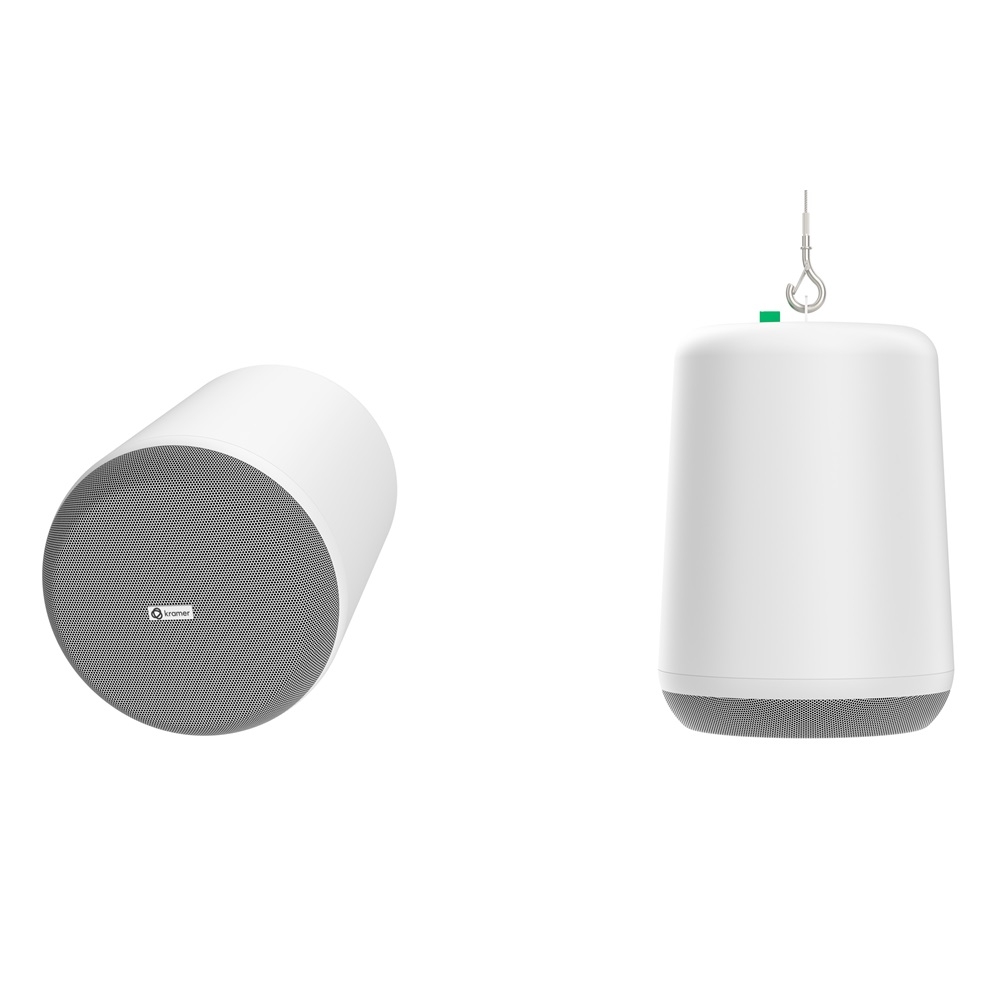

Bộ loa treo trần Passive PN-6P
Mô tả ngắn
Kramer PN-6P 6.5”, 2–way, Passive Pendant Speaker
6.5", 2–way, passive pendant speaker
Premium sound quality, high performance
Low–impedance (8Ω) / high–impedance (70V/100V)
Power ratings: 30W continuous / 45W peak
Nominal sensitivity: 90dB SPL
Maximum SPL: Continuous 105dB SPL / Peak 107dB SPL
UL1480A compliant for indoor installations
Hotline: 0918 642 886
The PN−6P – premium sound high performance, 2−way passive pendant speaker
The PN−6P Passive Pendant Speaker combines premium sound quality with a sleek, modern design, making it perfect for open−ceiling installations and spaces where aesthetics matter. Engineered as a coaxial speaker, it delivers clear, full−range sound suitable for background music and voice announcements. The speaker supports both 8Ω low impedance as well as several 70V/100V high impedance modes. This speaker offers exceptional sound and performance ideal for commercial environments. The speaker is available in both black & white colors
- Premium sound with high SPL
- Low–impedance (8Ω) / high–impedance (70V/100V)
- Power ratings: 30W continuous / 45W peak
- Sensitivity (1W@1m, free field): 90dB SPL
- Maximum SPL (@1m): Continuous: 105dB SPL / Peak: 107dB SPL
- UL1480A certified for indoor installations
- Industrial design: Available in black & white colors, removable logo
- Eco–friendly mono–material packaging
- Included in the Box — 1 speaker (single unit), 2 speakers are packed in a single master box, 1 suspension cable kit, 4–pin pluggable Euroblock connector, 28–12AWG, Quick Start Guide
DESCRIPTION
-
6.5", 2–way, passive pendant speaker. Available in black & white colors
Audio
-
Driver:
LF Driver: 165 mm (6.5 in) high output driver with polypropylene cone and rubber surround -
HF Driver: 19 mm (0.75 in) liquid cooled soft–dome tweeter
-
Frequency characteristics
Frequency Range (-10dB): 68Hz–20kHz -
Frequency Response (±3dB): 87Hz–18kHz
-
Dispersion angle: 108 deg. conical dispersion (1 kHz to 4 kHz)
-
Power ratings
@ 8Ω Low impedance: 30W continuous / 45W peak -
@ 100 V High impedance: 30W/15W/7.5W
-
@ 70 V High impedance: 30W/15W/7.5W/3.8W
-
Sound Pressure Level (SPL)
Sensitivity (1W@1m, free field): 90dB SPL -
Maximum SPL: Continuous: 105dB SPL / Peak: 107dB SPL
MECHANICAL
-
Installation
Type: Pendant ceiling speaker -
Mounting: Suspension cable systems including: 4.5m / 177” long 2mm / 0.08” diameter high–tensile galvanized–steel wire with spring–clip carabiner for clipping onto the loudspeaker bracket and a gripple fastener for adjusting speaker height. Cable have SWL rating of 45 kg / 100lbs
-
Connectors: 4–pin pluggable Euroblock connector, 28–12AWG
-
Weight per single speaker: 3.2kg (7lbs)
-
Dimensions
Speaker height (w/o mounting bracket): 270mm / 10.7” -
Speaker height (including mounting bracket): 333mm / 13.1”
-
Speaker outer diameter: 224mm / 8.82”
-
Minimum distance between the grill and the ceiling: 380mm / 15”
-
Shipping Dimensions (single unit): 330mm x 330mm x 395mm / 13" x 13" x 15.6"
-
Master box dimensions (single unit): 438mm x 438mm x 351mm / 17.3" x 17.3" x 13.9"
-
Shipping dimensions (2 units in a Master box): 668mm x 338mm x 413mm / 26.3" x 13.3" x 16.3"
-
Shipping weight (single unit): 4.50Kg / 9.92lbs
-
Shipping weight (2 units in a Master box): 9.6Kg / 21.2lbs
-
Packaging: Eco–friendly mono–material packaging made entirely from recyclable carton, designed for durability and ease of recycling
-
Material
Grill: Black/White Powder Coated Steel, with cloth, removable logo -
Baffle: V–0 Flame Retardant
-
Environmental
Operating Temperature: –5° to +50°C (23° to 122°F) -
Storage Temperature: –10° to +55°C (14° to 131°F)
-
Humidity: 30% to 85%, RHL non–condensing
REGULATORY
-
UL1480A Certified: Meets safety standards for fire–protective signaling in commercial spaces
-
Environmental
: RoHS, REACH, WEEE
In the Box
-
1 speaker (sigle unit), 2 speakers are packed in a single master box
-
1 suspension cable kit
-
4–pin pluggable Euroblock connector, 28–12AWG
-
Quick Start Guide
Product Dimensions
-
25.50cm x 25.50cm x 31.50cm (10.04" x 10.04" x 12.40" ) W, D, H
Product Weight
-
3.2kg (7.0lbs) approx.
