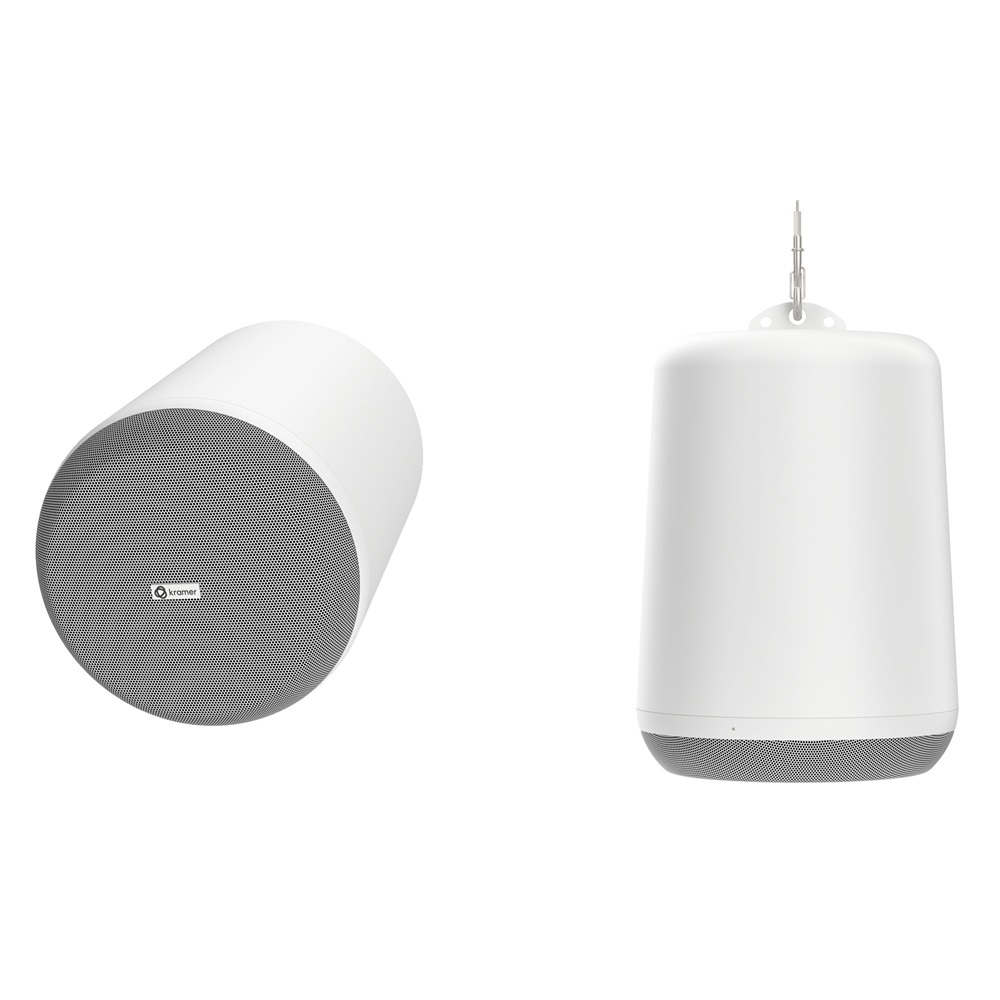

Bộ loa treo trần Dante PoE PN-6D

DESCRIPTION

• 6.5", 2–way, PoE powered Dante pendant speaker

Audio

• Driver:
  LF Driver: 165 mm (6.5 in) high–output driver with polypropylene cone and rubber surround

• HF Driver: 19 mm (0.75 in) liquid–cooled soft–dome tweeter

• Frequency characteristics
  Frequency Range (-10dB): 65Hz–20kHz

• Frequency Response (±3dB): 85Hz–18kHz

• Dispersion angle: 108deg. (1 kHz to 4 kHz)

• Power handling:
  PoE++: 10W continuous / 30W peak

• PoE+: 10W continuous / 20W peak

• PoE: 10W continuous / 10W peak

• OCM (Over-Current Protection): Monitors input current and reduces gain to prevent damage

• OSP (Output Shortcut Protection): Shuts down and restarts the amplifier if a shortcut is detected

• OTM (Over-Temperature Protection): Automatically lowers volume if overheating is detected, restoring it once temperature normalizes

• Maximum SPL:
  PoE++: Continuous: 100dB / Peak 105dB

• PoE+: 100dB / Peak 103dB

• PoE: 100dB / Peak 100dB

MECHANICAL

• Installation
  Type: Pendant ceiling speaker

• Mounting: Suspension cable systems including: 4.5m / 177” long 2mm / 0.08” diameter high–tensile galvanized–steel wire with spring–clip carabiner for clipping onto the loudspeaker bracket and a gripple fastener for adjusting speaker height. Cable have SWL rating of 45 kg / 100lbs

• Connectors: RJ–45, factory reset button

• Dimensions
  Speaker height (w/o mounting bracket): 312mm / 12.3”

• Speaker height (including mounting bracket): 333mm / 13.1”

• Speaker outer diameter: 224mm / 8.82”

• Minimum distance between the grill and the ceiling: 380mm / 15”

• Shipping
  Packed as single, 2 single boxes are packed in a master box: Eco–friendly mono–material recyclable carton

• Shipping Dimensions (single unit): 330mm x 330mm x 395mm / 13" x 13" x 15.6"

• Shipping Dimensions (2 units in a master box): 668mm x 338mm x 413mm / 26.3" x 13.3" x 16.3"

• Shipping weight (single unit): 4.10Kg / 9lbs

• Shipping weight (2 units in a Master box): 8.8Kg / 19.4lbs

• Material
  Grill: Black/White Powder Coated Steel, Magnetic, with cloth, paintable, removable logo

• Baffle & back enclosure: V–0 flame–retardant material

• Environmental
  Operating Temperature: –5° to +50°C (23°F to 122°F.)

• Storage Temperature: –10° to +55°C (14°F to 131°F.)

• Humidity: 30% to 85%, RHL non–condensing

• UL2043 Certified: Plenum rated for safe use in air–handling spaces, meeting fire & smoke standards

• U1480A compliant: Safety standards for fire–protective signaling in commercial spaces

REGULATORY

• Safety
  IEC 62368 (CB) / CE LVD: Safety standard for audio equipment addressing risks related to electrical, mechanical, and environmental factors in low–voltage devices

• UL 62368-1: Safety of audio, equipment by addressing potential hazards through risk–based performance criteria for electrical and mechanical systems

• BIS (India): Safety, quality, and performance requirements specific to the Indian market

• RCM: (Regulatory Compliance Mark) electrical safety, electromagnetic compatibility (EMC), and radiofrequency (RF) standards for products in Australia and New Zealand

• EMI
  FCC / IC: Compliance with regulations for electromagnetic interference (EMI) and radio frequency (RF) emissions, ensuring that devices operate safely and do not cause harmful interference

• Environmental: RoHS, REACH, WEEE

Accessories

• In the Box: 1 speaker (single unit)

• In the Box: 2 speakers are packed in a single master box

• In the Box: 1 suspension cable kit

• In the Box: Quick Start Guide
