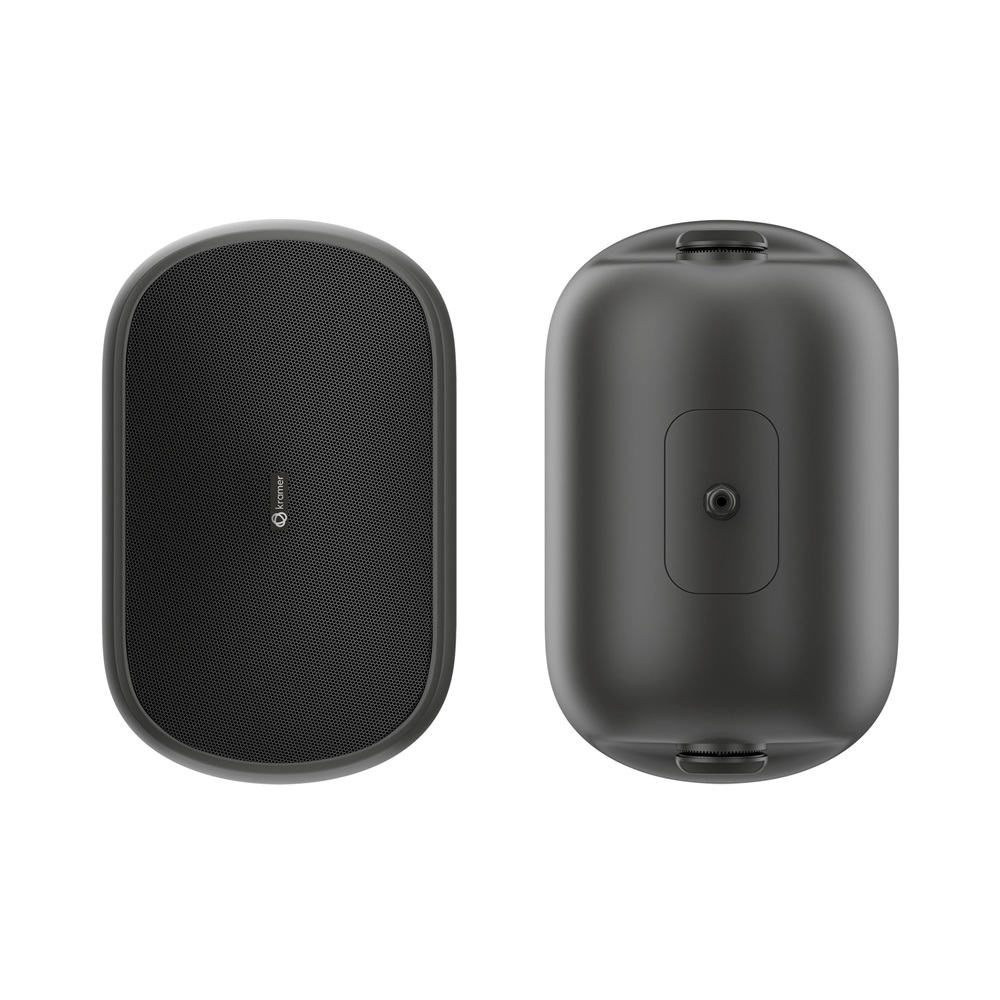

Bộ loa treo tường Passive AW-6P
Mô tả ngắn
Kramer AW-6P All–weather, IP66/UL rated, 6.5” two–way wall mounted passive speaker
All weather, 6.5”, 2–way wall mounted passive speaker
Superb sound with esthetic design
Low–impedance (8Ω) / high–impedance (70V/100V)
Power handling: 30W continuous / 45W peak
IP66 certified for outdoor installations
UL1480A compliant for indoor installations
Available in black & white colors
Hotline: 0918 642 886
Kramer’s AW Series are engineered to deliver exceptional sound performance in both indoor and outdoor environments. The AW−6P is a compact 6.5” high−performance all−weather passive speaker. This UL compliant/IP66−rated all−weather speaker is designed to withstand the elements while providing clear, high−quality audio, making it the perfect solution for mixed installations, in which some of the speakers are outdoor and other are indoor. The speaker supports both 8Ω low impedance as well as several 70V/100V high impedance modes. The speaker is available in both black & white colors.
- IP66 rated for outdoor installations
- UL1480A compliant for indoor installations, made fromV–0 Flame Retardant materials
- Exceptional sound performance
- Low–impedance (8Ω) / high–impedance (70V/100V)
- Power handling: 30 W continuous / 45 W peak
- Sensitivity (1W@1m, free field): 87dB SPL
- Maximum SPL (@1m): Continuous: 102dB SPL / Peak: 104dB SPL
- Industrial design: wall–mounted, tool–less installation, available in black & white colors, removable logo
- Included in the Box — 1 speaker (single unit), 2 speakers are packed in a single master box, 1 mounting bracket + 2 toolless bracket screws, 4–pin pluggable Euroblock connector 28–12AWG, Quick Start Guide
DESCRIPTION
-
All–weather, IP66 certified, UL compliant, 6.5” two–way wall mounted passive speaker. Available in black & white colors
Audio
-
Driver:
LF Driver: 165 mm (6.5”) driver with polypropylene cone and rubber surround -
HF Driver: 25mm (1") soft dome with dampening, ferrofluid — cooled
-
Frequency characteristics
Frequency Range (-10dB): 75Hz–20kHz -
Frequency Response (±3dB): 89Hz–20kHz
-
Dispersion angle: 132 deg. conical dispersion (1 kHz to 4 kHz)
-
Power ratings
@ 8Ω Low impedance: 30W continuous / 45W peak -
@ 100 V High impedance: 30W/15W/7.5W
-
@ 70 V High impedance: 30W/15W/7.5W/3.8W
-
Sound Pressure Level (SPL)
Sensitivity (1W@1m, free field): 87dB SPL -
Maximum SPL: Continuous: 102dB SPL / Peak: 104dB SPL
MECHANICAL
-
Installation
Type: Surface mounted vertical or horizontal -
Mounting: Mounting bracket with toolless bracket screws
-
Connectors: 4–pin pluggable Euroblock connector, 28–12AWG
-
Weight per single speaker: 3.15kg / 6.94lbs
-
Dimensions
Dimensions without Bracket: 201mm x 168mm x 320mm / 7.9” x 6.7” / 12.6” -
Dimensions with Bracket: 201mm x 205mm x 320mm / 7.9” x 8.1” / 12.6
-
Shipping dimensions (single unit): 287mm x 235mm x 385mm / 11.3" x 9.3" x 15.2"
-
Shipping dimensions (2 units in a Master box): 477mm x 296mm x 403mm / 18.8” x 11.7” x 15.9”
-
Shipping weight (single unit): 3.7Kg / 8.2lbs
-
Shipping weight (Master box): 8Kg / 17.6lbs
-
Material
Grill: Aluminum, removable logo -
Baffle: V–0 Flame Retardant
-
Baffle & Back enclosure: V–0 Flame Retardant
-
Bracket: Aluminum
-
Environmental
Operating Temperature: –5° to +50°C (23° to 122°F) -
Storage Temperature: –10° to +55°C (14° to 131°F)
-
Humidity: 30% to 85%, RHL non–condensing
REGULATORY
-
UL1480A Certified: UL 1480A compliant — Safety standards for fire–protective signaling in commercial spaces
-
Environmental
: RoHS, REACH, WEEE -
IP Rating: IP66
Accessories
-
In the Box: 1 speaker (single unit), 2 speakers are packed in a single master box
-
In the Box: 1 mounting bracket + 2 toolless bracket screws
-
In the Box: 4–pin pluggable Euroblock connector, 28–12AWG
-
In the Box: Quick Start Guide
