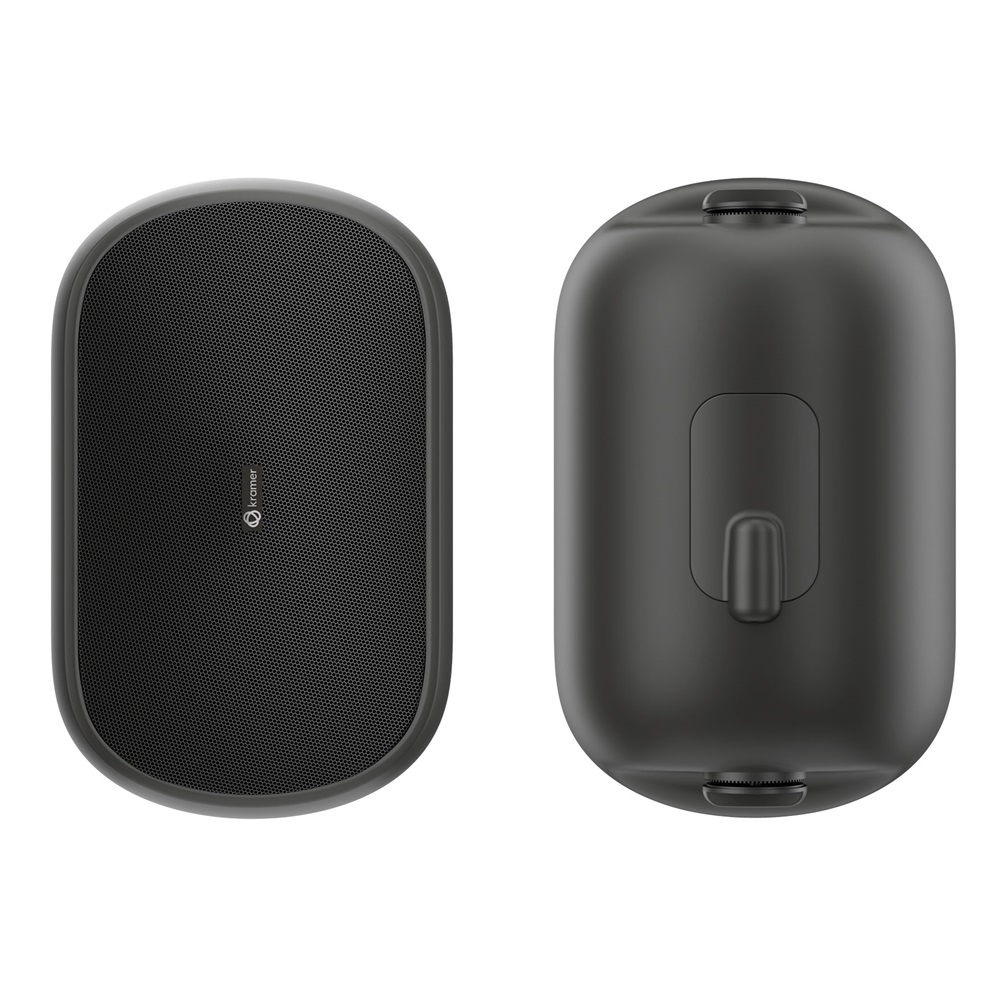

Bộ loa treo tường Dante AW-8D

DESCRIPTION

• All weather, 8”, 2–way wall mounted PoE powered Dante speaker

Audio

• Driver:
  LF Driver: 200 mm (8 in) high output driver with polypropylene cone and rubber surround

• HF Driver: 25 mm (1 in) liquid cooled soft–dome tweeter

• Frequency characteristics
  Frequency Range (-10dB): 70Hz–20kHz

• Frequency Response (±3dB): 88Hz–20kHz

• Dispersion angle: 104 deg. (1 kHz to 4 kHz)

• Power handling:
  PoE++: 10W continuous / 30W peak

• PoE+: 10W continuous / 20W peak

• PoE: 10W continuous / 10W peak

• OCM (Over-Current Protection): Monitors input current and reduces gain to prevent damage

• OSP (Output Shortcut Protection): Shuts down and restarts the amplifier if a shortcut is detected

• Sound Pressure Level (SPL):
  Sensitivity (1W@1m, free field): 91dB SPL

• Maximum SPL: PoE++: Continuous: 101dB / Peak: 106dB

• Maximum SPL: PoE+: Continuous: 101dB / Peak: 104dB

• Maximum SPL: PoE: Continuous: 100dB / Peak: 101dB

Built-in Protection OTM (Over-Temperature Protection)

• Automatically lowers volume if overheating is detected, restoring it once temperature normalizes

MECHANICAL

• Installation
  Type: Surface mounted vertical or horizontal

• Mounting: Toolless mounting bracket

• Connectors: RJ–45, factory reset button

• Dimensions
  Dimensions without Bracket: 251mm x 200mm x 400mm / 9.88” x 7.88” / 15.75”

• Dimensions with Bracket: 251mm x 240mm x 400mm / 9.88” x 9.45” / 15.75”

• Shipping dimensions (single unit): 322mm x 312mm x 467mm / 12.7" x 12.3" / 18.4"

• Shipping dimensions (2 units in a Master box): 630mm x 330mm x 485mm / 24.8" x 13.0" x 19.1"

• Shipping weight (single unit): 4.7Kg / 10.4lbs

• Shipping weight (Master box): 10.2Kg / 22.5lbs

• Material
  Grill: Aluminum, removable logo

• Baffle & back enclosure: V–0 Flame Retardant

• Bracket: Aluminum

• Environmental
  Operating Temperature: –5° to +50°C (23°F to 122°F.)

• Storage Temperature: –10° to +55°C (14°F to 131°F.)

• Humidity: 30% to 85%, RHL non–condensing

Weight per single speaker (including mounting bracket)

• 3.9kg / 8.6lbs

REGULATORY

• Safety
  IEC 62368 (CB) / CE LVD: Safety standard for audio equipment addressing risks related to electrical, mechanical, and environmental factors in low–voltage devices

• UL 62368-1: Safety of audio, equipment by addressing potential hazards through risk–based performance criteria for electrical and mechanical systems

• BIS (India): Safety, quality, and performance requirements specific to the Indian market

• RCM: (Regulatory Compliance Mark) electrical safety, electromagnetic compatibility (EMC), and radiofrequency (RF) standards for products in Australia and New Zealand

• EMI
  FCC / IC: Compliance with regulations for electromagnetic interference (EMI) and radio frequency (RF) emissions, ensuring that devices operate safely and do not cause harmful interference

• Environmental: RoHS, REACH, WEEE

• IP Rating: IP66

Accessories

• In the Box: 1 speaker (single unit), 2 speakers are packed in a single master box

• In the Box: 1 mounting bracket + 2 toolless bracket screws

• In the Box: 1 Silicon Grommet

• In the Box: Quick Start Guide
