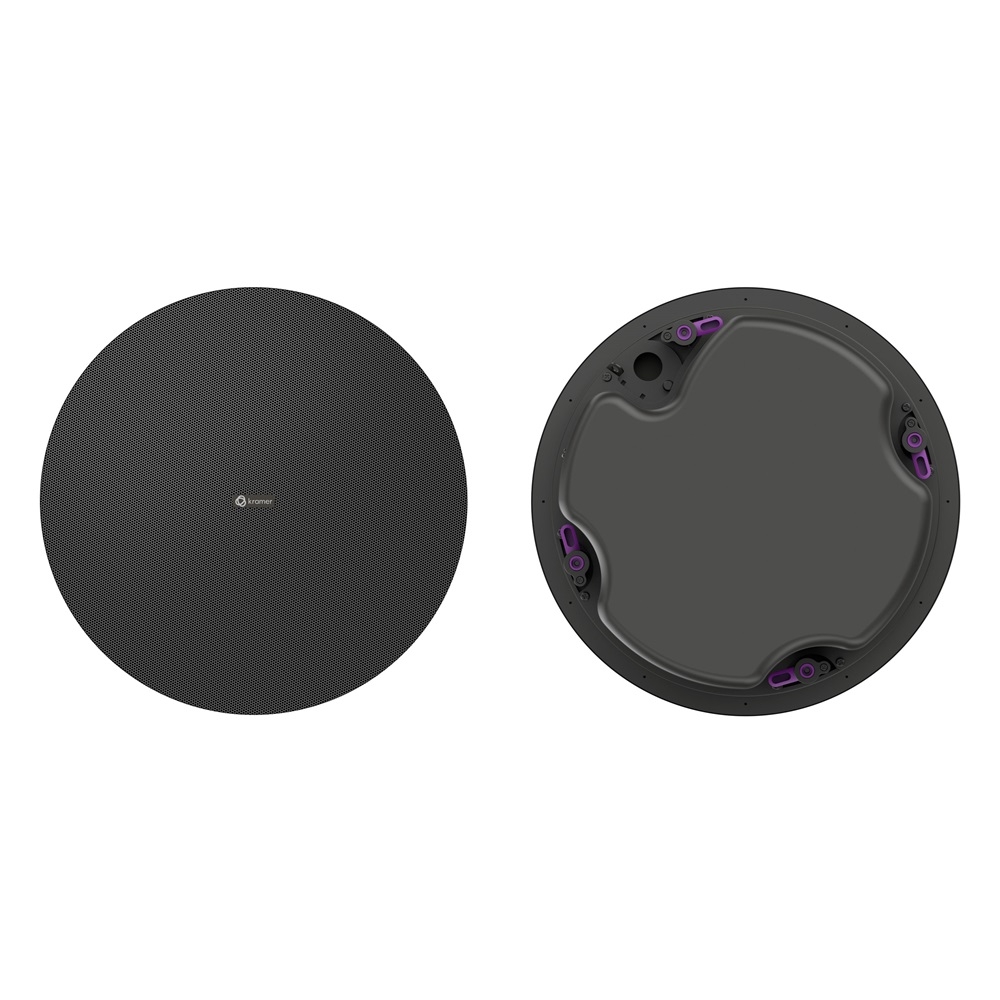

Bộ loa âm trần Passive CL-8P

DESCRIPTION

• 8”, 2–way coaxial passive closed back ceiling speaker with Transformer tap for both low–impedance (8Ω) and high–impedance (70V/100V) modes. White & Black magnetic grills included in the box

Audio

• Driver:
  LF Driver: 200 mm (8 in) with polypropylene cone and rubber surround

• HF Driver: 25 mm (1 in) liquid cooled soft–dome tweeter

• Frequency characteristics
  Frequency Range (-10dB): 55Hz–20kHz

• Frequency Response (±3dB): 70Hz–20kHz

• Dispersion angle: 82 deg. conical dispersion (1 kHz to 4 kHz)

• Power ratings
  @ 8Ω Low impedance: 60W continuous / 90W peak

• @ 100 V High impedance: 60W / 30W / 15W

• @ 70 V High impedance: 60W / 30W / 15W / 7.5W

• Sound Pressure Level (SPL)
  Sensitivity(1W@1m, free field): 90dB SPL

• Maximum SPL: Continuous: 108dB SPL / Peak: 110dB SPL

MECHANICAL

• Installation
  Type: In–ceiling speaker installation with brackets and C–ring

• Mounting: 4–point screw down Dog–Ear clamp, up to 60mm / 2.36” ceiling thickness

• Connectors: 4–pin pluggable Euroblock connector, 28–12AWG

• Cutout: Cutout template included in the box

• Weight per single speaker: 6.23kg (13.7lbs)

• Dimensions
  Depth (ceiling clearance): 270mm / 10.7”

• Back enclosure outer diameter: 295mm / 11.6”

• Cutout diameter: 297mm / 11.7

• Grill diameter: 327mm / 12.9

• Single box dimensions (single unit): 430mm x 430mm x 338mm / 17" x 17" x 13.3"

• Master box dimensions (single unit): 438mm x 438mm x 351mm / 17.3" x 17.3" x 13.9"

• o Master box weight: 9.2KG / 20.3lbs

• Packaging: Eco–friendly mono–material packaging made entirely from recyclable cartons, designed for durability and ease of recycling

• Material
  Grill: Black/White Powder Coated Steel, Magnetic, with cloth, paintable, removable logo

• Baffle: V–0 Flame Retardant

• Back enclosure: Powder–coated steel

• Environmental
  Operating Temperature: –5° to +50°C (23° to 122°F)

• Storage Temperature: –10° to +55°C (14° to 131°F)

• Humidity: 30% to 85%, RHL non–condensing

BALANCED LINE LEVEL INPUT

• Single Box weight: 8.5KG / 18.8lbs

REGULATORY

• Safety
  UL 2043 Certified: Plenum rated for safe use in air–handling spaces, meeting fire and smoke standards

• UL1480A Certified: Meets safety standards for fire–protective signaling in commercial spaces

• Environmental
  : RoHS, REACH, WEEE

In the Box

• 1 speaker (single unit), 1 speaker box packed in a master box

• Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately)

• 2 magnetic grills (1 white and 1 black per speaker)

• 4–pin pluggable Euroblock connector, 28–12AWG

• Cutout template

• Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)

• Quick Start Guide
