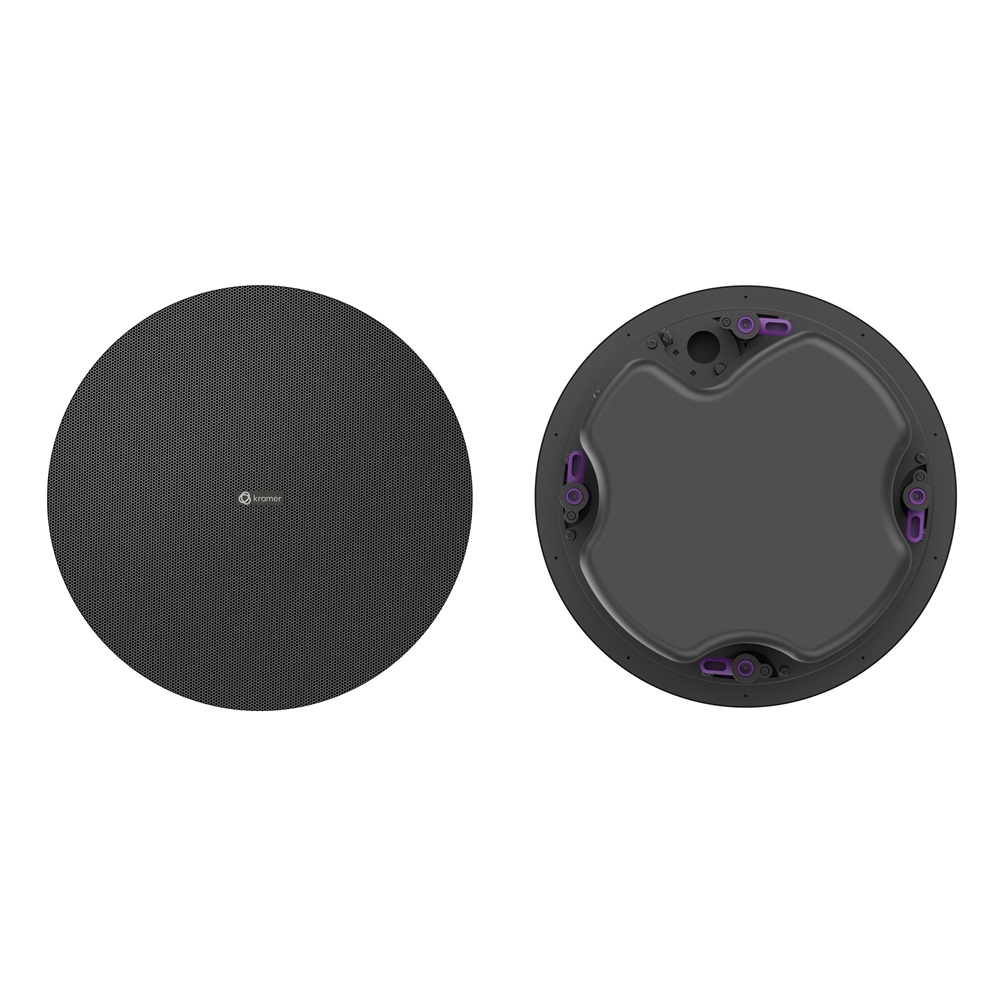

Bộ loa âm trần Passive CL-6P

DESCRIPTION

• 6.5”, 2–way coaxial passive speaker with Transformer tap for both low–impedance (8Ω) and high–impedance (70V/100V) modes. White & Black magnetic grills included in the box

Audio

• Driver:
  LF Driver: 165 mm (6.5 in) high output driver with polypropylene cone and rubber surround

• HF Driver: 19 mm (0.75 in) liquid cooled soft–dome tweeter

• Frequency characteristics
  Frequency Range (-10dB): 70Hz–20kHz

• Frequency Response (±3dB): 80Hz–18kHz

• Dispersion angle: 106 deg. conical dispersion (1 kHz to 4 kHz)

• Power ratings
  @ 8Ω Low impedance: 30W continuous pink noise / 45W continuous program

• @ 100 V High impedance: 30W/15W/7.5W

• @ 70 V High impedance: 30W/15W/7.5W/3.8W

• Sound Pressure Level (SPL)
  Sensitivity (1W@1m, free field): 88dB SPL

• Maximum SPL: Continuous: 103dB SPL / Peak: 105dB SPL

MECHANICAL

• Installation
  Type: In–ceiling speaker installation with brackets and C–ring

• Mounting: 4–point screw down Dog–Ear clamp, up to 60mm / 2.36” ceiling thickness

• Connectors: 4–pin pluggable Euroblock connector, 28–12AWG

• Cutout: Cutout template included in the box

• Weight per single speaker: 3.75kg (8.3lbs)

• Dimensions
  Depth (ceiling clearance): 220mm / 8.66”

• Back enclosure outer diameter: 250mm / 9.84”

• Cutout diameter: 252mm / 9.92”

• Grill diameter: 282mm / 11.1”

• Shipping dimensions (pair + accessories): 720mm x 350mm x 306mm/ 28.4" x 13.8" x 12.1"

• Shipping weight (pair + accessories): 11.6kg (25.6lbs)

• Packaging: Eco–friendly mono–material packaging made entirely from recyclable carton, designed for durability and ease of recycling

• Material
  Grill: Black/White Powder Coated Steel, Magnetic, with cloth, paintable

• Baffle: V–0 Flame Retardant

• Back enclosure: Powder–coated steel

• Environmental
  Operating Temperature: –5° to +50°C (23° to 122°F)

• Storage Temperature: –10° to +55°C (14° to 131°F)

• Humidity: 30% to 85%, RHL non–condensing

REGULATORY

• Safety
  UL 2043 Certified: Plenum rated for safe use in air–handling spaces, meeting fire and smoke standards

• UL1480A Certified: Meets safety standards for fire–protective signaling in commercial spaces

• Environmental
  : RoHS, REACH, WEEE

In the Box

• 1 speaker (single unit), 2 speakers are packed in a single master box

• Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately)

• 2 magnetic grills (1 white and 1 black per speaker)

• 4–pin pluggable Euroblock connector, 28–12AWG

• Cutout template

• Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable)

• Quick Start Guide
