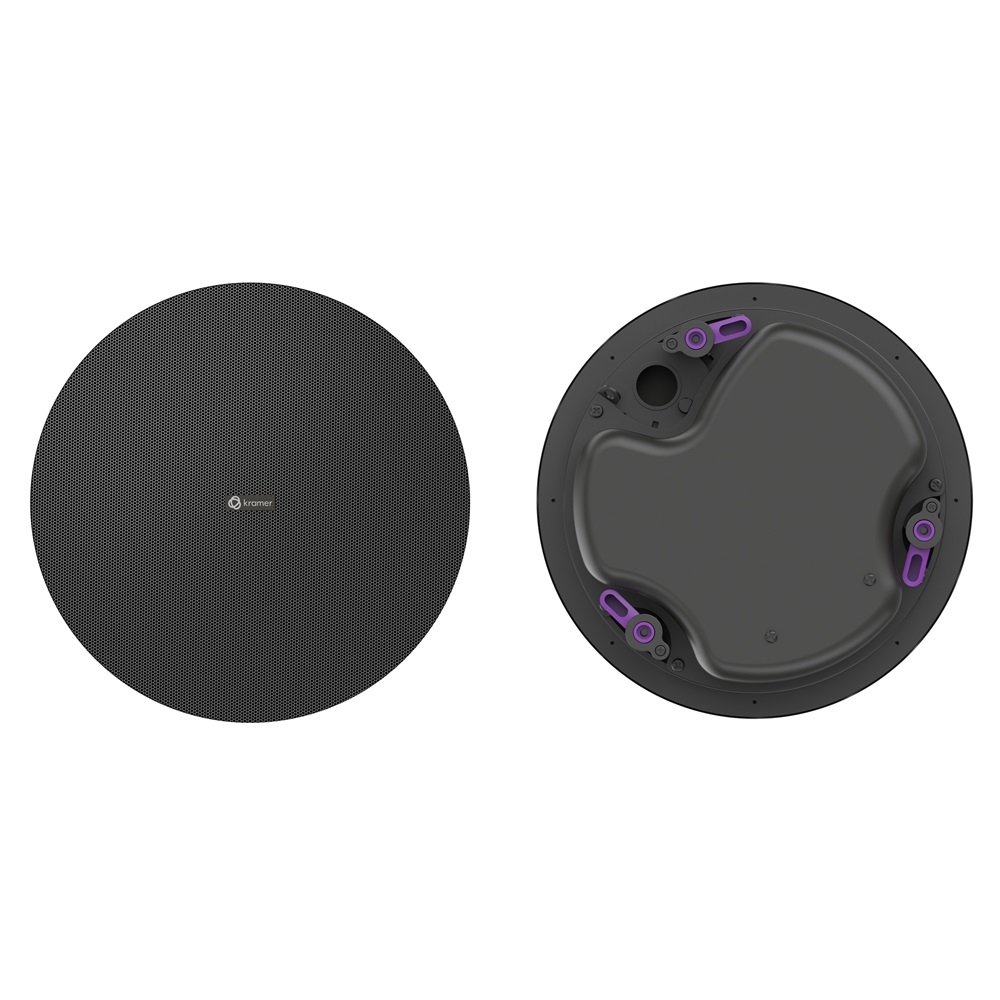

Bộ loa âm trần Passive CL-4P

DESCRIPTION

• 4”, 2–way coaxial passive closed back ceiling speaker with Transformer tap for both low–impedance (8Ω) and high–impedance (70V/100V) modes. White & Black magnetic grills included in the box

Audio

• Driver:
  LF Driver: 100 mm (4”) high output driver with polypropylene cone and rubber surround

• HF Driver: 19 mm (0.75 in) liquid cooled soft–dome tweeter

• Frequency characteristics
  Frequency Range: (–10dB): 90Hz–18kHz

• Frequency Response: (±3dB): 110Hz–18kHz

• Dispersion angle: 125 deg. conical dispersion (1 kHz to 4 kHz)

• Power ratings
  @ 8Ω Low impedance: 20W continues / 30W peak

• @ 100 V High impedance: 20W/10W/5W

• @ 70 V High impedance: 20W/10W/5W/2.5W

• Sound Pressure Level (SPL)
  Sensitivity: (1W@1m, free field): 87dB SPL

• Maximum SPL: Continuous: 100dB SPL / Peak: 102dB SPL

MECHANICAL

• Installation
  Type: In–ceiling speaker installation with brackets and C–ring

• Mounting: 3–point screw down Dog–Ear clamp, up to 60mm / 2.36” ceiling thickness

• Connectors: 4–pin pluggable Euroblock connector, 28–12AWG

• Cutout: Cutout template included in the box

• Weight per single speaker: 2.18kg (4.81lbs)

• Dimensions
  Depth (ceiling clearance): 100mm / 4”

• Back enclosure outer diameter: 203mm / 8”

• Cutout diameter: 205mm / 8.1”

• Grill diameter: 327mm / 9.1”

• Shipping
  Shipping dimensions (single unit): 320mm x 320mm x 166mm / 12.6" x 12.6" x 6.6"

• Shipping dimensions (2 units in a Master box): 330mm x 330mm x 348mm / 13.0" x 13.0" x 13.7"

• Shipping weight (single unit): 3.28KG / 7.23lbs

• Shipping weight (2 units in a Master box): 6.95KG / 15.4lbs

• Packaging
  : Eco–friendly mono–material packaging made entirely from recyclable carton, designed for durability and ease of recycling

• Material
  Grill: Black/White Powder Coated Steel, Magnetic, with cloth, paintable, removable logo

• Baffle: V–0 Flame Retardant

• Back enclosure: Powder–coated steel

• Environmental
  Operating Temperature: –5° to +50°C (23° to 122°F)

• Storage Temperature: –10° to +55°C (14° to 131°F)

• Humidity: 30% to 85%, RHL non–condensing

REGULATORY

• Safety
  UL 2043 Certified: Plenum rated for safe use in air–handling spaces, meeting fire and smoke standards

• UL1480A Certified: Meets safety standards for fire–protective signaling in commercial spaces

• Environmental
  : RoHS, REACH, WEEE

In the Box

• 1 speaker (single unit), 2 speakers are packed in a single master box, Installation kit including and C–ring and bolts (mounting rails are not included and should be purchased separately), 2 magnetic grills (1 white and 1 black per speaker), 4–pin pluggable Euroblock connector, 28–12AWG, Cutout template, Accessories (bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable), Quick Start Guide
