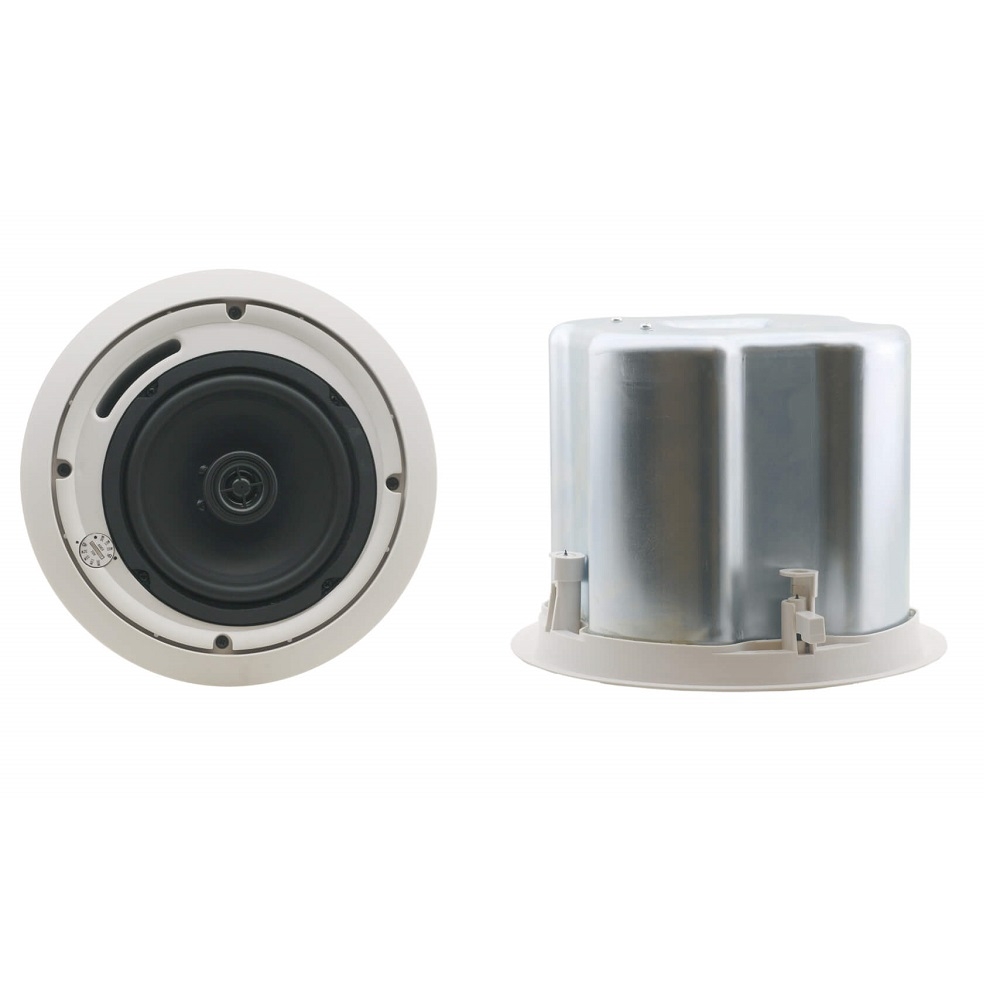

Bộ loa âm trần Galil 6-C
Mô tả ngắn
UL Listed
Woofer — 6.5” polypropylene cone
Tweeter — 0.5” Mylar dome
Impedance — 8Ω
Power Handling — 30W RMS, 80W Continuous
Transformer Taps — 70/100V
2 Speakers (1 Pair)
Hotline: 0918 642 886
The Galil 6−C (formerly SPK−C612) Closed−back Ceiling Speaker features a multi−tap power transformer for selecting 8Ω (bypassing the transformer) or 70V/100V power settings that are suitable for an array installation.
- Type — 2–way coaxial speaker.
- Woofer — 6.5” polypropylene cone.
- Tweeter — 0.5” Mylar dome.
- Impedance — 8Ω.
- Power Handling — 30W RMS, 80W continuous program.
- Transformer Taps — 70V: 30W/15W/7.5W/3.7W/Off (Lo–Z); 100V: 30W/15W/7.5W/Off (Lo–Z).
- UL 1480 & 2043 Listed
- Package Includes — 2 speakers (1 pair), ceiling mounting kit, template and user manual.
DESCRIPTION
-
2–way closed–back ceiling speakers
FREQUENCY RESPONSE
-
80Hz to 20kHz @ — 10dB, 95Hz to 20kHz @ ±3dB
WOOFER
-
6.5” (165mm) polypropylene with rubber surround
TWEETER
-
0.5” (13mm) Mylar dome
IMPEDANCE
-
8Ω (transformer tap in off position)
TRANSFORMER TAPS
-
70V — 3.7W/7.5W/15W/30W/Off (Lo–Z), 100V — 7.5W/15W/30W/Off (Lo–Z)
SENSITIVITY
-
87dB SPL, 1W @1m
MAX SPL
-
Continuous: 100.7dB, peak: 103.7dB
POWER HANDLING
-
30W RMS, 80W continuous program
CROSSOVER FREQUENCY
-
9.2kHz
COVERAGE ANGLE
-
101°
DIRECTIVITY FACTOR (Q)
-
7.5 averaged 1kHz to 10kHz
DIRECTIVITY INDEX (DI)
-
8.6dB averaged 1kHz to 10kHz
INPUT CONNECTOR
-
Terminal block
MATERIALS
-
ABS bezel, aluminum grill, metal back can
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
WEIGHT PER SINGLE SPEAKER
-
2.85kg (6.28lbs) approx
