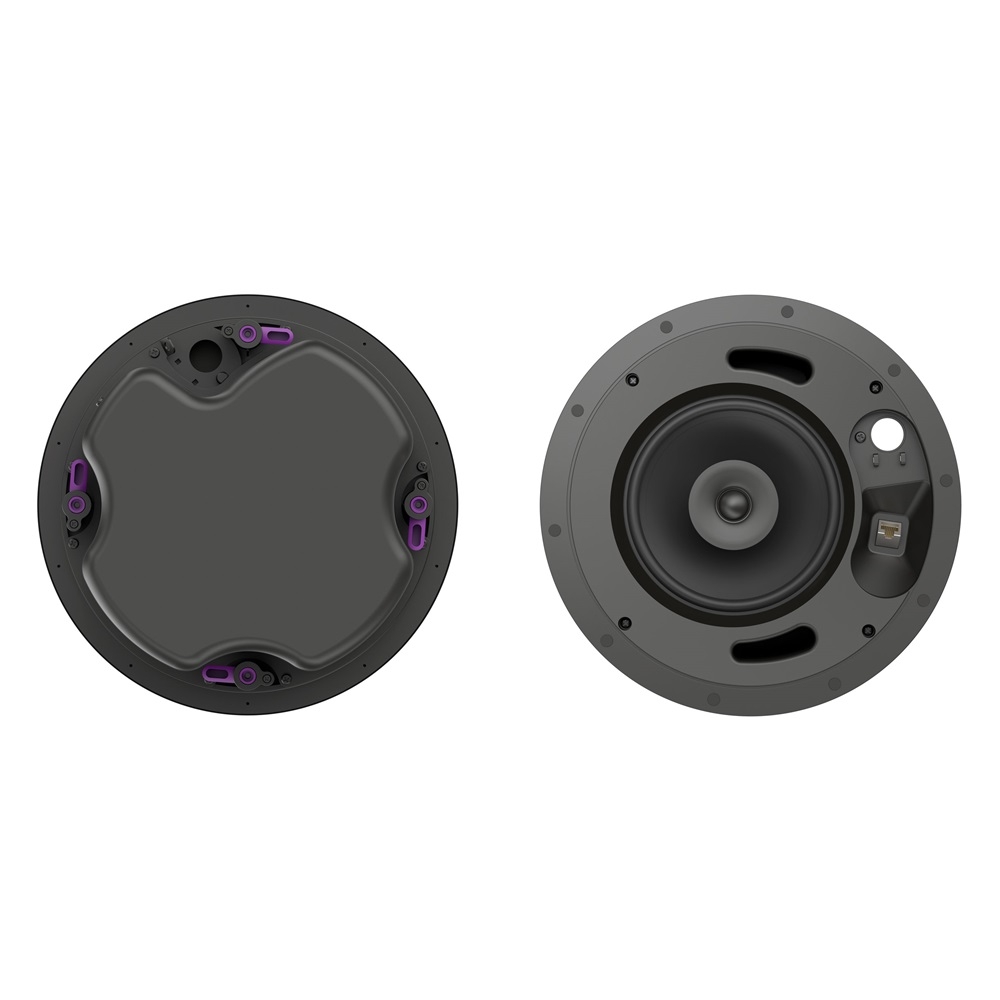

Bộ loa âm trần Dante CL-6D
Mô tả ngắn
Kramer CL-6D 6.5" 2-way Co-Axial, POE powered, Dante, in - ceiling speaker
Superb sound with esthetic design
Power handling: 10W continuous / 30W peek
Nominal sensitivity (1W @ 1m free field): 88dB SPL
Maximum SPL: Continuous 100dB SPL / Peak 103dB SPL
Regulatory compliance: IEC62368(CB)/ CE LVD, UL62368–1, FCC/IC, BIS, RCM, RoHS, REACH, WEEE
Black & white magnetic grills included in the box
Front–access wiring for easy installation & troubleshooting
Eco–friendly packaging
Hotline: 0918 642 886
Kramer’s CL-6D is a premium 6.5” in−ceiling PoE−powered Dante speaker, engineered to deliver exceptional audio performance and effortless integration in modern commercial spaces. Optimized for both speech intelligibility and high−quality background music, the CL−6D is perfectly suited for meeting rooms, auditoriums, retail spaces, and hospitality environments.
Equipped with a built−in amplifier, DSP, and mixer, the CL−6D supports two−channel mixing and advanced tuning capabilities including parametric EQ, high−pass/low−pass filters, input compression, output limiting, power management, and a “Find Me” tone—easily configured through Kramer’s intuitive Speaker Utility software.
To streamline installation and servicing, the CL−6D features front−access wiring, a reset button, and is supplied with both black and white magnetic grilles to blend seamlessly into any ceiling. The CL−6D also supports remote management and control via Kramer Control or third−party systems using its robust API.
- Exceptional sound performance
- Complies with UL1480A for indoor installations (made from V–0 flame retardant materials)
- Supports PoE++/PoE+/PoE (auto–negotiate)
- Built–in mixer, DSP, and amplifier for two–channel mixing, parametric EQ, High pass and low pass filters, input compressor, output limiter and advanced power settings
- Features a built–in “Find Me” tone, making it easy to identify and locate individual speakers during installation or maintenance.
- Power handling: 10W continuous / 30W peak
- Sound Pressure Level (SPL): — Sensitivity (1W@1m, free field): 90dB SPL
Maximum SPL: Continuous: 100dB SPL / Peak: 105dB SPL
- Regulatory compliance: — IEC62368(CB) / CE LVD, UL62368–1
FCC+IC, BIS, RCM
RoHS, REACH, WEEE
- Industrial design: — wall–mounted, tool–less installation, available in black & white colors, removable logo
- The CL–6D PoE–powered Dante in–ceiling speaker is a premium audio solution designed for professional networked audio installations. It delivers high–performance sound with excellent speech clarity and background music reproduction, making it ideal for meeting rooms, auditoriums, and commercial spaces where quality, flexibility, and clean ceiling integration are essential.
- Included in the box: — 1 speaker (single unit), 2 speakers are packed in a single master box
Installation kit including C–ring, bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable (mounting rails (CSMR) are not included and should be purchased separately)
2 magnetic grills (1 white and 1 black per speaker)
Cutout template
Quick Start Guide
DESCRIPTION
-
Premium 6.5” In–Ceiling PoE Powered Dante Speaker
Audio
-
Driver:
LF Driver: 165 mm (6.5 in) high output driver with polypropylene cone and rubber surround -
HF Driver: 19 mm (0.75 in) liquid cooled soft–dome tweeter
-
Frequency characteristics
Frequency Range (-10dB): 70Hz–20kHz -
Frequency Response (±3dB): 80Hz–18kHz
-
Dispersion angle: 106deg. (1 kHz to 4 kHz)
-
Power handling:
PoE++: 10W continuous / 30W peak -
PoE+: 10W continuous / 20W peak
-
PoE: 10W continuous / 10W peak
-
Sound Pressure Level (SPL):
Sensitivity (1W@1m, free field): 88dB SPL -
Maximum SPL: PoE++: Continuous: 98dB / Peak: 103dB
-
Maximum SPL: PoE+: Continuous: 98dB / Peak: 101dB
-
Maximum SPL: PoE: Continuous: 98dB / Peak: 98dB
MECHANICAL
-
Installation
Type: In–ceiling speaker installation with brackets and C–ring -
Mounting: 4–point screw down Dog–Ear clamp, up to 60mm / 2.36” ceiling thickness
-
Connectors: RJ–45, factory reset button
-
Cutout: Cutout template included in the box
-
Weight per single speaker: 3.5kg (7.7lbs)
-
Dimensions
Depth (ceiling clearance): 220mm / 8.7” -
Back enclosure outer diameter: 250mm / 9.9”
-
Cutout diameter: 252mm / 9.92”
-
Grill diameter: 282mm / 11.1”
-
Shipping dimensions (single unit): 400mm x 400mm x 298mm / 15.8" x 15.8" x 11.8"
-
Shipping dimensions (2 units in a Master box): 410mm x 410mm x 618mm / 16.2" x 16.2" x 24.4"
-
Shipping weight (single unit): 5.1Kg / 11.3lbs
-
Shipping weight (2 units in a Master box): 10.9Kg / 24lbs
-
Material
Grill: Black/White Powder Coated Steel, Magnetic, with cloth, paintable, removable logo -
Baffle: V–0 Flame Retardant
-
Back enclosure: Powder–coated steel
-
Environmental
Operating Temperature: –5° to +50°C (23°F to 122°F.) -
Storage Temperature: –10° to +55°C (14°F to 131°F.)
-
Humidity: 30% to 85%, RHL non–condensing
-
UL2043 Certified: Plenum rated for safe use in air–handling spaces, meeting fire & smoke standards
-
U1480A compliant: Safety standards for fire–protective signaling in commercial spaces
BALANCED LINE LEVEL INPUT
-
Packaging: Eco–friendly mono–material packaging made entirely from recyclable cartons, designed for durability and ease of recycling
REGULATORY
-
Safety
IEC 62368 (CB) / CE LVD: Safety standard for audio equipment addressing risks related to electrical, mechanical, and environmental factors in low–voltage devices -
UL 62368-1: Safety of audio, equipment by addressing potential hazards through risk–based performance criteria for electrical and mechanical systems
-
BIS (India): Safety, quality, and performance requirements specific to the Indian market
-
RCM: (Regulatory Compliance Mark) electrical safety, electromagnetic compatibility (EMC), and radiofrequency (RF) standards for products in Australia and New Zealand
-
EMI
FCC / IC: Compliance with regulations for electromagnetic interference (EMI) and radio frequency (RF) emissions, ensuring that devices operate safely and do not cause harmful interference -
Environmental: RoHS, REACH, WEEE
Accessories
-
In the Box: 1 speaker (single unit), 2 speakers are packed in a single master box
-
In the Box: Installation kit including C–ring, bracket bolts, UL cable passthrough, Silicon cable passthrough, zip tie for securing the speaker cable (mounting rails (CSMR) are not included and should be purchased separately)
-
In the Box: 2 magnetic grills (1 white and 1 black per speaker)
-
In the Box: Cutout template
-
In the Box: Quick Start Guide
