Bộ loa treo tường Active Tavor 6-O
Mô tả ngắn
Kramer Tavor 6-O 6.5–Inch, On–Wall 2–Way Powered Speakers
-
Indoor System
-
Woofer — 6.5"
-
Tweeter — 1"
-
Impedance — 4Ω
-
Freq — 50Hz to 20kHz
-
Volume Control
Hotline: 0918 642 886

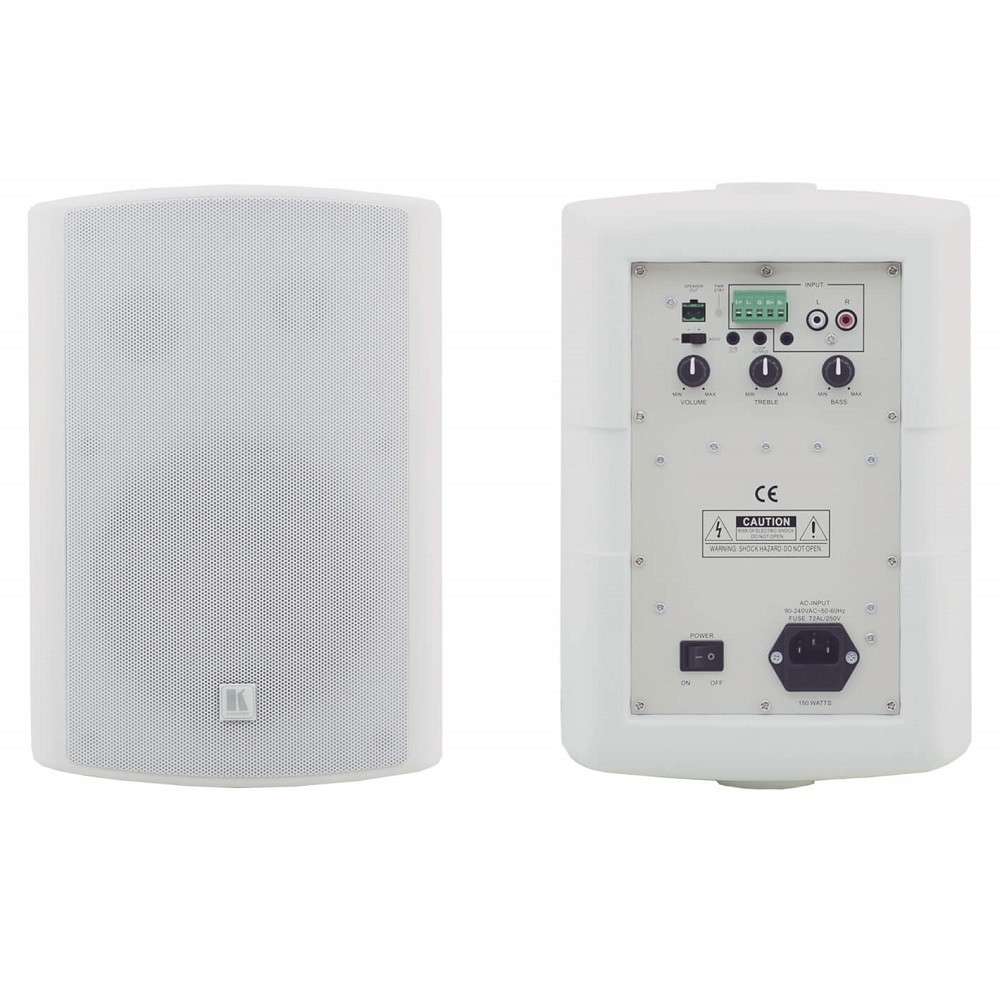

The Tavor 6−O is a pair of 6.5−inch powered two−way speakers designed for indoor wall mounting. The active speaker accepts a line−level stereo input and amplifies it using a built−in amplifier and outputs a speaker signal to the passive speaker.
- Active Loudspeaker — Stereo 2x50W RMS, 2x140W continuous program built–in power amplifier.
- Inputs — 1 unbalanced RCA, 1 unbalanced 3.5mm mini jack, 1 balanced on terminal block.
- Audio Level Controls — Volume, treble and bass.
- Magnetically Shielded.
- Enhanced Bass Reflex.
- Auto Power — Shuts off when system is not in use, indicated by a LED.
- Automatic Input Voltage Selector — 90 to 240V AC, 50 to 60Hz.
- Indoor Wall Mounting.
- Mounting Configuration — Active speaker: left, passive speaker: right.
- Weight (Single Speaker) — Active speaker 3.6kg (7.92lbs) approx., passive speaker 2.7kg (5.94lbs) approx.
- Package — 2 speakers (1 pair); 1 pair of U–shaped rotating mounting brackets with 4 mounting knobs; 4m (13.12ft) power cord; 4m (13.12ft) loudspeaker cable; 2m (6.6ft) 3.5mm to 2 RCA cable.
DESCRIPTION
-
2–way powered speaker
BUILT-IN POWER AMPLIFIER
-
2 X 50W RMS, 2 X 140W continuous program
FREQUENCY RESPONSE
-
45Hz to 20kHz @–10dB, 50Hz to 20kHz @±3dB
WOOFER
-
6.5” polypropylene cone with rubber edge woofer
TWEETER
-
1” silk dome tweeter
SENSITIVITY
-
85dB SPL, 1W@1m
MAX SPL
-
Continuous: 100dB, peak:108dB
POWER SOURCE
-
90–240V AC 50/60Hz
IMPEDANCE
-
4Ω
CROSSOVER FREQUENCY
-
8kHz
DIRECTIVITY FACTOR (Q)
-
7.5 averaged 1kHz to 10kHz
DIRECTIVITY INDEX (DI)
-
8.7dB averaged 1kHz to 10kHz
INPUT CONNECTORS
-
Line level unbalanced stereo audio on a 3.5mm mini jack, line level balanced stereo audio on a terminal block connector, line level unbalanced stereo audio on left and right RCA connectors
OUTPUT CONNECTORS
-
Speaker (to connect to the external passive speaker), 3.5mm mini jack line out for optional sub–woofer, 3.5mm mini jack loop output
DISPERSION COVERAGE
-
Vertical: 54 degrees @2000Hz, horizontal:65deg @2000Hz
DAMPING FACTOR
-
19 @4Ω/1000Hz
S/N RATIO
-
80–90dB
THD
-
≦0.15%
CONTROLS
-
Volume, bass and treble
INPUT POWER
-
ON or AUTO
STANDBY MODE POWER CONSUMPTION
-
0.5W
INPUT LEVEL FOR SYSTEM “WAKE-UP” FROM STANDBY MODE
-
12mV
MATERIALS
-
Aluminum grill, steel brackets, ABS cabinet
WEIGHT PER SINGLE SPEAKER
-
Active speaker: 3.6kg (7.93lbs) approx
PASSIVE SPEAKER
-
2.7kg (5.93lbs) approx
-
3.2kg (7.05lbs) approx
WEIGHT WITH MOUNTING KIT
-
Active speaker: 4.2kg (9.25lbs) approx
DIMENSIONS WITH MOUNTING BRACKETS
-
21cm x 25cm x 32cm (8.3” x9.8” x12.6”) W, D, H
INSTALLATION CLEARANCE
-
25cm (9.8”) — front panel to wall (with mounting bracket)
-
6.3cm (2.5”) — back panel to wall (with mounting bracket)
OPERATING TEMPERATURE
-
–15° to +70°C (5° to 158°F)
STORAGE TEMPERAURE
-
–30° to +55°C (–22° to 131°F)
HUMIDITY
-
25% to 90%, RHL non–condensing
ACCESSORIES
-
1 pair of U–shaped rotating mounting brackets with 4 mounting knobs, 4m (13.12ft) power cord, 4m (13.12ft) loudspeaker cable, 2m (6.6ft) 3.5mm to 2 RCA cable
COLORS
-
Available in black and white
