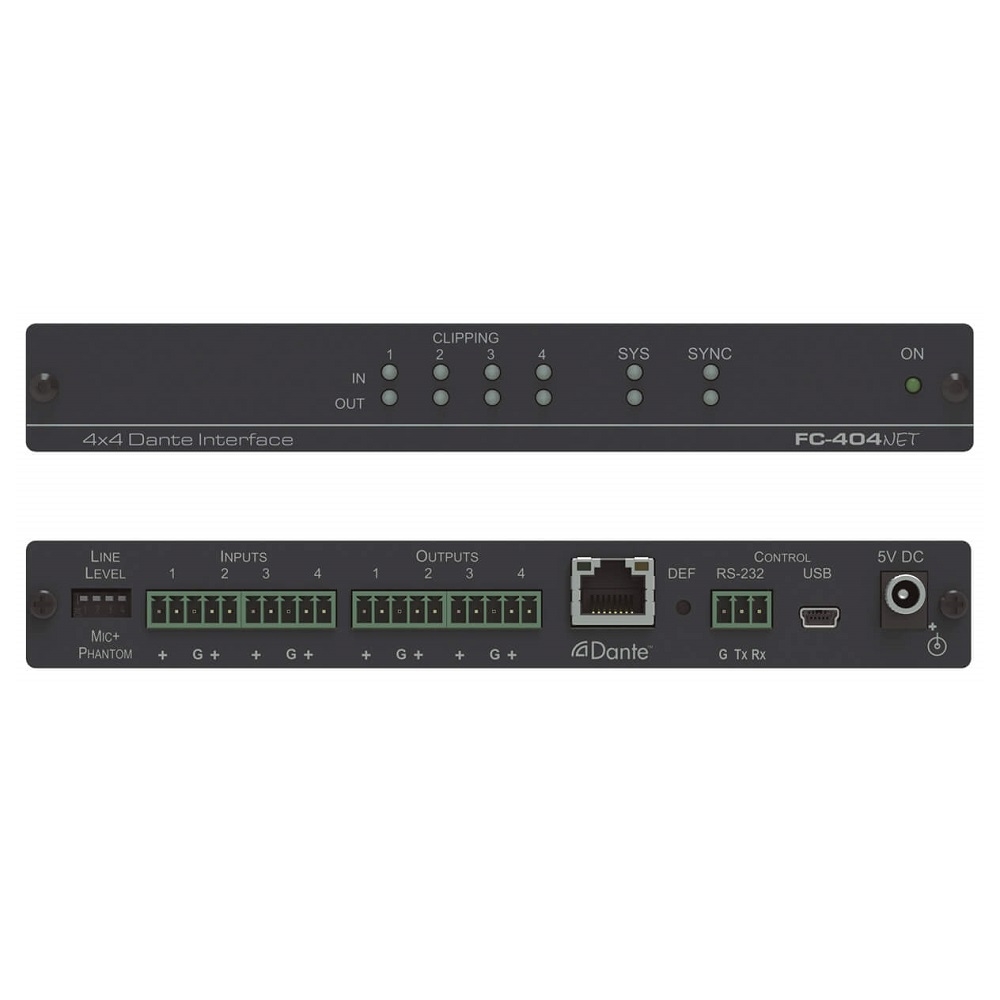

Ma trận âm thanh Dante 4x4 FC-404Net
Mô tả ngắn
4X4 Dante Interface
Volume Settings — Input gain/output volume per channel
Input Settings — DIP–switch input settings — line level (0db) or mic level (+20dB) with phantom +48 volts.
Control — Dante IP control matrix and Kramer Protocol 3000 Managed by Kramer Network
Hotline: 0918 642 886
FC−404Net is a four−input/four−output Dante™ interface with line or microphone level inputs and line level outputs. It connects analog inputs to a digital Dante network or outputs four channels from a Dante network.
-
- Dante Network Interface.
-
- Inputs — 4 balanced mono audio on terminal blocks.
-
- Outputs — 4 balanced mono audio on terminal blocks.
-
Volume Settings — Independent input gain/output volume settings per channel.
-
- Selectable Input Settings — DIP–switch controlled input settings — line level (0db) or mic level (+20dB) with phantom +48 volts.
-
- Versatile Control — Via the Dante IP control matrix and Kramer Protocol 3000 via RS–232 connection.
INPUTS
-
4 balanced mono audio on terminal blocks
OUTPUTS
-
4 balanced mono audio on terminal blocks
PORTS
-
1 Dante network on RJ–45 connector, 1 RS–232 on a three–pin terminal block, 1 USB mini connector (not used)
INDICATOR LEDS
-
On, In/Out Clipping, Sys, Sync
CONTROLS
-
Line/mic+phantom DIP–switches, factory reset button
BALANCED INPUT LEVEL MAX
-
3.2Vpp @ 0dB in/out gain and 0dB output volume
FREQUENCY RESPONSE
-
20Hz to 20kHz @1dB
THD+N
-
<0.008% @1kHz at maximum level
S/N RATIO
-
>85dB
CROSSTALK
-
<80dB
INPUT GAIN ADJUSTMENT
-
–12dB to +60dB
OUTPUT GAIN ADJUSTMENT
-
–78dB to +9dB
INPUT IMPEDANCE
-
10kΩ balanced
OUTPUT IMPEDANCE
-
50Ω balanced
MIC PHANTOM POWER
-
+48V DC =/ — 10%
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
POWER CONSUMPTION
-
5V DC, 850mA max
INCLUDED ACCESSORIES
-
Power supply
