Bộ loa âm trần Galil 4-CO
Mô tả ngắn
Kramer Galil 4-CO 4–Inch, 2–Way Open–Back Ceiling Speakers
-
Woofer — 4"
-
Tweeter — 0.5"
-
Impedance — 8Ω
-
Freq Response — 60Hz to 20kHz
-
2 Speakers (1 Pair)
Hotline: 0918 642 886

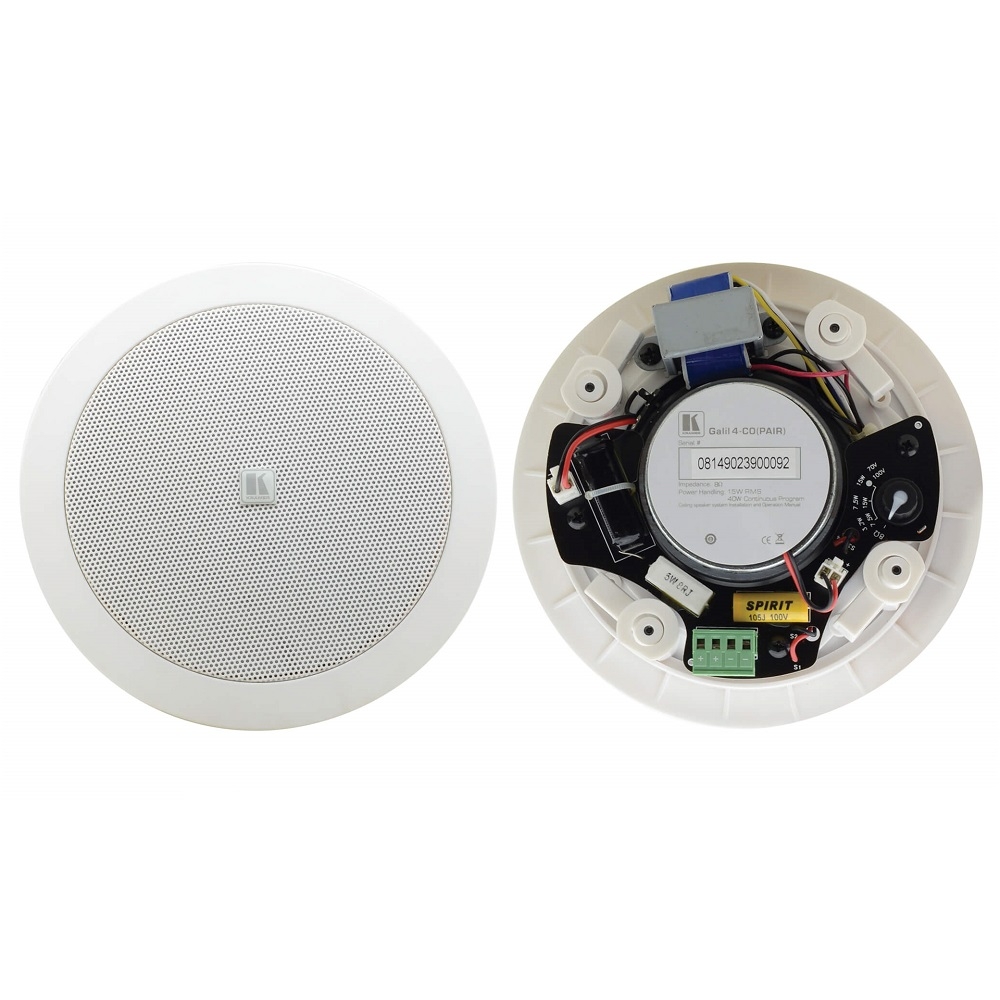

The Galil 4−CO is a pair of two−way, open−back, 8Ω speakers designed for mounting in the ceiling. The speakers feature a multi−tap power transformer for selecting 8Ω or 70V/100V power settings suitable for array installation.
-
- Type — 2–way coaxial speaker.
-
- Woofer — 4" polypropylene cone.
-
- Tweeter — 0.5” Mylar dome.
-
- Frequency Response — 80Hz to 20kHz@ ±3dB.
-
- Impedance — 8Ω.
-
- Power Handling — 15W RMS, 40W continuous program.
-
- Transformer Taps — 70V: 15W/7.5W/3.7W/Off (Lo–Z); 100V: 15W/7.5W/Off (Lo–Z).
-
- Package Includes — 2 speakers (1 pair), cutout template and user manual.
-
- Mounting Bracket (Optional) — SKIC–4.
DESCRIPTION
-
2–way open–back ceiling speakers
FREQUENCY RESPONSE
-
60Hz to 20kHz @–10dB, 80Hz to 20kHz @±3dB
WOOFER
-
4” (103mm) polypropylene with rubber surround
TWEETER
-
0.5” (13mm) Mylar
IMPEDANCE
-
8Ω (transformer tap in off position)
TRANSFORMER TAPS
-
70V–15W/7.5W/3.7W/Off (Lo–Z), 100V–15W/7.5W/Off (Lo–Z)
SENSITIVITY
-
83dB SPL, 1W@1m
MAX SPL
-
Continuous: 95dB
-
peak: 98dB
POWER HANDLING
-
15W RMS, 40W continuous program
CROSSOVER FREQUENCY
-
13kHz
COVERAGE ANGLE
-
104°
DIRECTIVITY FACTOR (Q)
-
8 averaged 1kHz to 10kHz
DIRECTIVITY INDEX (DI)
-
9dB averaged 1kHz to 10kHz
INPUT CONNECTOR
-
Terminal block
MATERIALS
-
Frame, aluminum grill, safety cord attached to grill
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
WEIGHT PER SINGLE SPEAKER
-
0.95kg (2.09lbs) approx
INSTALLATION CLEARANCE
-
Mounting depth: 6.82cm (2.7”)
INCLUDED ACCESSORIES
-
Cutout template
OPTIONAL
-
SKIC–4 installation bracket
COLORS
-
Available in white
