Bộ chia và khuếch đại audio VM-1110xl
Mô tả ngắn
Level Controls
S/N Ratio — 89.3dB
XLR Connectors
Size — Standard 19" (1U). Rack "ears" included.
Hotline: 0918 642 886

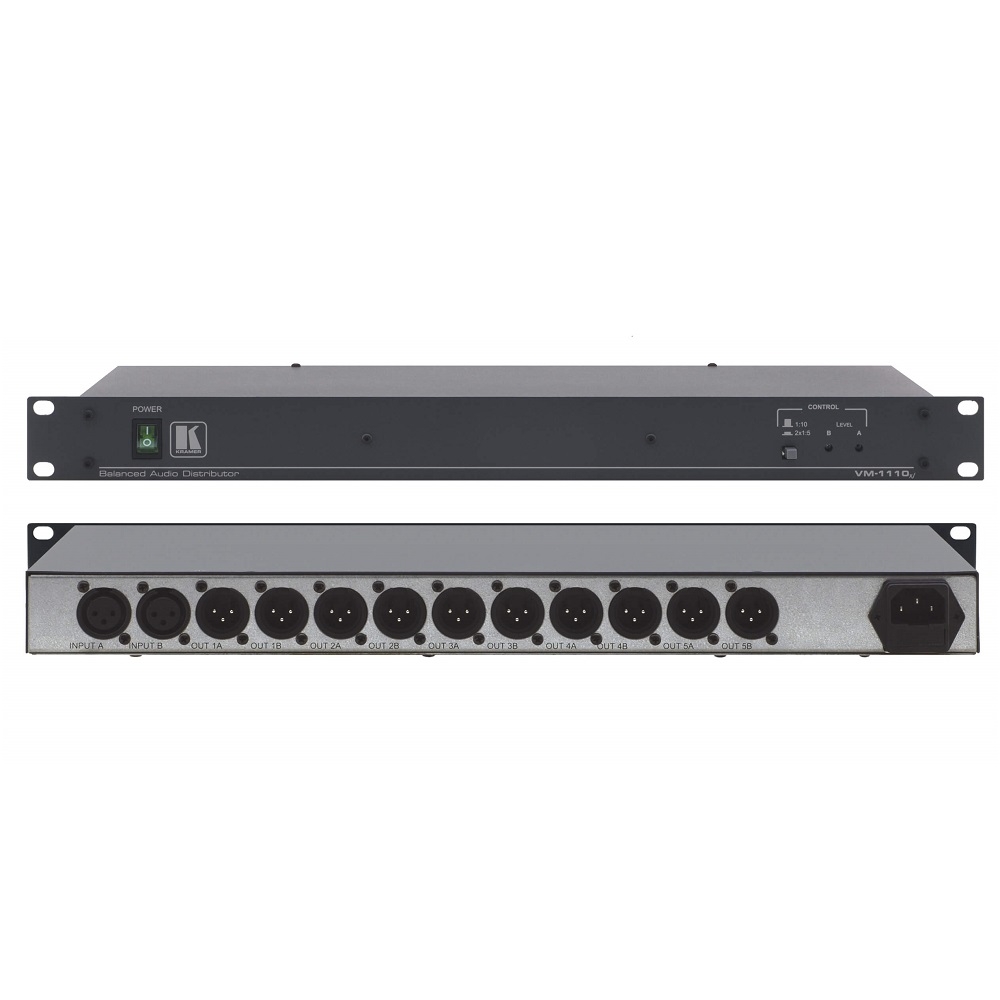

The VM-1110xl is a high-performance distribution amplifier for balanced mono audio signals on XLR connectors. It can also be configured as a 1:5 distribution amplifier for stereo balanced audio signals.
- - Level (Gain) Controls.
- - Dual Mode — Configure as 1:10 (mono) or 1:5 (stereo) DA.
- - S/N Ratio — 89.3dB.
- - Standard 19” Rack Mount Size — 1U.
INPUTS
-
2 balanced stereo audio, +4dBu/50kΩ on XLR (F) connectors
OUTPUTS
-
10 balanced stereo audio, +4dBu/50Ω on XLR (M) connectors
MAX. OUTPUT LEVEL
-
23.8Vpp
BANDWIDTH (-3DB)
-
>100kHz
S/N RATIO
-
89.3dB
CROSSTALK
-
–78dB
CONTROLS
-
Level (x2): — 0.7dB to +5.1dB, mode selector switches
COUPLING
-
AC (input)
-
DC (output)
AUDIO THD + NOISE
-
0.081%
AUDIO 2ND HARMONIC
-
0.006%
POWER CONSUMPTION
-
230V AC, (115V AC USA), 6VA
INCLUDED ACCESSORIES
-
Power cord
