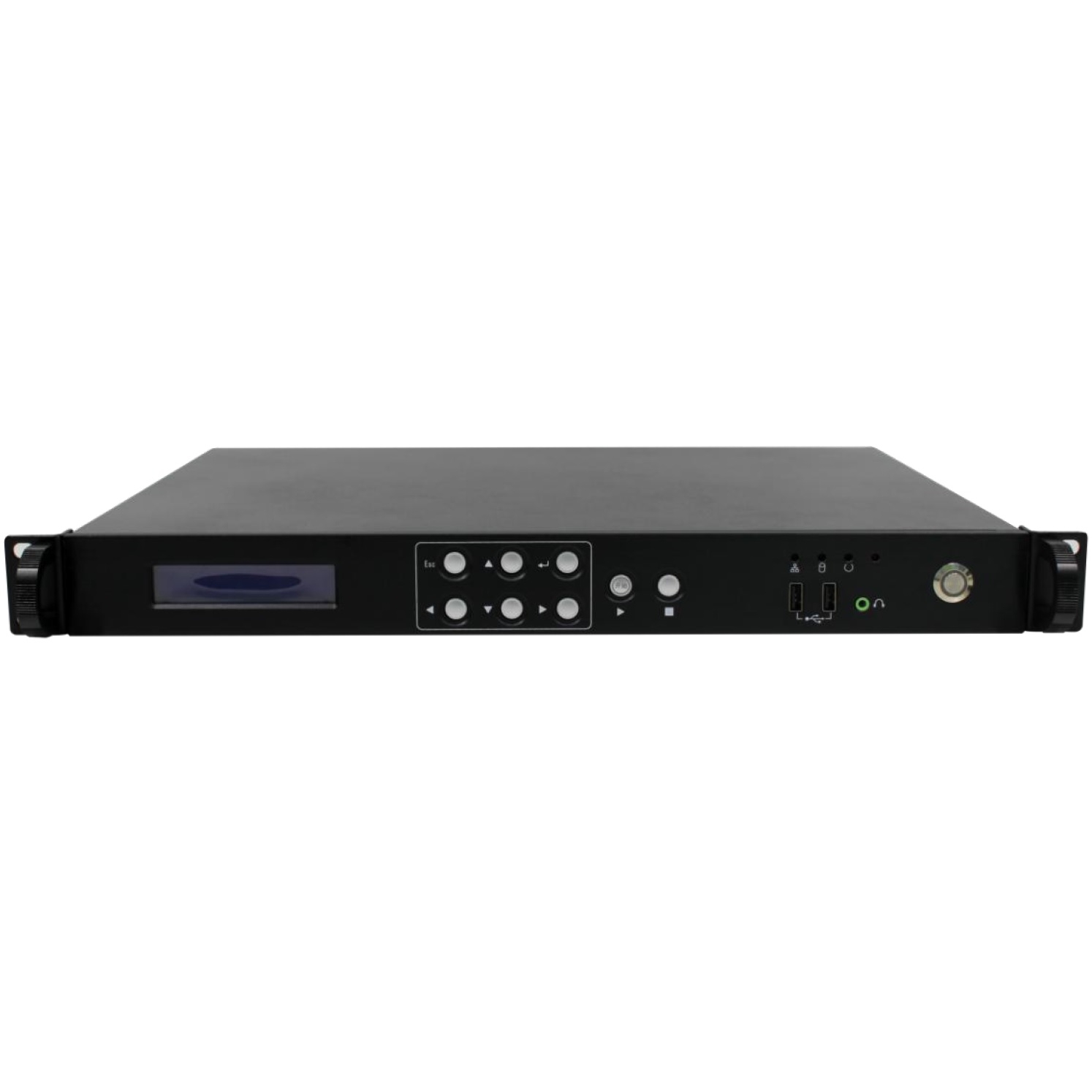

Thiết bị ghi hình K3160T0-K3151T0

Thiết bị ghi hình K3160T0-K3151T0

Mô tả ngắn

Embedded Recorder All-in-One design

Multiple Input interface

Support the seamless switching

Support at least 3 film image HDMI output

Support at least 1 HDMI image loop-out

2x 1000Base-T RJ-45 port

liên hệ mua hàng
Hotline: 0918 642 886

Features:


Embedded All-in-One design
ensure the system stability, integrated with function of A/V encoding, recording, storage, streaming, director, VOD, switching

Multiple Input interface
Equipped with 5x 3G/HD-SDI input + 3x HDMI+1 VGA

Support the seamless switching
6 channel 1080p25/30/50/60 HD input signal, including 5 HD-SDI +
1 VGA signal

Support at least 3 film image HDMI output
one for director image(film channel) output to projection, or large screen directly without delay,  one for displaying local director operation interface

Support at least 1 HDMI image loop-out

2x 1000Base-T RJ-45 port
one of which is with function of remote network management, including remote power on/off from resource platform, and FTP upload

with 3.2 inch LCD screen
displaying the recording status, users can use the front panel button to set IP, start/end recording, and make simple parameter setting ect

AAC encoding
at least 1x 3.5mm audio input, 2x 3.5mm audio output, one of which can be used for monitoring.

build-in audio processing module
equipped with 6x 48V phantom power MIC input, support auto denoising

4x USB interface,
include 2x USB3.0 2x USB2.0, at least 7x RS232 interface,
2x for controlling PTZ cameras, 5x for connecting control panel, tracking device, and director device.

ONVIF/RTSP IPC streaming,
can auto-search and display ONVIF device in the system, for user approvement

MP4 video format, AAC for audio,
bitstream: 48Kbps～10Mbps adjustable

Standard supply with at least 2T HDD

build-in auto-tracking module,
can detect the target and realize auto-tracking(student, teacher, blackboard)

1U standard rackmount device

Build-in high-performance live-streaming server,
support 300channel live broadcasting simultaneously

Support upgrade to interactive model by remote







Interface:









  • - LAN — RJ45 main network port (default IP: 192.168.1.55)
  • - LAN1 — RJ45 port(configure tracking setting for external PTZ camera and live-broadcasting )（detailed function can be configured by LAN1），default IP: 192.168.1.57）
  • - USB interface(front panel) — USB 2.0，connect to keyboard and mouse
  • - USB interface(back panel) —USB 3.0，can connect to keyboard,mouse, especially for USB disk for content backup, and system upgrade.
  • - HDMI-OUT —loop-out of 1x VGA/HDMI
  • - HDMI-OUT1 —  interactive video output
  • - HDMI-OUT2 —  Film recorded video output
  • - HDMI-OUT3 — Reserved
  • - VGA-IN — VGA video signal input
  • - HDMI-IN — HDMI video signal input
  • - HDMI-IN1 — 1x HDMI signal input
  • - HDMI-IN2 — 1x HDMI signal input
  • - SDI1~SDI6 — 6x HD SDI video input
  • - LINE-IN — 1x 3.5mm linear audio input
  • - AUDIO — 1x 3.5mm linear audio output
  • - LINE-OUT(front panel) — 1x 3.5mm monitoring audio output
  • - MIC（5-0）— 6 x 48V phantom power MIC input
  • - Console — DB9 Serial interface console
  • - COM_P — 1x RS232 serial port， for connecting to touch screen control surface
  • - COM — 1x RS-232 serial port，connect to external tracking device
  • - COM_S — 1x RS-232 serial port， for controlling external student PTZ camera
  • - COM_T — 1x RS-232 serial port，for controlling external teacher PTZ camera
  • - COM1-2 —2x RS232 serial port, connecting to external serial port device
  • - COM3 — 1x RS232 serial port, communication extension port
  • - DC_IN — standard 19V input interface

Download
