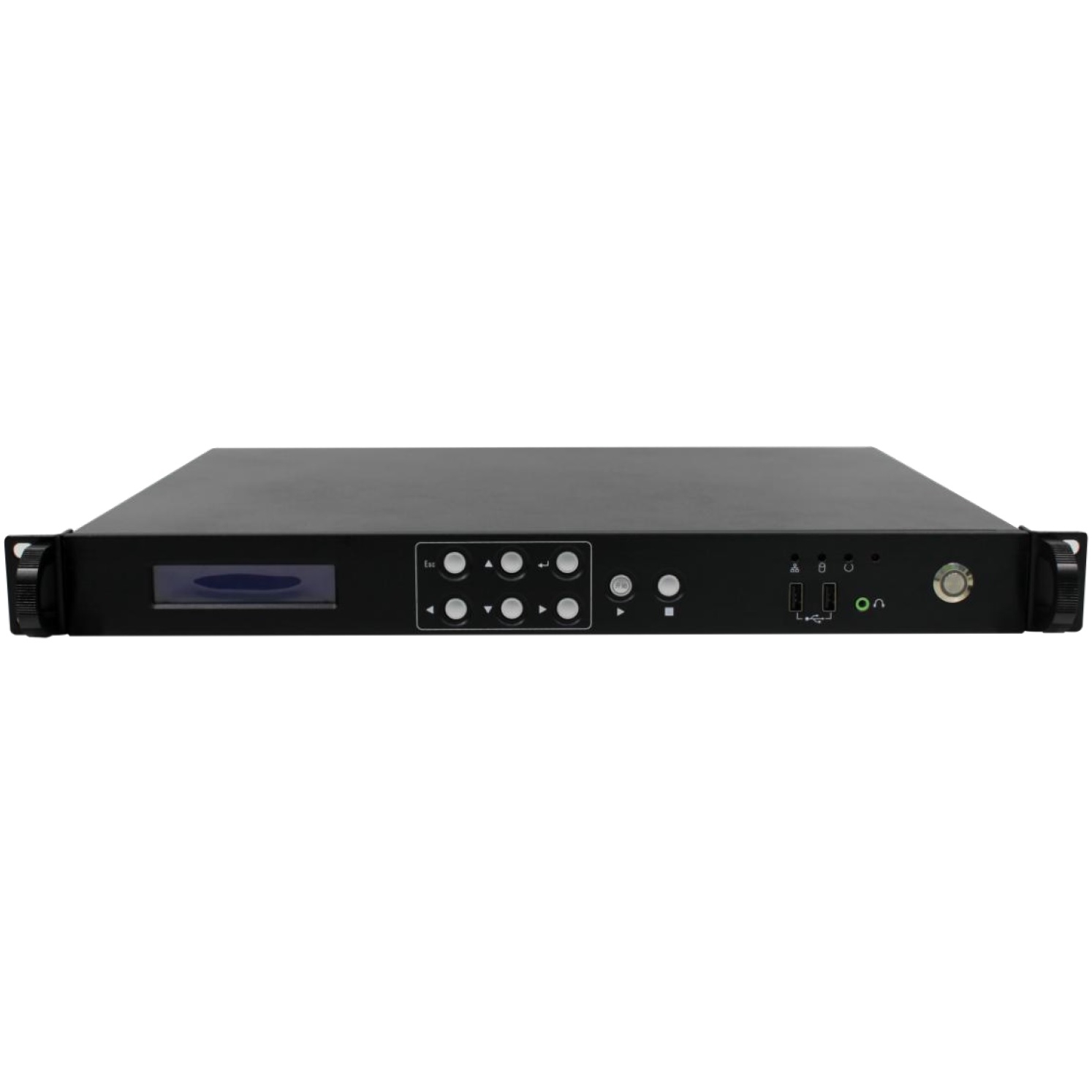

Thiết bị ghi hình K2140T0-K2141T0

Thiết bị ghi hình K2140T0-K2141T0

Mô tả ngắn

Embedded Recorder All-in-One design

Multiple Input Interface

Support the seamless switching

Support at least 2 film image HDMI output

Support at least 1 HDMI image loop-out

at least 1x 1000Base-T RJ-45 port

liên hệ mua hàng
Hotline: 0918 642 886

Features:


Embedded All-in-One design
to ensure the system stability, integrated with function of A/V encoding, recording, storage, streaming, director, VOD, switching

Multiple Input Interface
Equipped with 4x 3G/HD-SDI input + 1 VGA/HDMI input

Support the seamless switching
5 channel 1080p25/30/50/60 HD input signal, including 4 HD-SDI + 1 VGA signal

Support at least 2 film image HDMI output,
one for director image(film channel) output to projection,or large screen directly without delay, ideal resolution is
1920*1080@60HZ, one for displaying local director operation interface

Support at least 1 HDMI image loop-out

at least 1x 1000Base-T RJ-45 port,
with function of remote network management, including
remote power on/off from resource platform, and FTP upload

AAC encoding,
at least 1x 3.5mm audio input, 1x 3.5mm audio output

build-in audio processing module,
equipped with 2x 48V phantom power MIC input, support auto denoising

2x USB3.0, at least 4x RS232 interface,
2x for controlling PTZ camera, 2x for connecting control panel, and tracking device.

ONVIF/RTSP IPC streaming,
can auto-search and display ONVIF device in the system, for user approvement

MP4 video format, AAC for audio,
bitstream: 48Kbps～10Mbps adjustable

Standard supply with at least 2T HDD

build-in auto-tracking module,
realize the switching and tracking between teacher and student

can upgrade to interactive model by remote

1U standard rackmount device



Interface:





  • - LAN — RJ45 main network port (default IP: 192.168.1.55)

  • - USB interface(front panel) — USB 2.0，connect to keyboard and mouse

  • - USB interface(back panel) —USB 3.0，for content backup, and system upgrade.

  • - HDMI-OUT —loop-out of 1x VGA/HDMI

  • - HDMI-OUT1 —  interactive video output/local director film channel video output

  • - HDMI-OUT2 —  interactive interface output/local director operation output

  • - VGA-IN — VGA video signal input

  • - HDMI-IN — HDMI video signal input

  • - SDI1~SDI4 — 4x HD SDI video input

  • - LINE-IN — 1x 3.5mm linear audio input

  • - AUDIO — 1x 3.5mm linear audio output

  • - LINE-OUT(front panel) — 1x 3.5mm monitoring audio output

  • - MIC — 2x 48V phantom power MIC input

  • - Console — DB9 Serial interface console for troubleshooting

  • - COM_P — 1x RS232 serial port， for connecting to touch screen control surface

  • - COM — 1x RS-232 serial port，connect to the external tracking device

  • - COM_S — 1x RS-232 serial port， for controlling external student PTZ camera

  • - COM_T — 1x RS-232 serial port，for controlling external teacher PTZ camera

  • - DC_IN — standard 19V input interface
