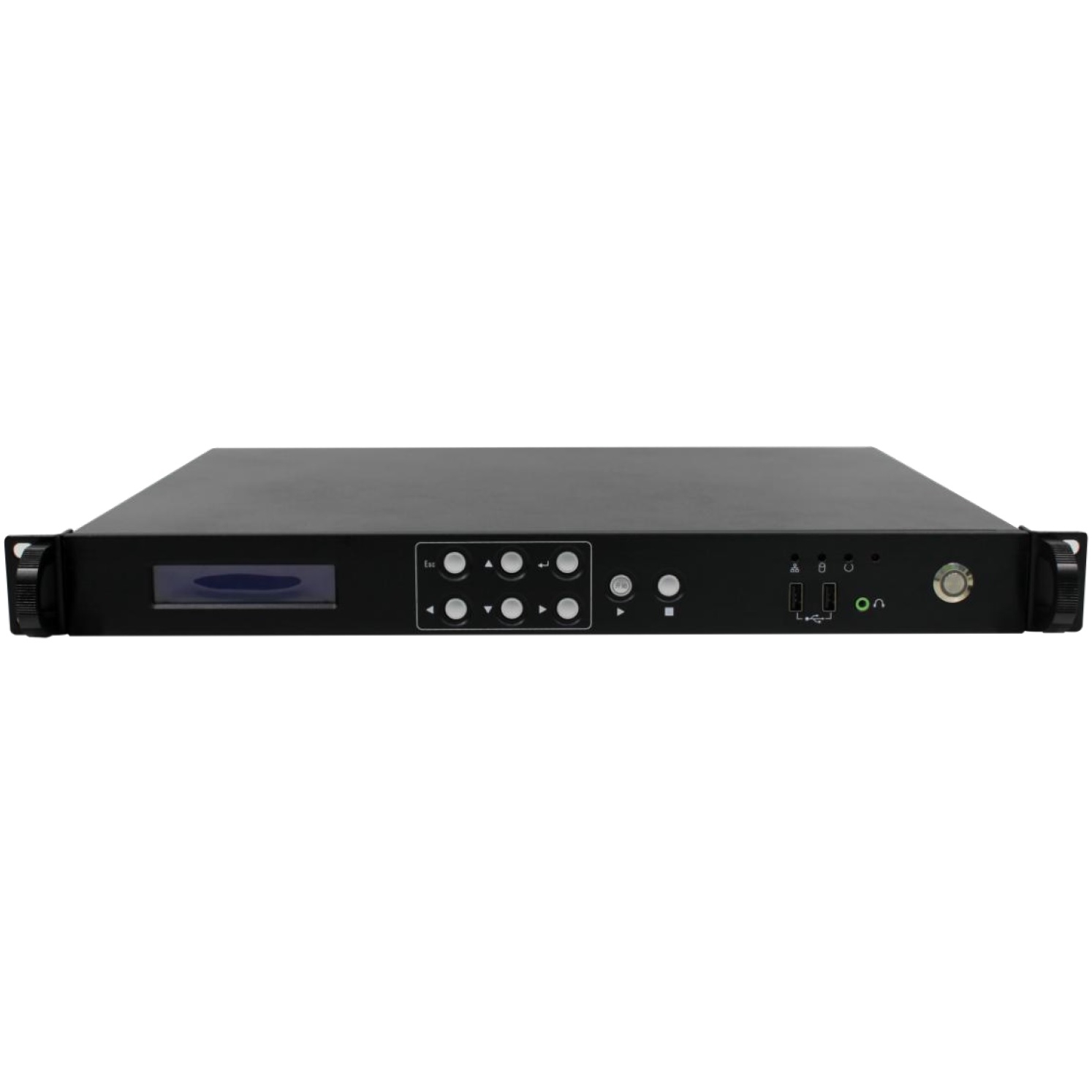

Thiết bị ghi hình K2120T0

Thiết bị ghi hình K2120T0

Mô tả ngắn

Embedded Recorder All-in-One design

Multiple Inputs

Support the seamless switching

Support at least 2 film image HDMI output

Support the seamless switching

Support at least 1 HDMI image loop-out

liên hệ mua hàng
Hotline: 0918 642 886

Features:


Embedded All-in-One design
ensure the system stability, integrated with function of A/V encoding, recording, storage, streaming, director, VOD, switching

Multiple Inputs
Equipped with 2x 3G/HD-          SDI input + 1 VGA/HDMI input

Support the seamless switching
3 channel 1080p25/30/50/60 HD input signal, including 2 HD-SDI + 1 VGA signal

Support at least 2 film image HDMI output
one for director image/interaction image output to projection, or large screen directly, one for displaying local director operation interface

Support at least 1 HDMI image loop-out

at least 1x 1000Base-T RJ-45 port
function of remote network management, including remote power on/off from resource platform, and FTP upload

with 3.2 inch LCD screen
displaying the recording status, users can use the front panel button to set IP, start/end recording, and make simple parameter setting etc.

AAC encoding
at least 1x 3.5mm audio input, 2x 3.5mm audio output, one of which can be used for monitoring.

build-in audio processing module
equipped with 2x 48V phantom power MIC input, support auto denoising

4x USB interface
2x USB3.0 2x USB2.0, at least 2x RS232 interface, for connecting control panel, and tracking device.


ONVIF/RTSP IPC streaming
can auto-search and display ONVIF device in the system, for user approvement

MP4 video format, AAC for audio
bitstream: 48Kbps～10Mbps adjustable

Standard supply with at least 2T HDD

build-in auto-tracking module
realize the switching between teacher and student

1U standard rackmount device

can upgrade to interactive model by remote



Interface Definition:







  • - LAN — RJ45 main network port (default IP: 192.168.1.55)

  • - USB interface(front panel) — USB 2.0，connect to keyboard and mouse, and slave upgrade(interaction)

  • - USB interface(back panel) —USB 3.0，can connect to keyboard,mouse, especially for USB disk for content backup, and system upgrade.

  • - HDMI-OUT —loop-out of 1x VGA/HDMI

  • - HDMI-OUT1 —  interactive video output

  • - HDMI-OUT2 —  Film recorded video output

  • - VGA-IN — VGA video signal input

  • - HDMI-IN — HDMI video signal input

  • - SDI1~SDI4 — 4x HD SDI video input

  • - LINE-IN — 1x 3.5mm linear audio input

  • - AUDIO — 1x 3.5mm linear audio output

  • - LINE-OUT(front panel) — 1x 3.5mm monitoring audio output

  • - MIC — 2x 48V phantom power MIC input

  • - Console — DB9 Serial interface console for troubleshooting

  • - COM_P — 1x RS232 serial port， for connecting to touch screen control surface

  • - COM — 1x RS-232 serial port，connect to external tracking device

  • - COM_S — 1x RS-232 serial port， for controlling external student PTZ camera

  • - COM_T — 1x RS-232 serial port，for controlling external teacher PTZ camera

  • - DC_IN — standard 19V input interface
