1080p high-definition image
12x optical zoom
72.5-degree FOV
USB3.0 plug and play

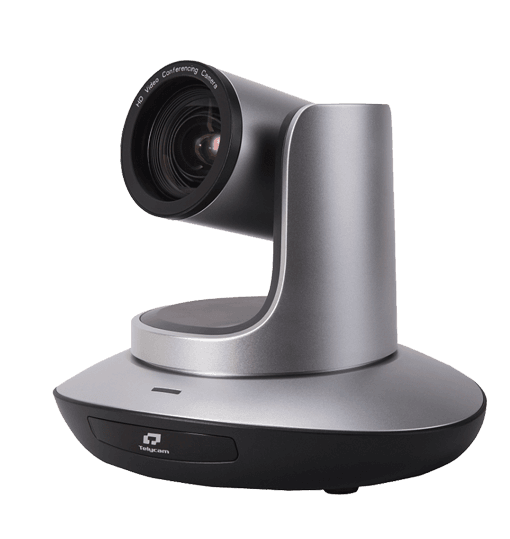

Meet 12-U3 TLC-300-U3-12 is ideal used for video conferencing in the large and middle meeting room. It is equipped with Panasonic's advanced sensor, 12x optical zoom lens, to output crystal clear image with realistic color, even in low light or high contrast of brightness and darkness environment. It works with any of your favorite conferencing software, totally plug and play, use-friendly
Features:
- Adopted industrial-grade ISP, 1/2.8” sensor, output HD 1080p video streaming, to offer you a completely high definition, noiseless and crisp, realistic color image with full details
- 12x optical zoom lens, with 72.5-degree wide-angle FOV, along with smooth pan/tilt rotation and fast, accurate focus to capture any view in conferencing space.
- USB3.0 Output, Plug-and-Play, compatible with your preferable video conferencing software and platform, Zoom.us, Skype4business, Vidyo, Bluejeans, Webex, Google Hangout, TrueConf, Gotomeeting ect, at different operation system Windows, Mac, Android, and Linux.
- FECC (far-end camera control) supported.
- Standard Sony VISCA and UVC1.5 protocol, PTZ control, and firmware upgrade via RS232 and USB port.
- 128 presets supported
- Support multiple mount way: available to install on desk, monitor, tripod, or up-side-down in-ceiling.
|
Model Number |
Meet 12-U3 (Part No. TLC-300-U3-12) |
|
Camera |
|
|
Sensor |
1/2.8 inch high quality HD CMOS sensor, |
|
Video System |
USB3.0: 1920*1080p30/25, 1280*720p60/50/30/25, 1024*768p30,800*600p30,1024*576p30,960*540p30,576*448p30,768*448p30 USB2.0: 1280*720p25,576*448p30,704*576p30, 768*448p30,640*480p30,640*360p30, 512*288p30,352*288p30 |
|
Video Format |
YUY2 |
|
Lens Zoom |
12x optical zoom, 12x digital zoom |
|
Focal length |
f=3.92(wide)~47.32mm(Tele) |
|
View Angle |
6.3°(wide)~ 72.5°(Tele) |
|
SNR |
>50dB |
|
Noise Reduction |
2D/3D |
|
Minimum LUX |
0.1 LUX |
|
White Balance |
Auto / Manual/Indoor/Outdoor/ATW/ONEPUSH |
|
Focus |
Auto / Manual |
|
Iris |
Auto / Manual |
|
Electronic Shutter |
Auto / Manual |
|
BLC |
Supported |
|
Mechanism |
|
|
Pan Rotation Angle |
-170° ~ +170° |
|
Tilt Rotation Angle |
-30° ~ +90° |
|
Pan Rotation Speed |
0°~120°/s |
|
Tilt Rotation Speed |
0°~80°/s |
|
Preset |
128 presets via RS232, 10 presets via remote controller |
|
Control |
RS232/RS485/USB/Remote Controller |
|
Video Port: |
USB3.0 |
|
Input voltage |
DC12V |
|
Camera Dimension |
220mm×173mm×117mm |
|
Package Dimension |
32x30x31cm |
|
Package Content |
Camera, Remote Controller, RS232 cable, USB3.0 cable, Power Supply |
