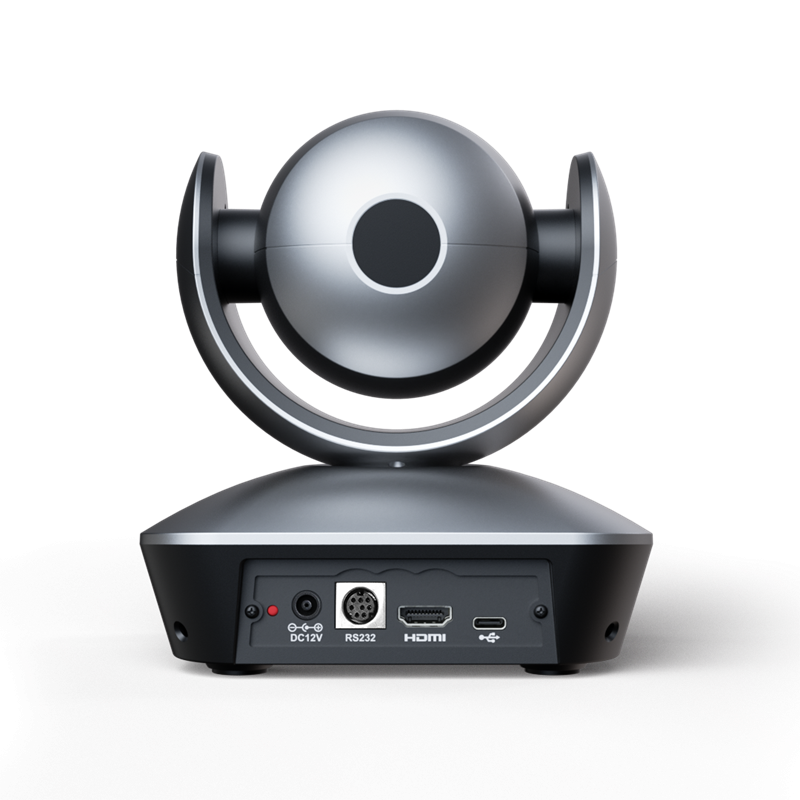

Camera Telycam Meet+ 3 TLC-1000-HU2-3-4K
Mô tả ngắn
4K30 high-definition image
3x optical zoom
USB & HDMI simultaneously output
Power via USB-C
Easy deployment and easy control
Hotline: 0918 642 886
Camera Telycam Meet+ 3 TLC-1000-HU2-3-4K
- 4K30 UHD output
Equipped with advanced image processing solution and cutting-edge video camera algorithms, Sony 1/2.8-inch 8.4MP CMOS sensor and high-quality lens, to output crystal clear image, max up to 4K30 ultra high-definition resolution.
- 3x optical zoom
Uses truly 3x optical zoom lens, with 81.4 degree wide angle FOV, to capture details in small room
- USB and HDMI output
With USB-C and HDMI video ports, which can output the same or different resolutions respectively at the same time.
- Easy deployment and easy control
Truly plug and play with no need for installing any driver, just open any of your favorite video conferencing software/platform to start the video chat immediately.
You can use the matched remote controller, or your video conferencing software or any VISCA device to control it
- Power via USB-C
Meet+ series can power via a USB-C port directly, with no need for the power supply adaptor, which makes deployment even more simple, a single cable enables power, video, and control.
Technical Specifications
|
Camera |
Meet+ 3 |
|
Part Number |
TLC-1000-HU2-3-4K |
|
Sensor |
1/2.8-inch, 8.4MP CMOS Sony sensor |
|
Zoom |
3x optical zoom + 12x digital zoom |
|
Lens |
f = 3.3mm~9.7 mm, F2.0 – 3.7 |
|
Horizontal View Angle |
81.4°(wide) ~ 31.3°(tele) |
|
Vertical View Angle |
50.5°(wide) ~ 18.2°(tele) |
|
Diagonal View Angle |
92°(wide) ~ 35.8°(tele) |
|
S/N Ratio |
≥50dB |
|
Minimum Working Distance |
Wide: 0.5m; Tele: 1m |
|
Video Format |
HDMI:
3840*2160P30/25 1920*1080P60//50/30/25; 1920*1080I60/50 1280*720P60/50/30/25 |
|
USB2.0 Type-C：
MJPG： 3840*2160P30/25；1920*1080P/30/25；1280*960P30/25；1280*720P30/25；1024*768P30/25；800*600P30/25；640*480P30/25；320*240P30/25 YUY2：640*480P30/25/20/15；320*240P30/25/20/15 |
|
|
Image Parameters |
|
|
Noise Reduction |
2D&3D |
|
Minimum lux |
0.7lux (50 IRE Max AGC,1/30) |
|
White Balance |
Auto / Manual / Indoor/ Outdoor/ C.T. / PUSH |
|
Exposure |
Auto/Manual/Shutter Priority |
|
Anti-Flicker |
OFF,50Hz,60Hz |
|
Image Flip |
Support |
|
Mirroring |
Support |
|
Focus |
Auto/Manual |
|
Electronic-shutter |
Auto/Manual |
|
Gamma |
Support |
|
WDR |
Support |
|
Pan/Tilt Movement |
|
|
Preset |
Remote controller: 10; Serial port: 128; Accuracy：0.1° |
|
Pan Rotation Angle |
-170° ~+170° |
|
Tilt Rotation Angle |
-30° ~+90° |
|
Pan Rotation Speed |
0.1°~120°/s |
|
Tilt Rotation Speed |
0.1°~80°/s |
|
General |
|
|
Input Voltage |
DC: 12V |
|
Operating Temperature |
-10℃~ 50℃ |
|
Operating Humidity |
≤80% |
|
Color |
Silver |
|
Dimension（L×W×H） |
148mm×132mm×162mm |
|
Net Weight |
0.85kg(1.85LBS) |
|
Accessory |
Power adapter, Power cable, 3m USB Type-C cable, manual, warranty card |
