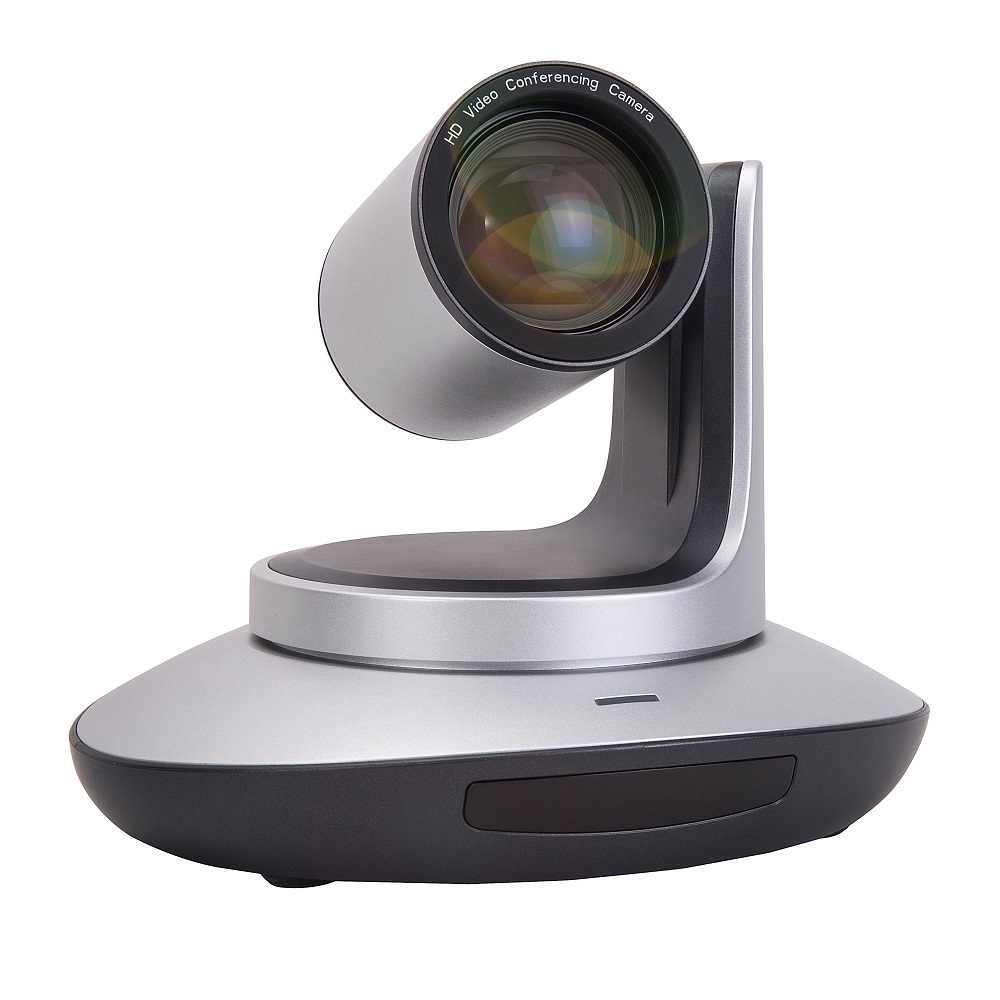

Camera Telycam USB 3.0 DVI TLC-700-U3

Camera Telycam USB 3.0 DVI TLC-700-U3

Mô tả ngắn

Video Conference PTZ Camera:
- 1/2.86" high quality 8MP SONY CMOS sensor
- FullHD 1080p/60fps
- 20x optical zoom, 12x digital zoom
- 57.4 degree FOV,
- Pan -170° ~ +170°,  Tilt  -30°~+90°
- Simultaneously video out put USB3.0 & DVI

liên hệ mua hàng
Hotline: 0918 642 886

Broadcast class image quality

Adopted advanced American Ambarella broadcast level chip, and Sony high speed&low noise 1/2.8” 8MP sensor, to output exceptional image quality

Full HD 1080p/60 (59.94) resolution.

WDR, BLC, 3D noise reduction and exposure compesation features to make the camera work at low light or sunshine enviroment.

HDMI&USB3.0 output simultaneously

USB3.0&HDMI full HD video streaming output, enable it works for cloud-based unified communication as well as on premise video collaboration with any software and hardware terminal you prefer, to replace complex, costly traditional video conferencing system.

20x Optical Zoom,57.4° FOV

Fast&accurate focus and big zoom 20x lossless optical zoom, with 57.4 degree wide angle FOV, along with 340degree pan&120degree tilt rotation at adjustable speed to capture any view in the space.

Flexible Compatibility

Compatible with most leading video conferencing software and and hardware terminal, Zoom.us, Skype4business, Viydo, Bluejeans, Polycom, Lifesize, Webex, Google Hangout, Adobe ect, at different operation system Windows, Mac, Android and Linux.
And FECC (far-end camera control) supported via the software.

RS232/RS485/UVC control.

Standard Sony Visca and UVC1.5 protocol, users can control the camera via both RS232 (RS485) and USB port.
128 presets through RS232 control and 10 presets by remote controller.
Field upgradable for firmware via RS232&USB port easily.

Multiple Installation Way

Support multiple mount way: available to install on desk, monitor, tripod or up-side down in-ceiling.



Camera:

Sensor: 1/2.86 inch high quality, SONY CMOS sensor, 8MP.

Lens: 20x optical zoom, 12x digital zoom

View Angle: 3.2°(wide)~57.4°(tele)

Video System:

DVI: 1920x1080p60/50/30/25, 1920x1080i60/50, 1280x720p60/50/30/25

USB3.0: 1920x1080p60/50/30/25, 1280x720p60/50/30/25,

USB2.0: 1280x720p25,

Focal Length: f=4.7(wide)~94mm(tele)

S/N Rate: >50dB

Minimum Lux: 0.1 lux

Focus: Auto/Manual

Iris: Auto/Manual

White Balance: Auto / Manual

Electronic Shutter: Auto/ Manual

Black Light Compensation: ON/OFF

Anti Flicker: 50Hz/60Hz/OFF

Mechanical:

Pan Rotation Angle: -170° ~ +170°

Tilt Rotation Angle: -30° ~ +90°

Pan rotation speed: 0°~120°/s

Pan rotation speed: 0°~80°/s

Preset: 128 via RS232 control; 10 via remote controller

Port:

Video: DVI-I, USB3.0 (YUY2 format)

Control: RS232(Sony Visca), USB3.0 (UVC1.5 protocol)

Power: DC12V

OSD Menu:

Language: English/Spanish/Russion/Chinese

Dimension:

Camera: 220mm×173mm×117mm

Package: 32x30x31cm
