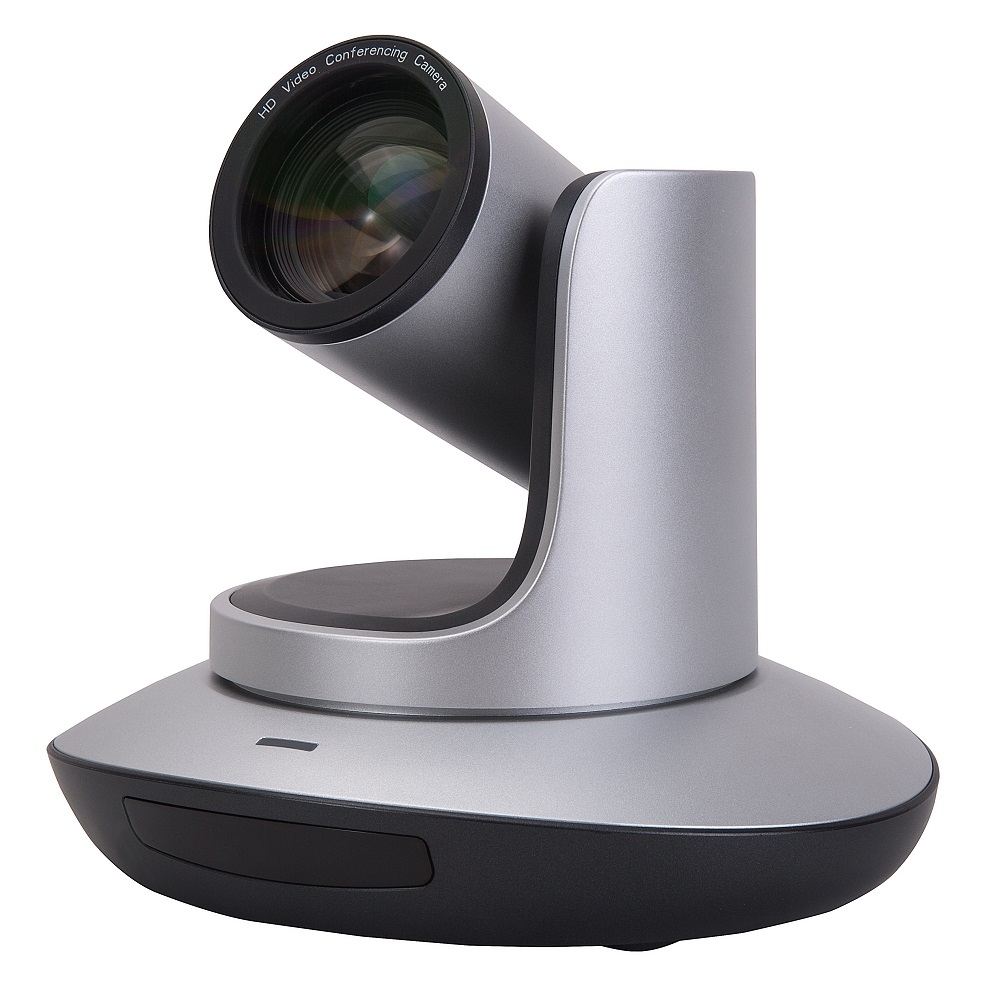

Camera Telycam USB 3.0 DVI TLC-400-U3
Mô tả ngắn
Video Conference PTZ Camera:
- 1/3" high quality 5 Megapixel CMOS sensor
- FullHD 1080p/30fps
- 3x optical zoom, 3x ditigal zoom
- 105 degree FOV,
- Pan -170° ~ +170°, Tilt -30°~+90°
- Simultaneously video out put USB3.0 & DVI
Hotline: 0918 642 886
Features
|
• Ultra crystal video quality: with Ambarella A7L DSP 1/3" 5MP sensor and wide angle 3x lens • Fast switching between different video formats: only 3seconds needed • Fast and accurate focus performance • Easy firmware upgrade-(field-upgradable):no need to open the camera housing • Daisy Chain function: with both Visca in and Visca out port • Compatible with the majority of videoconferencing software (UVC1.5 protocol standard) • With powerful functional remote controller • Multi language OSD menu: support English, Chinese, Russian, Spanish • 1 years warranty offered |
• USB3.0 & DVI-I(HDMI) simultaneously output • Zoom: 3X Optical Zoom & 3XDigital Zoom • 1920x1080p 30fps high resolution • 105 Degree field of view: • Ultra smooth PTZ mechanism • Accurate PT motor control • Up to 128 presets • Effective RS232/RS485 serial control • Exposure compensation, 2D-noise reduction function • Image flip function support upside-down installation • Mounts: Wall mount & in-ceiling mount available • Sony Visca and Pelco P/D protocol controls |
.jpg) |
1080P30 High Resolution. |
.jpg) |
USB3.0 Super Speed Transmission |
.jpg) |
. Plug and Play, Driver Free |
.jpg) |
Multi-Languages OSD Menu |
Order Model No.
|
Model No. |
Max.Resolution |
Zoom |
Output |
Color |
|
TLC-400-U3 |
1080P29.97 |
3XOptical Zoom |
USB3.0+DVI-I (HDMI) |
Silver+Black |
|
|
Output
Dimensional Drawing (mm)
|
Model |
|||
|
Sensor |
1/3 inch high quality 5MP HD CMOS sensor, |
||
|
Video system |
DVI-I(HDMI) port |
USB3.0 port |
USB2.0 port |
|
1080p29.97/25; 720p59.94/50/29.97/25 |
1080p29.97/25; 640*480@60/30 |
720p25; 800*600@60/30; 640*480@60/30 |
|
|
Zoom |
3x optical zoom & 3xditigal zoom |
||
|
View angle |
30.2°（wide）~ 105°（tele） |
||
|
Pan rotation angle |
-170° ~ +170° |
||
|
Tilt rotation angle |
-30° ~ +90° |
||
|
Pan rotation speed |
0°~120°/s |
||
|
Titl rotation speed |
0°~80°/s |
||
|
Preset |
128 |
||
|
Control port |
RS232/USB3.0 |
||
|
Video port |
DVI-I /USB3.0 |
||
|
SNR |
>47dB |
||
|
Focal length |
f =3.2mm(wide) ~9.6mm(tele) |
||
|
Minimum Lux |
0.01 lux |
||
|
White Balance |
Auto / Manual |
||
|
Focus |
Auto / Manual |
||
|
Iris |
Auto / Manual |
||
|
Electronic Shutter |
No |
||
|
BLC |
No |
||
|
Input voltage |
DC12V |
||
|
Dimension （W x H x W） |
220mm×173mm×117mm |
||
|
Net Weight |
1.25KG (2.8LBS) |
||
