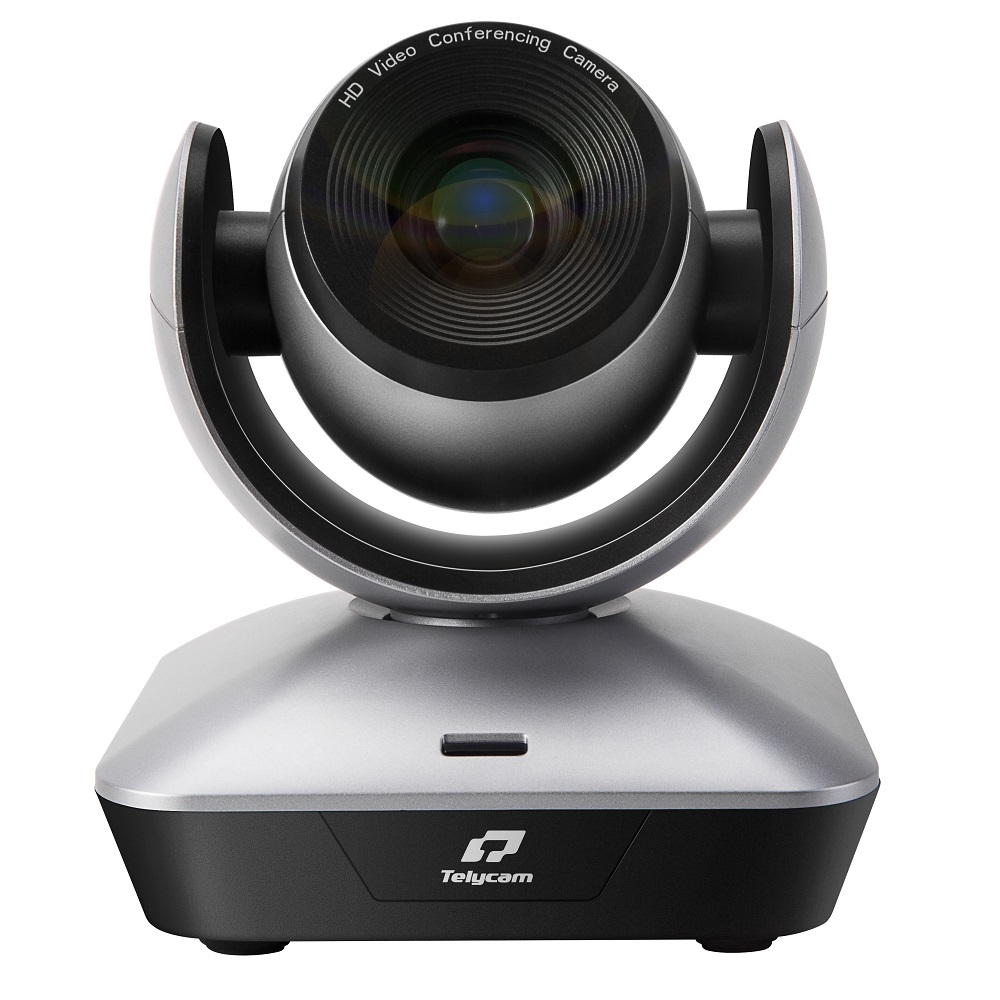

Video Conference PTZ Camera:
- 1/2.8" high quality 5MP CMOS sensor
- FullHD 1080p/30fps
- 10x optical zoom, 12x digital zoom
- 62.5 degree FOV,
- Pan -170° ~ +170°, Tilt -30°~+90°
- USB2.0 video out put
Ultra crystal clear video
Adopted advanced American Ambarella ISP, and 5MP CMOS sensor, to output crisp image.
Full HD 1080p/30 resolution.
WDR, BLC, 3D noise reduction and exposure compesation features to make the camera work at low light or sunshine enviroment.
10x Optical Zoom,62.5° FOV
Fast&accurate focus and 10x lossless optical zoom, with 62.5 degree wide angle FOV, along with 340degree pan&120degree tilt rotation at adjustable speed to capture any view in conferencing space.
USB2.0 Output, Flexible Compatibility
USB2.0 video streaming output, compatible with most leading video conferencing software and and hardware terminal, Zoom.us, Skype4business, Viydo, Bluejeans, Polycom, Lifesize, Webex, Google Hangout, Adobe ect, plug&play at different operation system Windows, Mac, Android and Linux.
And FECC (far-end camera control) supported via the software.
RS232/RS485/UVC control.
Standard Visca and UVC1.5 protocol, users can control the camera via both RS232 (RS485) and USB port.
128 presets through RS232 control and 10 presets by remote controller.
Field upgradable for firmware via RS232&USB port easily.
Multiple Installation Way
Support multiple mount way: available to install on desk, monitor, tripod or up-side down in-ceiling.
Camera:
Sensor: 1/2.8 inch high quality, CMOS sensor, 5MP.
Lens: 10x optical zoom,12x digital zoom
View Angle: 6.43°(wide)~62.5°(tele)
Video System: 1920x1080p30/25, 1280x720p60/50/30/25,
Focal Length: f=4.7(wide)~47 mm(tele)
S/N Rate: >50dB
Minimum Lux: 0.1 lux
Focus: Auto/Manual
Iris: Auto/Manual
White Balance: Auto / Manual
Electronic Shutter: Auto/ Manual
Black Light Compensation: ON/OFF
Anti Flicker: 50Hz/60Hz/OFF
Mechanical:
Pan Rotation Angle: -170° ~ +170°
Tilt Rotation Angle: -30° ~ +90°
Pan rotation speed: 0°~120°/s
Pan rotation speed: 0°~80°/s
Preset: 128 via RS232 control; 10 via remote controller
Port:
Video: USB2.0 (MJPG format)
Control: RS232(Visca), USB2.0 (UVC1.5 protocol)
Power: DC12V
OSD Menu:
Language: English/ Chinese
Dimension:
Camera: 148mm×132mm×161mm
Package: 28x24x24cm
