1080p60 high-definition image
20x optical zoom
USB & HDMI simultaneously output
Power via USB-C
Easy deployment and easy control

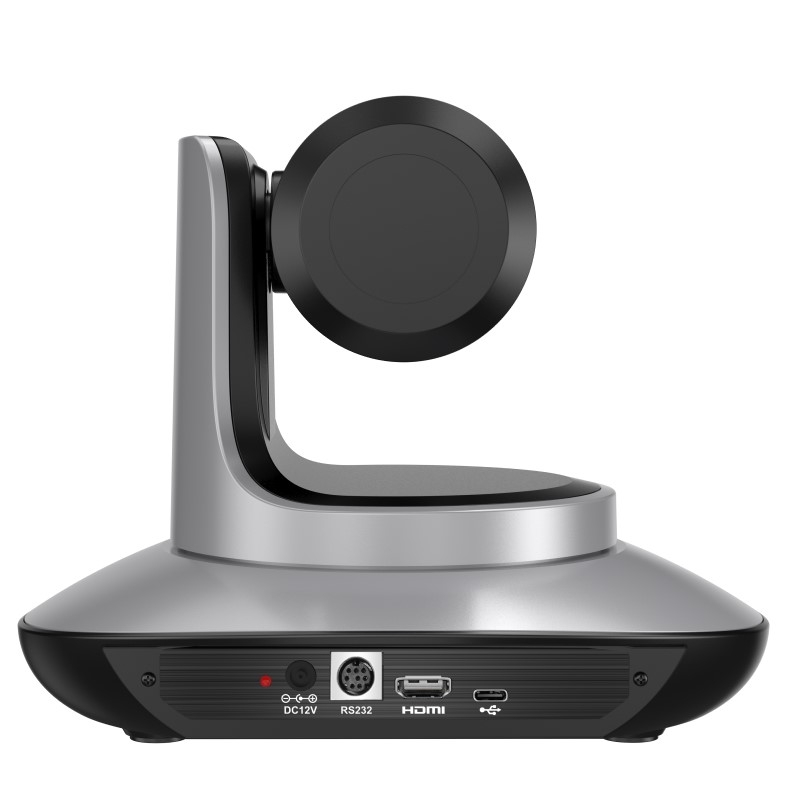

Meet+ 20 is ideally used for video conferencing in medium and large-sized meeting rooms. It is equipped with Panasonic 1/2.8"sensor and high quality 20x optical lens, to output crisp images with realistic color, even in low light or high contrast of brightness and darkness environment. USB and HDMI can output different resolutions respectively at the same time, both can be up to 1080p60. Power via USB-C port. It works with any of your favorite conferencing software, totally plug and play, and user-friendly.
Features
1080p60 FHD output
Equipped with advanced image processing solution and cutting-edge video camera algorithms, a Panasonic 1/2.8 inch sensor and high-quality lens, to output crystal clear image, max up to 1080p60 full high definition resolution.
20x optical zoom
Featured with a high-quality 20x optical zoom, which is able to capture the participants at a distance of 20 meters, allowing the participants to occupy 1/3 of the screen in the display very clear and lively.
USB and HDMI output
With USB-C and HDMI video ports, which can output the same or different resolutions respectively at the same time.
Easy deployment and easy control
Meet+ 20 is truly plug and play with no need for installing any driver, just open any of your favorite video conferencing software/platform to start the video chat immediately.
You can use the matched remote controller, or your video conferencing software or any VISCA device to control it.
Power via USB-C
Meet+ 20 can power via a USB-C port directly, with no need for the power supply adaptor, which makes deployment even more simple, a single cable enables power, video, and control.
Smooth and quite PTZ movement
Thanks to the compact and sophisticated mechanism design, and accurate driven algorithms, Meet+ 20 can move very smoothly without noise at variable pan/tilt/zoom speed.
|
Camera |
Meet+ 12 |
Meet+ 20 |
|
Part Number |
TLC-300-HU2-12 |
TLC-300-HU2-20 |
|
Sensor |
1/2.8 inch, 2.4 MP CMOS Panasonic sensor |
|
|
Zoom |
12x optical zoom + 12x digital zoom |
20X optical zoom + 12x digital zoom |
|
Lens |
f = 3.92 ~ 47.32mm, F1.8 ~F2.8 |
f = 4.9 ~ 98mm, F1.5 ~ F3.0 |
|
Horizontal View Angle |
72.5°(wide)-6.3°(Tele) |
60° (Wide) ~ 3.2° (Tele) |
|
Vertical viewing angle |
40.1° ~ 4.1° |
32.2° ~ 1.8° |
|
Diagonal viewing angle |
69.7° ~ 7.56° |
61° ~ 3.64° |
|
Minimum Object Distance |
Wide: 1m; Tele: 1.5m |
Wide: 1m; Tele: 1.5m |
|
S/N Ratio |
≥50dB |
|
|
Video Format |
HDMI: 1920*1080P60/59.94/50/30/29.97/25/24 1920*1080I60/59.94/50 1280*720P60/59.94/50/30/29.97/25 |
|
|
USB2.0 Type-C: MJPG: 1920*1080P60; 1280*960P60; 1280*720P60; 1024*768P60; 800*600P60; 640*480P60; 320*240P60 YUY2: 640*480P30; 320*240P30 |
||
|
Image Parameters |
||
|
Noise Reduction |
2D&3D |
|
|
Minimum lux |
0.7lux (50 IRE Max AGC,1/30,F1.8) |
|
|
White Balance |
Auto / Manual / Indoor/ Outdoor/ C.T. / PUSH |
|
|
Exposure |
Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority |
|
|
Anti-Flicker |
OFF,50Hz,60Hz |
|
|
Image Flip |
Support |
|
|
Mirroring |
Support |
|
|
Focus |
Auto/Manual |
|
|
Iris |
Auto/Manual |
|
|
Electronic-shutter |
Auto/Manual |
|
|
Gamma |
Support |
|
|
WDR |
Support |
|
|
Pan/Tilt Movement |
||
|
Preset |
Remote controller: 10; Serial port: 128; Accuracy:0.1° |
|
|
Pan Rotation Angle |
-170° ~+170° |
|
|
Tilt Rotation Angle |
-30° ~+90° |
|
|
Pan Rotation Speed |
0.1°~120°/s |
|
|
Tilt Rotation Speed |
0.1°~80°/s |
|
|
General |
||
|
Input Voltage |
5V 1000mA(via USB type C)/ DC: 12V 2A(via Power Adapter) |
|
|
Power Consumption |
DC: 12V 2A (Pmax=8W) |
DC: 12V 2A (Pmax=8W) |
|
Operating Temperature |
-10℃~ 50℃ |
|
|
Operating Humidity |
≤80% |
|
|
Color |
Silver |
|
|
Dimension(L×W×H) |
220mm×190mm×173mm |
220mm×190mm×173mm |
|
Net Weight |
1.25kg(2.8LBS) |
1.25kg(2.8LBS) |
|
Accessory |
Power adapter, Power cable, 3m USB Type-C cable, manual, warranty card |
|
