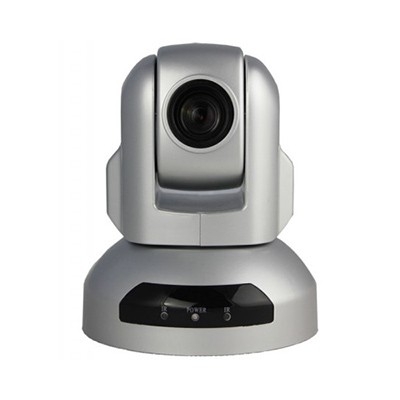

HD380-K2 DVI/HDMI PTZ Video Camera : 2.0 Megapixel Full HD Camera experience 1080i@60 vivid images, equipped with 10x optical zoom lens
HD380-K2 DVI/HDMI PTZ Video Camera
2.0 Megapixel Full HD Camera experience 1080i@60 vivid images, equipped with 10x optical zoom lens, enhancing your video conferencing, distance learning, training meeting, courtrooms or remote medical with natural and smooth video images. DVI-I connector is suited for DVI-D analog component which provide high-quality video display. It supports HD-SDI Video output for further distance transmission.
Features:
Private Tooling design High Definition PTZ camera
Fast and smooth video handling
Power ON-OFF switch
Work & Standby LED indicator
Speed Match
Auto/Manual focus/brightness/WB
RS-232C/VISCA Protocol
Lens/Dome OSD menu
Boundary scanning
Standby & wakeup status
Swap video format button
HDMI/HD-SDI Video output
Performance:
1920x1080 pixels progressive @30fps
10x optical zoom
F=5-50 mm F2.0-2.8
HOV 51.8° ~5.86°
1/3” CMOS 2.1 M
Pan ±175°
Tilt ±120°
64 preset positions
4 cruise lines
DC 12V, 2A
Dimension:
L 124mm x W 120mm x H145mm
220x175x220mm (Package)
N. Weight: 1.4kgs
G. Weight: 1.7kgs
Installation:
Desktop
Ceiling mount
Standard Tripod accessory
Model |
HD380-K2 |
|
Image SenSor |
Sensor |
1/3” CMOS, 2.1 M compatible |
Minimum Scene lllumination |
0.1Lux |
|
White Balance |
AUTO/Manual |
|
Gain Control |
AUTO |
|
Back-light compensation |
ON/OFF |
|
Electronic shutter |
1/30-1/10000S |
|
S/N Ratio |
>50db |
|
Lens |
Focus |
AUTO |
Iris |
AUTO/Manual |
|
Zoom |
10 x Optical Zoom |
|
1/3.6model f=5-50mm |
||
Video Output |
HD-SDI/HDMI |
|
Video format |
1080P@30,1080P@25,1080P@24,1080I@60, 1080I@50,720P@60,720P@50 |
|
Control Decoder |
EIA/RS-485 |
|
Communication |
EIA/RS-232 (Bidirectional) |
|
PTZ Control Protocol |
VISCA,PELCO-P,PELCO-D |
|
Baud Rate |
9600/38400 bps |
|
Patrol tours |
4 |
|
Preset |
64 |
|
Save status after Power off |
Support |
|
Speed Matching Function |
Support |
|
OSD Menu |
Support |
|
Image Auto Flip |
Support |
|
Pan Speed |
0-100 degrees/s |
|
Tilt Speed |
0-80 degrees/s |
|
Pan Rotation Angle |
359degrees |
|
Tilt Rotation Angle |
240degrees |
|
Auto Pan Scan |
Support |
|
Boundary Scan |
0-359degrees(Programmable) |
|
Remoter Control |
IR Wireless remote control P/T/Z |
|
Power |
DC12V ±10% 1.2A |
|
Operation Temperature |
-10℃~60℃ |
|
Environmental humidity |
0-95%RH(non-condensation) |
|
Length X width X high |
124x120x145mm/220x175x220mm(NET/PACKAGE) |
|
Weight |
800g/1300g(NET/PACKAGE) |
