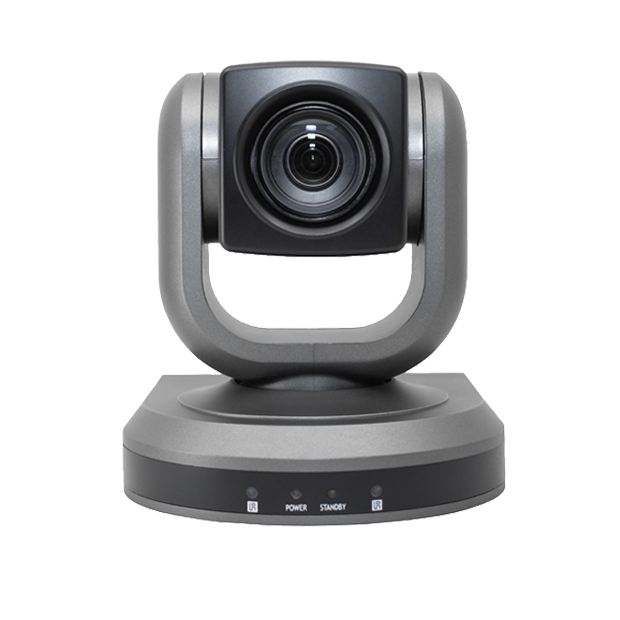

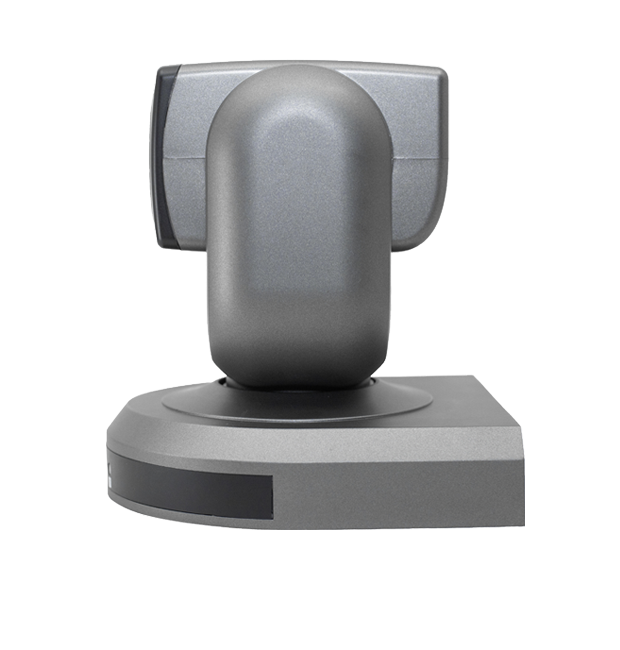

Camera Oneking DVI-SDI HD920-CV7310

　Model No.

HD920-CV7310

Sensor

Image Sensor

1/2.8" Type Exmor CMOS

Effective Pix

2.38 Megapixel

Min. Illumination

0.4Lux at F1.6

White balance

Auto/Manual

Gain control

Auto/Manual

Backlight compensation

On/Off

Shutter speed

1/1 - 1/10,000S

S/N ratio

>50db

Lens

Focus

f=4.7-94mm F1.6-3.5

Iris

Auto/Manual

Lens

20 Optical x 12 digital zoom

Horizontal view angle

59.5-3.3 degree

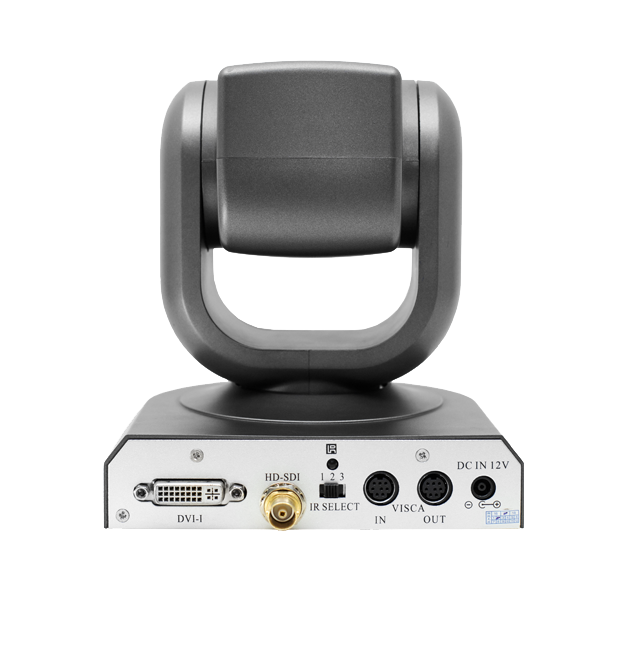

Video output

HD-SDI DVI-I

Signal system

1080P@60,1080P@50,1080p@30,1080p@25,1080i@60,1080i@50
720P@60,720P@50 ,720P@30, 720P@25

Control terminal

EIA/RS232C,EIA/RS485(Bidirectional)

Control Protocol

VISCA,PELCO-D

baud rate

9600/38400bps

patrol line

4 cruise sequence

preset position

64 preset positions

Speed Match

Pan/Tilt movement speed depends on camera module zoom in/out

OSD Menu

Access to OSD Menu and adjust camera module parameters

Image auto flp

Support Horizontal/Vertical image flip

Pan movement speed

1-200°/Second

Tilt movement speed

1-150°/Second

Pan movement range

Pan: 0-355°

Tilt movement range

Up: 90°, Down: 45°

Pan scanning automatically

Support Pan scanning automatically

Boundary scanning

0-355°(programmable)

Remote controller

IR Wireless Remote controller P/T/Z

Power supply

DC12V,2A

Work Temperature

0-50℃

Humidity

0-95%RH

LxWxH

250mm x 140mm x 154mm

Weight

1380g
