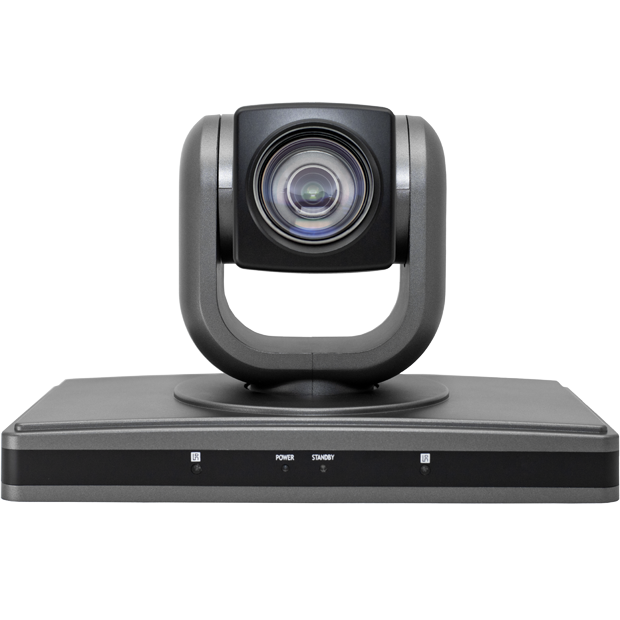

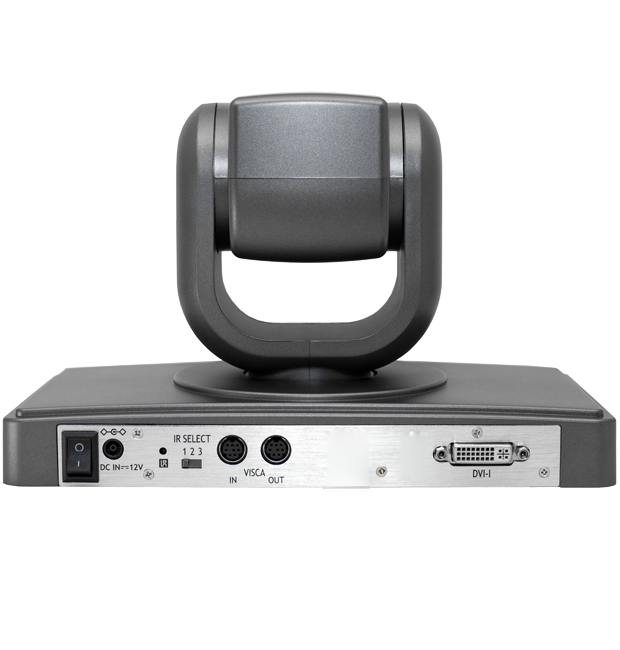

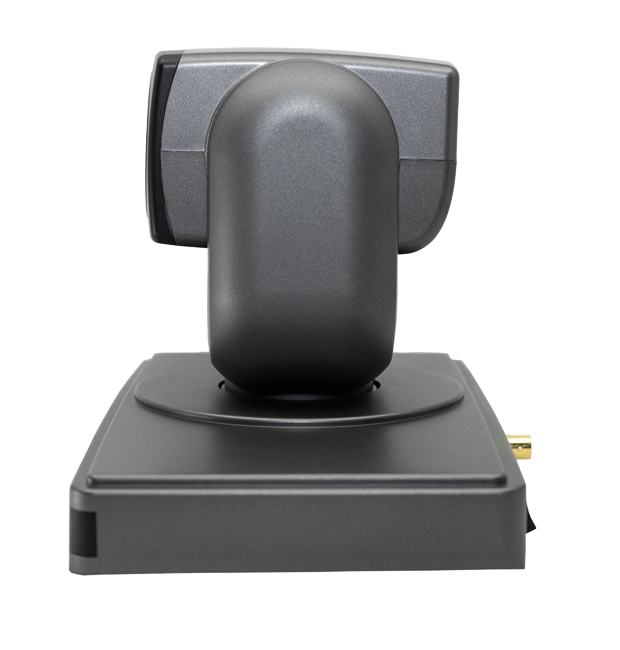

Camera Oneking DVI HD8830-SN7500
Mô tả ngắn
1080p@60fps | SONY 30x Optical Zoom | VISCA Control| HOV 63.7°| DVI-I
Hotline: 0918 642 886
2.41 Megapixel Full HD Camera experience 1080p@60 vivid images, equipped with 30x optical zoom lens, enhancing your video conferencing, distance learning, training meeting or courtrooms with natural and smooth video images. The DVI Video output interface is suited for Web conferencing software or codec which provide high-quality video display.
Features:
Private Tooling design High Definition PTZ camera
Fast and smooth video handling
Power ON-OFF switch
Work & Standby LED indicator
Speed Match
Auto/Manual focus/brightness/WB
RS-232C/VISCA Protocol
Lens/Dome OSD
Boundary scanning
Standby & wakeup status
Swap video format
DVI Video output
Performance:
1920x1080pixels progressive @30fps
30x optical, 12x digital zoom
F=4.3-129 mm F1.6-4.7
HOV 63.7 degree
1/2.8” Type Exmor CMOS 2.14 Mega Pixel Sensor
Pan ±177.5 degree
Tilt +90 degree, -45degree
64 preset positions
4 cruise lines
DC 12V, 2A
Dimension:
L 250mm x W 140mm x H154mm
N. Weight: 2.6kgs
G. Weight: 4.8kgs
Installation:
Desktop
Ceiling mount
Standard Tripod accessory
|
Model No. |
HD8830-SN7500 |
|
|
Image |
Image Sensor |
1/2.8" Type Exmor CMOS |
|
Effective Pix |
2.41 Megapixel |
|
|
Min. Illumination |
0.05Lux at F1.6 |
|
|
White balance |
Auto/Manual |
|
|
Gain control |
Auto/Manual |
|
|
Backlight compensation |
On/Off |
|
|
Shutter speed |
1/1 - 1/10,000S |
|
|
S/N ratio |
>50db |
|
|
Lens |
Focus |
f=4.3-129 mm F1.6-4.7 |
|
Iris |
Auto/Manual |
|
|
Lens |
30 Optical x 12 digital zoom |
|
|
Horizontal view angle |
63.7 |
|
|
Video output |
DVI |
|
|
Signal system |
1080P@60,1080P@50, 1080P@30,1080P@25, |
|
|
Control terminal |
EIA/RS232C,EIA/RS485(Bidirectional) |
|
|
Control Protocol |
VISCA,PELCO-D |
|
|
baud rate |
9600/38400bps |
|
|
patrol line |
4 cruise sequence |
|
|
preset position |
64 preset positions |
|
|
Speed Match |
Pan/Tilt movement speed depends on camera module zoom in/out |
|
|
OSD Menu |
Access to OSD Menu and adjust camera module parameters |
|
|
Image auto flp |
Support Horizontal/Vertical image flip |
|
|
Pan movement speed |
1-200°/Second |
|
|
Tilt movement speed |
1-150°/Second |
|
|
Pan movement range |
Pan: 0-355° |
|
|
Tilt movement range |
Up: 90°, Down: 45° |
|
|
Pan scanning automatically |
Support Pan scanning automatically |
|
|
Boundary scanning |
0-355°(programmable) |
|
|
Remote controller |
IR Wireless Remote controller P/T/Z |
|
|
Power supply |
DC12V,2A |
|
|
Work Temperature |
0-50℃ |
|
|
Humidity |
0-95%RH |
|
|
LxWxH |
250mm x 140mm x 154mm |
|
|
Weight |
1380g |
|
