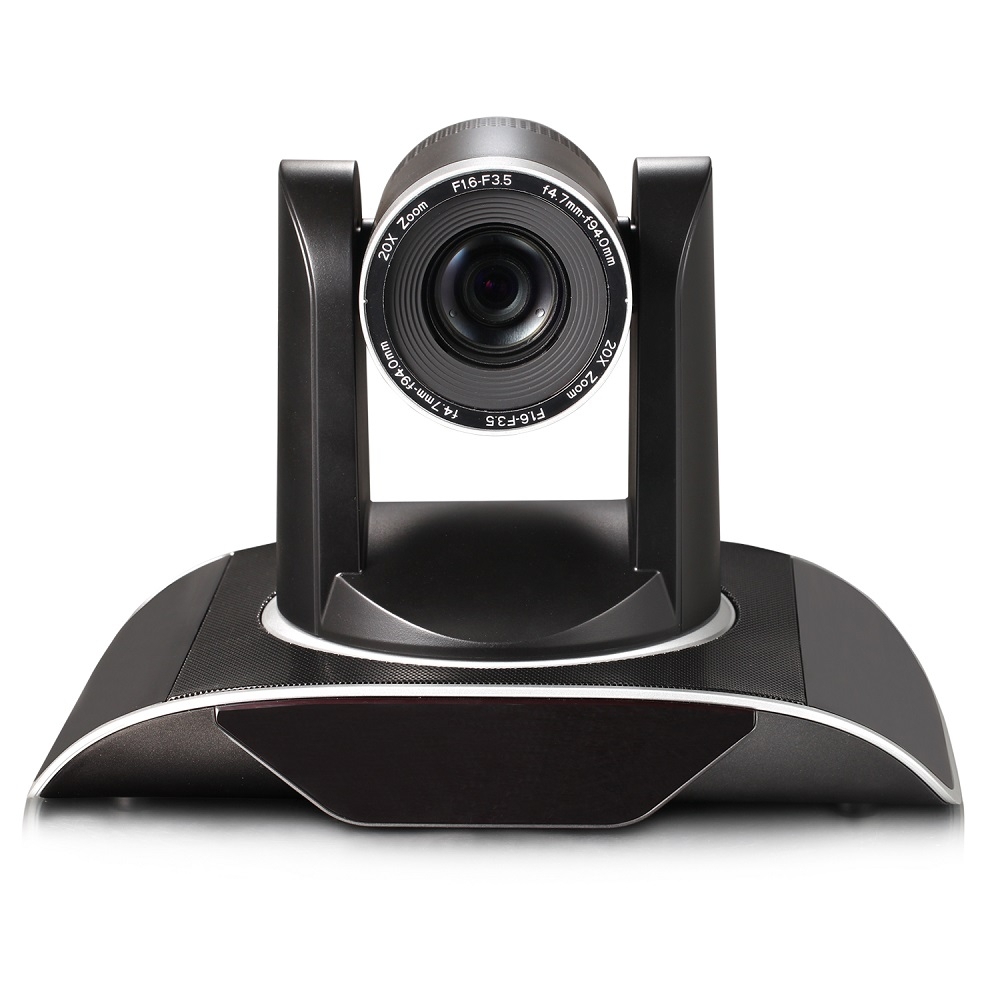

NDI HD Video Conference Camera UV950A Series
Mô tả ngắn
- 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps
- 12X/20X/30X optical zoom lens for options. 12x zoom lens is with 72.5 ° wide view angle without distortion
- Support H.264/H.264+ video compression;AAC, MP3 and PCM audio compression
- Support NDI (additional option),ONVIF,RTSP,RTMP protocols and support RTMP push mode
Hotline: 0918 642 886
NDI HD Video Conference Camera UV950A Series- Full HD, Wide View Angle, Multiple Video Interfaces. Multiple protocols.
UV950A series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.264+ encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Features:
- Superb High-definition Image: UV950A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
- Various Optical Zoom Lens: UV950A has 12X/20X/30X optical zoom lens for options. 12x zoom lens is with 72.5 ° wide view angle without distortion.
- Leading Auto Focus Technology: Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
- Low Noise and High SNR: Low Noise CMOS effectively ensure high SNR of camera video.Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
- Audio Input Interface (for future development): Support 16000,32000,44100,48000 sampling frequency and AAC,MP3,PCM audio coding.
- Wide-range, Quiet and Quick Pan/Tilt Mechanism: By adopting step driving motor mechanism,UV950A camera works extremely quiet and moves smoothly.
- Multiple Audio/Video compression: Support H.264/H.264+ video compression;AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
- Multiple Network Protocol: Support NDI (additional option),ONVIF,RTSP,RTMP protocols and support RTMP push mode,easy to link streaming media server (Wowza,FMS)
- Wide Application: Tele-education,lecture capture,Webcasting, Videoconferencing,Tele-training,Tele-medicine, Interrogation and Emergency command systems.
- Low-power sleep function: Support low-power sleep/wake up,the consumption is lower than 400mW under sleep mode.
|
Model |
UV950A-12 |
UV950A-20 |
UV950A-30 |
||
|
Camera Parameter |
|||||
|
Optical Zoom |
12X f＝3.9～46.1mm |
20X f＝5.57～110mm |
30X f＝4.3～129mm |
||
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
||||
|
Effective Pixels |
16: 9, 2.07 megapixel |
||||
|
Video Format |
SDI video format 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 |
||||
|
View Angle |
6.3°(tele)–72.5°(wide) |
3.3°(tele)–54.7°(wide) |
2.34°(tele)–65.1°(wide) |
||
|
AV |
F1.8 ～ F2.4 |
F1.6 ～ F3.5 |
F1.6 ～ F4.7 |
||
|
Digital Zoom |
10X |
||||
|
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
||||
|
DNR |
2D & 3D DNR |
||||
|
White Balance |
Auto / Manual/ One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
||||
|
Focus |
Auto/Manual/One key focus |
||||
|
Aperture |
Auto/Manual |
||||
|
Electronic Shutter |
Auto/Manual |
||||
|
BLC |
ON/OFF |
||||
|
WDR |
OFF/ Dynamic level adjustment |
||||
|
Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
||||
|
SNR |
>55dB |
||||
|
Input/Output Interface |
|
|
Video Interfaces |
UV950A-NDI model: 3G-SDI,DVI(HDMI), LAN, RS232(IN/OUT), RS485,A-IN |
|
Video output interfaces |
DVI(HDMI), HDMI, SDI, LAN, USB3.0, USB2.0 |
|
Image Code Stream |
Dual stream output |
|
Video Compression Format |
H.264, H.264+ |
|
Control Signal Interface |
RS-232(Input & Output), RS485 |
|
Control Protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate: 115200/9600/4800/2400bps |
|
Audio Input Interface |
A-IN: Double track 3.5mm linear input |
|
Audio Compression Format |
AAC, MP3, G.711A |
|
Network Interface |
100M IP port(100BASE-TX); 5G WiFi (optional), Support Visca protocol control through IP port. 10/100BASE-TX |
|
Network Protocol |
RTSP/RTMP, ONVIF, GB/T28181; NDI |
|
Power Interface |
HEC3800 outlet (DC12V) |
|
Power Adapter |
Input: AC110V-AC220V Output: DC12V/1.5A |
|
Input voltage |
DC12V±10% |
|
Input current |
1A (Max) |
|
Power Consumption |
12W (Max) |
|
PTZ Parameter |
|
|
Pan Rotation |
±170° |
|
Tilt Rotation |
-30°～+90° |
|
Pan Control Speed |
0.1 -100°/sec |
|
Tilt Control Speed |
0.1-45°/sec |
|
Preset Speed |
Pan: 100°/sec, Tilt: 45°/sec |
|
Preset Number |
255 presets (10 presets by remote controller) |
|
Other Parameter |
|
|
Store Temperature |
-10℃～+60℃ |
|
Store Humidity |
20%–95% |
|
Working Temperature |
-10℃～+50℃ |
|
Working Humidity |
20%–80% |
|
Dimension(WXHXD) |
258mmX172mmX169mm |
|
Weight (around) |
1.54KG |
|
Using environment |
Indoor |
|
Accessory |
|
|
Random Accessory |
12V/1.5A Power Supply, RS232 Control Line, Remote Controller, Manual, Warranty Card |
|
Optional Accessories |
Mounting Bracket |
