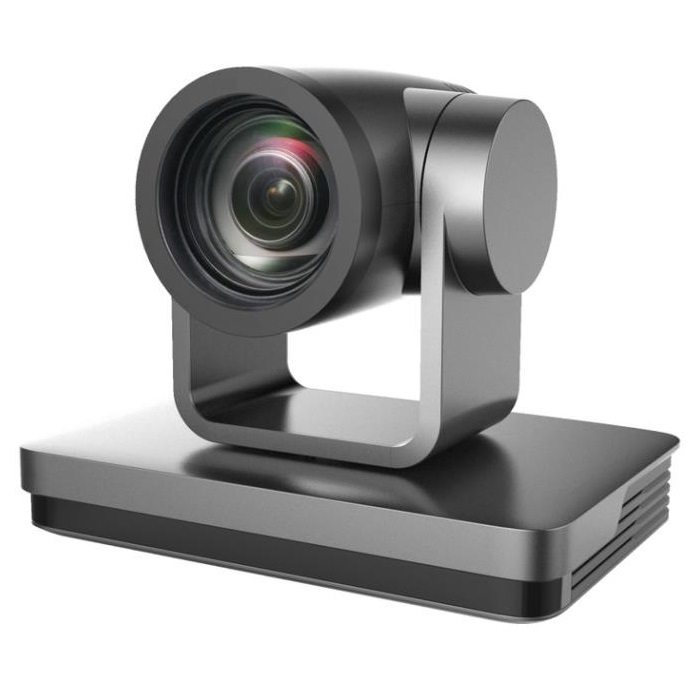

NDI HD Video Conference Camera UV570 Series
Mô tả ngắn
- 1/2.8 inch high quality CMOS sensor
- 5X, 12X, 20X, 30X optical zoom lens for selection; 5X lens has 83 degree wide angle with little distortion
- HDMI, SDI, USB3.0 and LAN ports for video output
- Support ONVIF,GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS,SRT, NDI protocols and support RTMP push mode
Hotline: 0918 642 886
NDI HD Video Conference Camera UV570 Series - Full HD, Wide View Angle, Multi-protocols,Multiple Video Interfaces.
The UV570 series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition.
Features:
- Superb High-definition Image: UV570 employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
- Multiple optical lens: 5X, 12X, 20X, 30X optical zoom lens for selection; 5X lens has 83 degree wide angle with little distortion.
- Leading Auto Focus Technology: Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
- Low Noise and High SNR: Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
- Multiple video output interfaces: HDMI, SDI, USB3.0 and LAN ports for video output. Both video and audio can be output from HDMI, SDI, LAN, USB3.0 at the same time. The transmission distance of SDI under 1080p60 is 100 meters.
- Supports dual code streams: Supports both main and sub-code streams output simultaneously; support YUY2, MJPEG, H.264, NV12, H.265 video encoding format.
- Built-in Gravity Sensor: Support automatic PTZ auto-flip function and easy to install.
- Multiple Network Protocols: Support ONVIF,GB/T28181, RTSP, RTMP, VISCA OVER IP, IP VISCA, RTMPS,SRT, NDI protocols and support RTMP push mode, easy to link streaming media server (Wowza, FMS).Supports RTP multicast mode.
- Control protocol: RS422(compatible with RS485), RS232-in, RS232-out, and RS232 interface supports cascade connection.
- Multiple Control Protocols: Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
- Extremely Quiet PTZ: Adopting step driving motor mechanism and motor drive controller with high precision is to ensure PTZ works smoothly with low speed and without noise.
- Multiple Preset: Support 255 preset positions (the remote controller is set to 10preset positions).
- Multiple Remote Controller: Users can choose infrared remote controller or wireless remote controller according to the environmental conditions.2.4G wireless remote controller is not affected by the angle, distance, infrared interference.
- Wide Application: Tele-education, Lecture Capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.
- Low-power Sleep Function: Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.
|
Model |
UV570-05 |
UV570-12 |
UV570-20 |
UV570-30 |
|
Camera Parameter |
||||
|
Optical Zoom |
05X f＝3.1～15.5mm |
12X f＝3.9～46.8mm |
20X f＝5.2～98mm |
30X f＝4.3～129mm |
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
|||
|
Effective Pixels |
16: 9, 2.07 megapixel |
|||
|
Video Format |
HDMI/SDI video format 1080P60/50/30/25, 1080I60/50, 720P60/50, 1080P59.94, 1080I59.94, 1080P29.97, 720P59.94, 720P29.97 USB3.0 interface video format Main Stream – YUY2/MJPEG/NV12/H.264/H.265: 1920×1080P30,1280×720P30,1024×576P30,960×540P30,800×448P30,720×480P30,640×360P30, 640×480P30,320×176P30 Sub Stream – YUY2/NV12: 640×360P30,640×480P30,320×176P30 MJPEG/H.264/H.265: 1920×1080P30,1280×720P30, 1024×576P30,960×540P30,800×448P30,720×480P30,640×360P30, 640×480P30,320×176P30 |
|||
|
View Angle |
20°（tele） 84°（wide） |
6.3°（tele） 72.5°（wide） |
3.2°（tele） 56°（wide） |
2.34°（tele） 65°（wide） |
|
AV |
F1.8 – F2.8 |
F1.8 – F2.4 |
F1.5 – F3.0 |
F1.6 – F4.7 |
|
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
|||
|
DNR |
2D & 3D DNR |
|||
|
White Balance |
Auto / Manual/ One Push/ Specify color temperature |
|||
|
Focus/Aperture/ Electronic Shutter |
Auto/Manual/One Push Focus |
|||
|
Exposure Mode |
Auto/Manual/Shutter priority/Aperture priority/brightness priority |
|||
|
Aperture |
F1.8 ～ F11 CLOSE |
|||
|
Shutter Speed |
1/25～1/10000 |
|||
|
BLC |
ON/OFF |
|||
|
DRC |
OFF/ Dynamic level adjustment |
|||
|
Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
|||
|
SNR |
≥50dB |
|||
|
Input/Output Interface |
||||
|
Video Interfaces |
UV570-05/12/20/30-SU Model: HDMI, SDI, LAN(POE), RS232-IN/OUT, RS422 & RS485, A-IN, USB3.0(type B compatible with USB2.0), DC12V, power switch UV570-05/12/20/30-U3 Model: HDMI,LAN(POE), RS232-IN/OUT, RS422 & RS485, A-IN, USB3.0(type B compatible with USB2.0), DC12V, power switch |
|||
|
Video Stream |
Dual stream output |
|||
|
Video Compression Format |
LAN Interface: H.265, H.264, dual stream output USB3.0 Interface: Main stream supports YUY2/MJPEG/H.264/NV12/H.265 Sub stream supports YUY2/MJPEG/H.264/NV12 |
|||
|
Audio Input Interface |
Double track 3.5mm linear input |
|||
|
Audio Output Interface |
HDMI, SDI, LAN, USB3.0 |
|||
|
Audio Compression Format |
AAC |
|||
|
Network Protocol |
RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, NDI(Optional) Support remote upgrade, reboot and reset |
|||
|
Control Interface |
RS232-IN, RS232-OUT, RS422 (compatible with RS485) |
|||
|
Control Protocol |
VISCA/Pelco-D/Pelco-P, Baud Rate: 115200/38400/9600/4800/2400bps |
|||
|
Power Interface |
HEC3800 outlet (DC12V) |
|||
|
Input Voltage |
DC12V±10% |
|||
|
Input Electric Current |
Maximum: 1A |
|||
|
Power Consumption |
Maximum: 12W |
|||
|
PTZ Parameter |
||||
|
Pan/Tilt Rotation |
±170°, -30°～+90° |
|||
|
Pan Control Speed |
0.1 -100°/sec |
|||
|
Tilt Control Speed |
0.1-45°/sec |
|||
|
Preset Speed |
Pan: 100°/sec, Tilt: 45°/sec |
|||
|
Preset Number |
255 presets (10 presets by remote controller) |
|||
|
Other Parameter |
||||
|
Stored Temperature |
-10℃~+60℃ |
|||
|
Storage Humidity |
20%~95% |
|||
|
Working Temperature |
-10℃~+50℃ |
|||
|
Working Humidity |
20%~80% |
|||
|
Dimension |
181mmX115mmX149mm |
|||
|
Weight |
1.15KG |
|||
|
Attachment |
||||
|
Package |
Power Supply, RS232 control cable, USB3.0 connection cable, Remote Control, User Manual |
|||
|
Optional Accessories |
Ceiling / Wall Mount (Extra Cost) |
|||
