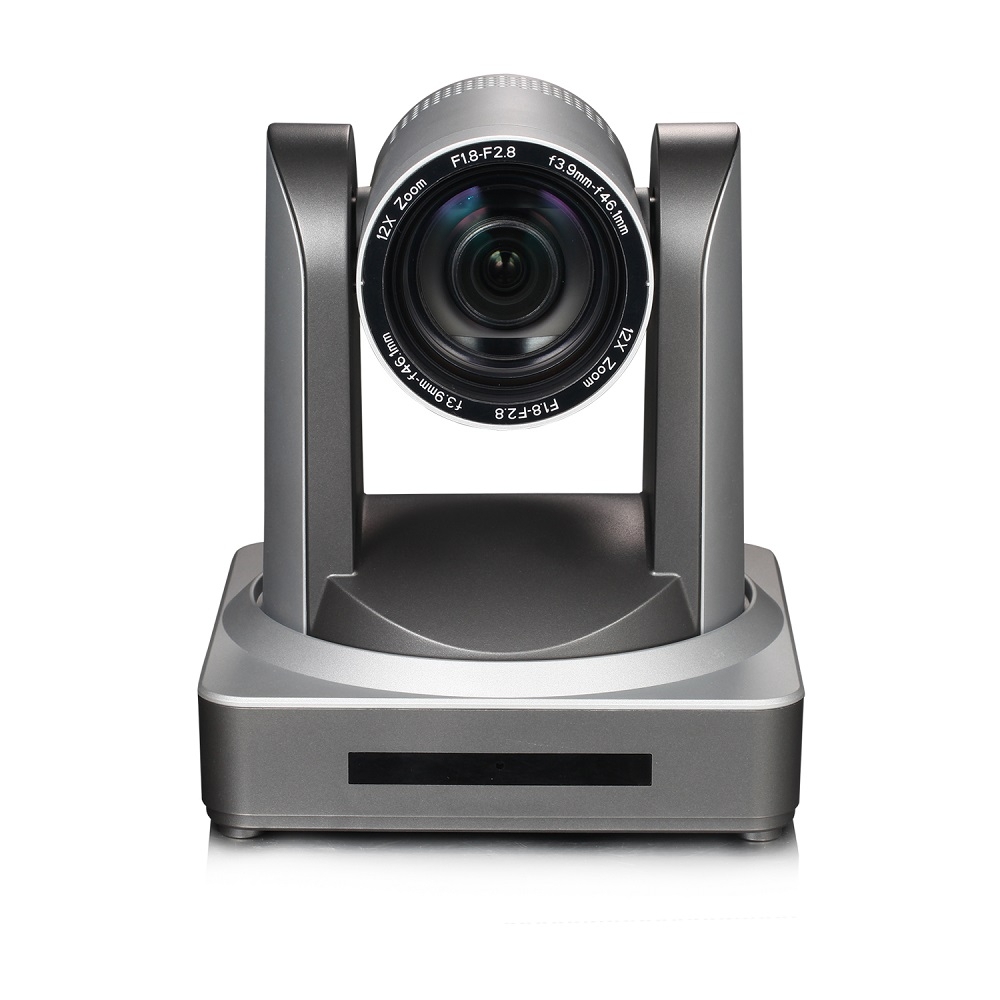

NDI HD Video Conference Camera UV510A Series
Mô tả ngắn
- 1/2.8 inch high quality CMOS sensor
- Resolution is up to 1920×1080 with frame rate up to 60fps
- Low Noise CMOS effectively ensure high SNR of camera video
- Support H.264/H.264+ video compression
- AAC, MP3 and PCM audio compression
- Support NDI®, ONVIF, RTSP, RTMP protocols and support RTMP push mode
Hotline: 0918 642 886
NDI HD Video Conference Camera UV510A Series - Full HD, Wide View Angle, Multi-protocols,Multiple Video Interfaces.
The UV510A series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.264+ encoding which makes motion video fluent and clear even under less than ideal bandwidth conditions.
Features:
- Superb High-definition Image: UV510A employs 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920×1080 with frame rate up to 60fps.
- Leading Auto Focus Technology: Leading auto focus algorithm makes lens a fast, accurate and stable auto-focusing.
- Low Noise and High SNR: Low Noise CMOS effectively ensure high SNR of camera video. Advanced 2D/3D noise reduction technology is also used to further reduce the noise, while ensuring image sharpness.
- Audio Input Interface (for future development): Support16000,32000,44100,48000sampling frequency and AAC,MP3,PCM audio coding.
- Wide-range, Quiet and Quick Pan/Tilt Mechanism: By adopting step driving motor mechanism, UV510A camera works extremely quiet and moves smoothly .
- Multiple Audio/Video compression: Support H.264/H.264+ video compression; AAC, MP3 and PCM audio compression; Support compression of resolution up to 1920×1080 with frame up to 60fps and 2 channel 1920x1080p with 30fps compression.
- Multiple Network Protocol: Support NDI®, ONVIF, RTSP, RTMP protocols and support RTMP push mode, easy to link streaming media server (Wowza, FMS)
- RS-232 Cascade Function: Support RS-232 cascade function which is convenient for installation.
- Wide Application: Tele-education, lecture capture, Webcasting, Videoconferencing, Tele-training, Tele-medicine, Interrogation and Emergency command systems.
- Low-power sleep function: Support low-power sleep/wake up, the consumption is lower than 400mW under sleep mode.
|
Model |
UV510A-05 |
UV510A-10 |
UV510A-12 |
UV510A-20 |
UV510A-30 |
||
|
Camera Parameter |
|||||||
|
Optical Zoom |
5X f＝3.6～15.5mm |
10X f＝4.7～47mm |
12X f＝3.9～46.8mm |
20X f＝5.2～110mm |
30X f＝4.3～129mm |
||
|
Sensor |
1/2.8 inch high quality HD CMOS sensor |
||||||
|
Effective Pixels |
16: 9, 2.07 megapixel |
||||||
|
Video Format |
SDI video format 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 |
||||||
|
View Angle |
20°(tele) 83.7°(wide) |
6.43°(tele) 60.9°(wide) |
6.3°(tele) 72.5°(wide) |
3.3°(tele) 54.7°(wide) |
2.34°(tele) 65.1°(wide) |
||
|
AV |
F1.6 – F3.0 |
F1.6 – F3.0 |
F1.8 – F2.4 |
F1.6 – F3.5 |
F1.6– F4.7 |
||
|
Digital Zoom |
10X |
||||||
|
Minimum Illumination |
0.1Lux |
||||||
|
DNR |
2D & 3D DNR |
||||||
|
White Balance |
Auto / Manual/ One Push/ 3000K/ 4000K/5000K/6500K |
||||||
|
Focus/Aperture/Electronic Shutter |
Auto/Manual |
||||||
|
BLC |
ON/OFF |
||||||
|
WDR |
OFF/ Dynamic level adjustment |
||||||
|
Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
||||||
|
SNR |
>55dB |
||||||
|
Input/Output Interface |
|||||||
|
Video Interfaces |
UV510A-NDI model: SDI, HDMI, LAN(NDI),RS232(In & Out), RS485, A-IN |
||||||
|
Video Compression Format |
H.264, H.264+, Dual stream output |
||||||
|
Control Protocol |
VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps |
||||||
|
Audio Input Interface |
Double track 3.5mm linear input |
||||||
|
Audio Compression Format |
AAC/MP3/PCM Audio compression |
||||||
|
HD IP Interface |
100M IP Port(100BASE-TX); Support VISCA protocol control through IP port. |
||||||
|
Network Protocol |
RTSP, RTMP, ONVIF, GB/T28181, NDI |
||||||
|
Power Interface |
HEC3800 Outlet (DC12V) |
||||||
|
PTZ Parameter |
|||||||
|
Pan/TiltRotation |
±170°,-30°～+90° |
||||||
|
Pan Control Speed |
0.1 -60°/sec |
||||||
|
Tilt Control Speed |
0.1-30°/sec |
||||||
|
Preset Speed |
Pan: 60°/sec, Tilt: 30°/sec |
||||||
|
Preset Number |
255 presets (10 presets by remote controller) |
||||||
|
Other Parameter |
|||||||
|
Supply Adapter |
AC110V-AC220V to DC12V/1.5A |
||||||
|
Dimension |
150mmX150mmX167.5mm |
||||||
|
Weight |
1.4KG |
||||||
|
Remote Operation (IP) |
Remote Upgrade, Reboot and Reset |
||||||
|
Accessory |
|
||||||
|
Random Accessory |
12V/1.5A Power Supply, RS232 Control Line, Remote Controller, Manual, Warranty Card |
||||||
|
Optional Accessories |
Mounting Bracket |
||||||
