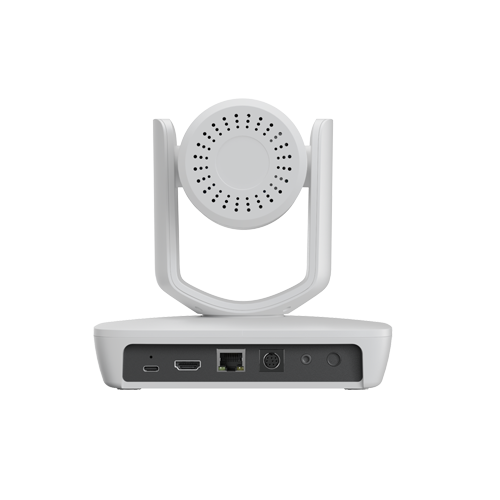

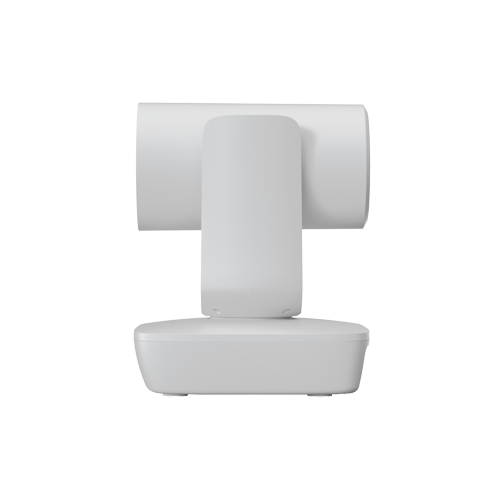

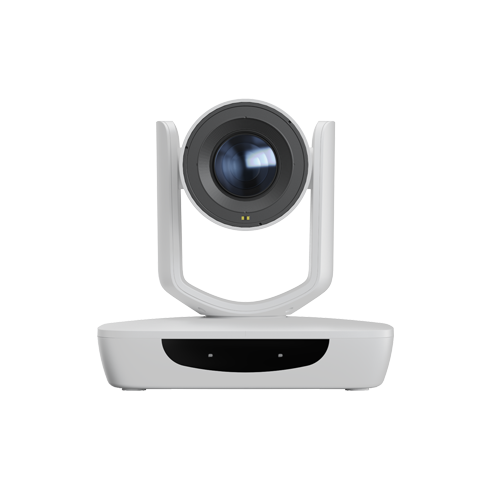

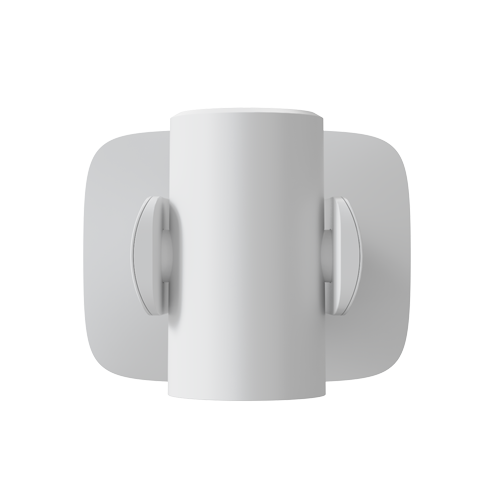

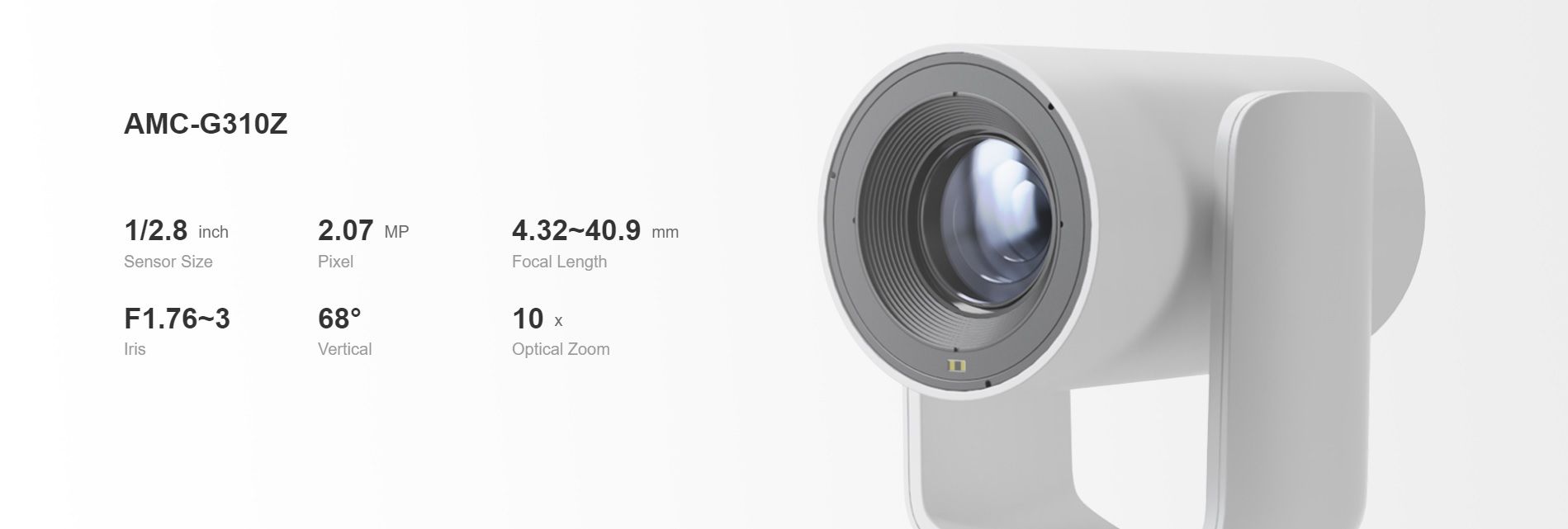

Ismart HD PTZ Streaming Camera AMC-G310Z
2.07MP CMOS, up to 1080P60 video output;
10X optical zoom with 16X digital zoom, ideal for both full-view and close-up shots;
Time of Fly (TOF) aux focus, fast focus of objects in short distance;
USB3.0(compatible with USB2.0) Type-C, supports simultaneous audio and video outputs, Plug-N-Play;

AMC-G310Z adopts high-quality CMOS image sensor with resolution up to 1080P60 and high-performance low-power SoC professional chip platform to guarantee long time smooth streaming.
Adopts a high-performance low-power SoC professional audio and video chip platform, with image processing algorithm independently developed by iSmart Video, which makes the image color natural, and image details rich.
With 10X optical zoom and 16X digital zoom to easily meet the requirements of close-up and panorama views in various live studios. Suitable for most streaming scenes, 71°wide viewing angle high quality lens with High precision PTZ to meet your streaming needs.
With the TIME OF FLY technology, the camera will focus on the target in the live room more quickly and accurately because of this technology, to guarantee long time smooth streaming.
Features:
- Portrait shooting mode as default. Switch between portrait mode and landscape mode does not cause video loss;
- 2.07MP CMOS, up to 1080P60 video output;
- 10X optical zoom with 16X digital zoom, ideal for both full view and close-up shots;
- Time of Fly (TOF) aux focus, fast focus of objects in short distance;
- Tally light to indicate camera switch during streaming;
- USB3.0(compatible with USB2.0) Type-C, supports simultaneous audio and video outputs, Plug-N-Play;
- HDMI supports direct output of raw 1080P60 video output;
- 2.4G wireless remote.
|
Model |
AMC-G310Z |
|
Camera |
|
|
Image Sensor |
1/2.8” CMOS, 2.07MP |
|
Focal Length |
f=4.32~40.9mm |
|
Iris |
F1.76 ~ F3 |
|
Optical Zoom |
10X |
|
Digital Zoom |
16X |
|
HFOV |
V: 68°; H: 41° |
|
Focus |
Auto/Manual |
|
Shutter Speed |
1/50~1/800s |
|
AGC |
Auto/Manual |
|
White Balance |
Auto/Manual/One Push Trigger/Auto Tracking |
|
AE Control |
Auto/Manual/Shutter Priority/Iris Priority |
|
SNR |
≥50dB |
|
Others |
|
|
Aux Focus |
TOF Assisted Focusing |
|
Remote |
20m, 360°Wireless remote control |
|
Firmware Upgrade |
USB |
|
PTZ |
|
|
Pan Angle |
-170°~+170°, 0.2°~80°/s |
|
Tilt Angle |
-30°~+90°, 0.1°~60°/s |
|
Preset Number |
64(LAN) |
|
Interface |
|
|
USB |
USB3.0(compatible USB2.0) Type-C, power over USB 1.UVC Support UVC1.1 2.UVC Support YUY2/NV12: 1080P30/P25, 720P60/P50/P30/P25, 360P60/P50/P30/P25 3.H.264/H.265/MJPEG: 1080P60/P50/P30/P25, 720P60/P50 4.UAC Audio foramt PCM |
|
HDMI |
1 × HDMI, support audio output, 1080P60/P50/P30/P25, 720P60/P50 |
|
Network |
10/100M RJ-45, POE Supported. 1.1080P60/P30/P25, 720P60/P50/P30/P25, 360P30/P25 2.Video Format: H.264/H.265; 3.Audio Compression: AAC; |
|
Audio |
1 × LINE IN, 3.5mm |
|
Control Interface |
1 × RS-232 IN |
|
General |
|
|
Control Protocol |
VISCA |
|
Power |
DC12V; <12W |
|
Operating Environment |
Temperature: 0°C~ +40°C, Relative Humidity: 10%RH~ 90%RH |
|
Storage Environment |
Temperature: -20°C ~ +60°C, Relative Humidity: 10%RH ~ 95%RH |
|
Dimensions(W*D*H) |
176mm×137mm×171mm |
|
Weigh |
1.2kg |
Ismart AC3 1080P NDI Camera For Outdoor AC3-NS3003N
Image Sensor: 1/2.8" Progressive Scan CMOS, 2.13MP
Optical Zoom: 30X, Digital Zoom: 12X
Image Resolution Max: 1920 * 1080@30fps
Interface: CVBS, RJ45 10/100M(NDI | HX)
Ismart 1080P NDI Camera Series for Indoor HMC-NS3003N
NDI®|HX supported
Image Sensor: SONY EXMOR CMOS 1/2.8" CMOS, 2.14MP
Zoom Optical: 30X, Digital: 12X, up to 63.7° FOV SONY module
Resolution Max support 1080P60
Interface: 1x3G-SDI, 1xHDMI, RJ45
Ismart AMC 1080P NDI Camera Series for Indoor AMC-NE220NV3
Image Sensor: 1/2.8" Exmor CMOS, 2.14MP
Optical Zoom: 20X, Digital Zoom: 12X
Field of View: 59.5°~ 2.9°
Max. Image Size: 1920x1080@60fps
Interface: HDMI, 3G-SDI, RJ45(NDI | HX), USB2.0
Ismart 4K NDI Camera Series for Indoor AMC-NH1202
Image Sensor: 1/1.8”CMOS, 8.41MP
Zoom Optical: 12X, Digital: 12X
Field of View: 82.6°~8°
Max Image Size: 3840x2160@30fps
Video Output: HDMI, 3G-SDI, HDBaseT(optional)
