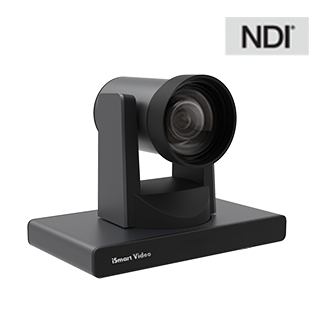

Ismart 4K NDI Camera Series for Indoor AMC-NH1202
Mô tả ngắn
Ismart 4K NDI Camera Series for Indoor AMC-NH1202
Image Sensor: 1/1.8”CMOS, 8.41MP
Zoom Optical: 12X, Digital: 12X
Field of View: 82.6°~8°
Max Image Size: 3840x2160@30fps
Video Output: HDMI, 3G-SDI, HDBaseT(optional)
Hotline: 0918 642 886
Features:
-NDI® technology makes video creation and sharing accessible, easy and fun for millions, giving everyone access to abundant and diverse live content with video, control and power over one single Ethernet cable simply, with very high-quality and very low-latency video transport.
-1/1.8" high quality CMOS sensor, with max.4K@30fps resolution, giving superb clarity, color, and details;
-Connect and with ease, providing Ethernet, HDMI, 3G-SDI and optional HDBaseT outputs；
-4K wide angle lens, 12x optical zoom, max 82° FOV;
-Dual stream, supports multi-level image quality configuration;
-1 audio input;
-TF card supports maximum 64G storage;
-VISCA in and out, Daisy Chain, PELCO-P, PELCO-D;
-OLED screen to display necessary information;
-Desktop, ceiling and wall mounting options.
|
Model |
AMC-NH1202 |
|
Camera |
|
|
Image Sensor |
1/1.8”CMOS, 8.41MP |
|
Focal |
f=4.2mm~50.4mm |
|
Iris |
F1.8~F2.8 |
|
Zoom |
Optical: 12X, Digital: 12X |
|
Field of View |
82.6°~8° |
|
Focus |
Auto, Manual, PTZ Push, One Push |
|
Shutter Speed |
1/25~1/10,000s |
|
AGC |
Auto, Manual |
|
White Balance |
Auto, Indoor, Outdoor, One Push, Auto Track |
|
AE Control |
Auto, Manual, Shutter Priority, Iris Priority |
|
SN Ratio |
≥50dB |
|
DNR |
2D/3D |
|
BLC |
Yes |
|
WDR |
Yes |
|
PTZ |
|
|
Pan |
-170°~+170°, 0.1°~120°/ S |
|
Tilt |
-30°~+90°, 0.1°~80°/ S |
|
Preset Number |
256 |
|
OSD |
Yes |
|
Video Format |
|
|
Video Output |
4KP30/25, 1080P60/50/30/25, 1080I60/50, 720P60/50 |
|
Network |
|
|
Max Image Size |
3840x2160@30fps |
|
Video Compression |
H.265/H.264 |
|
Audio Compression |
AAC |
|
Protocol |
HTTP, TCP, UDP, RTSP, RTMP, ONVIF |
|
Dual Stream |
Support |
|
Interface |
|
|
Video Output |
HDMI, 3G-SDI, HDBaseT(optional) |
|
Audio Input |
1xLINE IN |
|
Network Interface |
10M/100/1000M, POE(optional) |
|
USB Interface |
1xUSB3.0(Reserved) |
|
Comm Interface |
RS-232 IN, RS-232 OUT, RS-485 |
|
General |
|
|
Control Protocol |
VISCA and Support Daisy Chain, PELCO-P, PELCO-D |
|
Power Supply |
DC12V |
|
Power Consumption |
<20W |
|
Working Temperature |
0°C ~ + 40°C |
|
Storage Temperature |
-20°C ~ +60°C |
|
Dimension(LxWxH) |
248mm x145mm x194mm |
|
Weight |
2.2KG |
