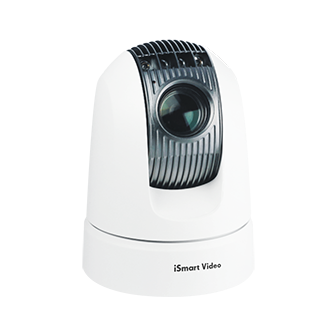

Ismart 1080P NDI Camera For Outdoor AC3-NS3003N
Mô tả ngắn
Ismart AC3 1080P NDI Camera For Outdoor AC3-NS3003N
Image Sensor: 1/2.8" Progressive Scan CMOS, 2.13MP
Optical Zoom: 30X, Digital Zoom: 12X
Image Resolution Max: 1920 * 1080@30fps
Interface: CVBS, RJ45 10/100M(NDI | HX)
Hotline: 0918 642 886
Features:
- 1/2.8” CMOS, 2.13mega pixel, 30x optical zoom;
- Support NDI | HX output;
- Up to 1080P30 output;
- H.265, H.264 video compression, dual stream;
- IR/White lighting system, rang up to 60 meters;
- TF card for local storage;
- 10.8-28V voltage input;
- Auto power-off with low power supply.
|
Model |
AC3-NS3003N |
|
Camera |
|
|
Image Sensor |
1/2.8" Progressive Scan CMOS, 2.13MP |
|
Active Pixel |
1920(H) x 1080(V) |
|
Signal System (NET) |
1080P30/P25, 720P60/P50/P30/P25 |
|
Signal System (SD) |
PAL / NTSC |
|
Min Illumination |
Color: 0.5Lux; B/W: 0.1Lux |
|
WB |
Auto |
|
Focus |
Auto / Manual |
|
Exposure |
Auto / Manual |
|
S/N Ratio |
Not less than 50 dB |
|
BLC |
On / Off |
|
WDR |
On / Off |
|
Digital Noise Reduction |
1-5 Steps/Off |
|
Digital Image Stabilization |
No |
|
D / N ICR |
Auto / Manual |
|
Lens |
|
|
Optical Zoom |
30X |
|
Digital Zoom |
12X |
|
Focal |
f=4.3mm~ 129mm |
|
IRIS |
F1.6 ~ F4.7 |
|
View Angle |
63.7° ~ 2.3° |
|
PTZ |
|
|
Pan Range |
360°Continuous |
|
Pan Speed |
Control Speed: 0.1° ~ 60°/s, adjustable; Preset Speed: 60°/s |
|
Tilt Range |
-15°~90°(Auto Flip) |
|
Tilt Speed |
Control Speed: 0.2° ~ 60°/s, adjustable; Preset Speed: 60°/s |
|
Preset |
256 |
|
Preset Precision |
±0.2° |
|
IR Light |
|
|
Wave Length |
850nm |
|
Range |
60m |
|
Switch |
Auto / Manual |
|
Network |
|
|
Image Resolution |
Max: 1920 * 1080@30fps |
|
Image Compression |
H.264, H.265 |
|
Audio Compression |
AAC |
|
Protocols |
HTTP, RTSP, TCP, UDP, ONVIF |
|
No.of Users Access |
Up to 10 |
|
Dual Stream |
Support |
|
Interface |
|
|
Audio Interface |
1 LINE IN, 1 LINE OUT |
|
Video Output (SD) |
CVBS1.0V[p-p]/75Ω, PAL or NTSC |
|
Ethernet Interface |
10/100M(NDI | HX) |
|
Comm Interface |
RS-485 |
|
General |
|
|
OSD |
English |
|
Address |
0~255 |
|
Comm. Protocol |
PELCO-P / PELCO-D (Self-Adaptive) |
|
Baud Rate |
2400bps/4800bps/9600bps/19200bps (Self-Adaptive) |
|
Voltage |
DC10.8 ~ 28V |
|
Power |
Min: 9W; Max: 20W |
|
Working Temperature. |
-30°C ~ +65°C |
|
IP Index |
IP66 |
|
Dimension |
Φ136(mm) x 185(mm) |
|
Weight |
Standard: 2.1(±0.2)kg |
