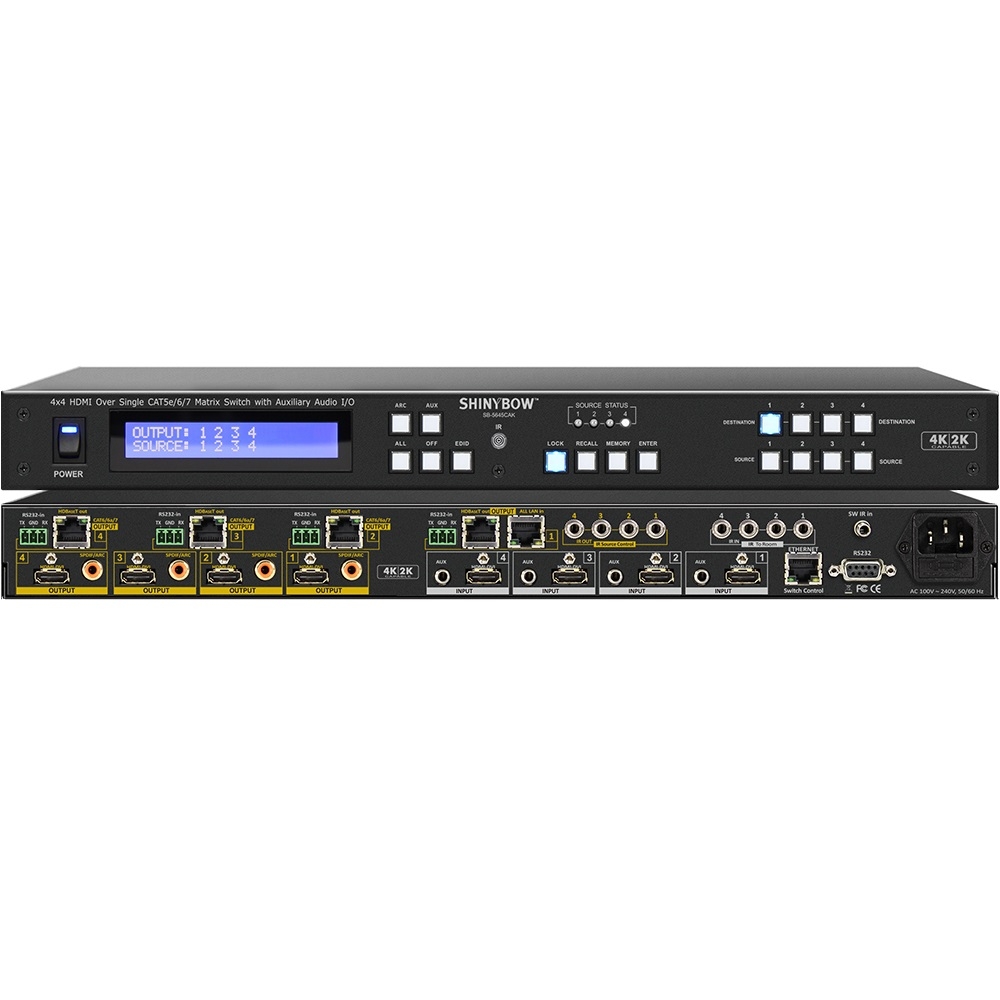

Ma trận chuyển mạch 4x4 HDMI SB-5645CAK (4K)
Mô tả ngắn
Shinybow SB-5645CAK (4K) 4x4 HDMI HDBaseT Matrix Switch Auxiliary Audio
Input : 4x HDMI, 4x Auxiliary Audio
Output : 4x HDMI, 4x S/PDIF or ARC, 4x HDBaseT (PoH)
Hotline: 0918 642 886
The SB-5645CAK is a professional 4x4 HDMI™ over HDBaseT™ Matrix Routing Switcher. Supporting (4)HDMI™ inputs and (4) Auxiliary Audio inputs. Output supported (4)HDMI™ outputs, (4)S/PDIF Audio and and (4) HDBaseT™ Transmitter with POH outputs(SB-5645CAP only). High definition digital signals can be selected and distributed to any (4)inputs to (8)outputs simultaneously(channel outputs mirrored). It is based on HDBaseT™ Standard and transmit HDMI™, Bidirectional IR and RS-232 and Ethernet signal up to 100M over a single CATx cable. The switcher is supported HDMI™ 1.4a 3D formats and HDCP 1.3 compliant, data rate up to 6.75Gbps with signal bandwidth 340MHz. Supports wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV HDMI™ resolution up to 4K2K 30Hz. The EDID management can be selected between seven(7) different modes. Control is provided via Front panel push buttons, IR remote, RS-232 pr TCP/IP(not a web-browser). An RS-232 Windows GUI interface is provided for matrix routing control(Windows only).
01. Support 4x HDMI digital source devices Matrix to 4x HDMI and 4x HDBaseT destinations
02. Transmit HDMI, Bidirectional IR and RS-232 signals via single CATx cable
03. HDMI digital Video w/embedded HDCP, DVI format and CEC/HDCP 1.3 compliant
04. Link speeds of up to 6.75 Gbps (link clock rate of 340MbHz), Support HDMI 4K2K,
1.4a 3D formats
05. Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV
HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p & 4K2K (24/30Hz)
06. Digital Video TMDS formats Resolution up to 4K2K with Deep color 36-bit.
07. Digital Audio Support : Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD,
DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
08. Audio Input : Support Auxiliary Audio (Analog stereo audio)
09. Audio Output : Support Digital audio ARC or Digital audio S/PDIF
( from HDMI source or Auxiliary Audio )
10. Various User Interface controls :
• Windows based GUI control via RS-232 port
• Front Panel push button
• IR wireless remote controller
• Ethernet Switch control
• Third party RS-232 controller (via simple ASCII)
11. Support world wide (9)x control function keys :
Full function front panel controls :
ARC / AUX/ ALL / OFF / EDID / LOCK / RECALL / MEMORY / ENTER
12. Supports seven (7) worldwide standard embedded EDID modes
13. Automatic scanning input & output status via LCM show on front panel
14. Using the build-in booster, each HDMI Output port is capable of driving cable lengths
1080p up to 98 feet (30M) & 4K2K up to 66 feet (20M)
15. Support IR Remote and IR Extender with distance up to ~ 984 feet (300M) Maximum
16. Support Universal power adaptor AC100V~240V, 50/60Hz
|
Type of HDMI Switcher |
4x inputs To 4x Outputs HDMI over HDBaseT Matrix Switch with |
|
HDMI Support |
HDMI 1080P, 4K2K-30Hz, 36-bit Deep color, HDMI V1.4a 3D formats |
|
HDBaseT Support |
bi-directional IR, RS-232, Multi format Audio, LAN and PoH. over one |
|
PoE Support |
HDBaseT Transmitter Power 48VDC Over category cable PoH |
|
HDCP / CEC Support |
HDCP 1.3 Compliant, CEC Compliant |
|
Video Bandwidth |
Double Data Rates: 340Mhz, Total 6.75Gbps bandwidth |
|
Video Input |
4x HDMI (HDMI or DVI digital source) |
|
Audio Input |
4x Audio (Analog Stereo, AUX port. 3.5mm Jack) |
|
Video Output |
4x HDMI (To Destination) |
|
Audio Output |
4x S/PDIF : Multi Audio Formats 5.1 from HDMI or LPCM-2CH from |
|
HDBaseT Control In |
4x IR in, 1x ALL, IR, in (Send IR Signals to Room) |
|
HDBaseT Control Out |
4x IR out, 1x ALL, IR, out (Send IR Signals from Room), 1x LAN |
|
HDBaseT Control I/O |
4x RS-232 I/O |
|
Switch Controls |
1x Select & Function buttons on front panel |
|
Source Status |
Input status LEDs indicates presence of a live signal |
|
(17) Function Control Keys |
1.ARC, 2.AUX, 3.ALL, 4.OFF, 5.RECALL, 6.ENTER, |
|
Infrared Frequency |
38 Khz |
|
HDMI Booster |
1080p up to~98feet(30M) & 4K2K up to~66feet(20M) |
|
IR External Distance |
~984 feet / 300 meters maximum |
|
HDBaseT Extender Distance |
~328 feet / 100 meters maximum |
|
HDMI I/O Connector |
HDMI Type A - SMD 19pin Female Type |
|
Temperature |
Operating Temperature 32°F - 100°F (0°C - 32°C) |
|
Dimension (WxDxH) |
19" x 9.85" x 1.73" (482mm x 250mm x 44mm) |
|
Rack Mount |
1RU High 19" Rack Mount #1U-440L (with rack mount) |
|
Power Supply |
AC 100~240 VAC 50/60Hz |
|
Safety Approvals |
CE, FCC, REACH |
|
Weight |
2.55 Kg / 5.61 lb |
