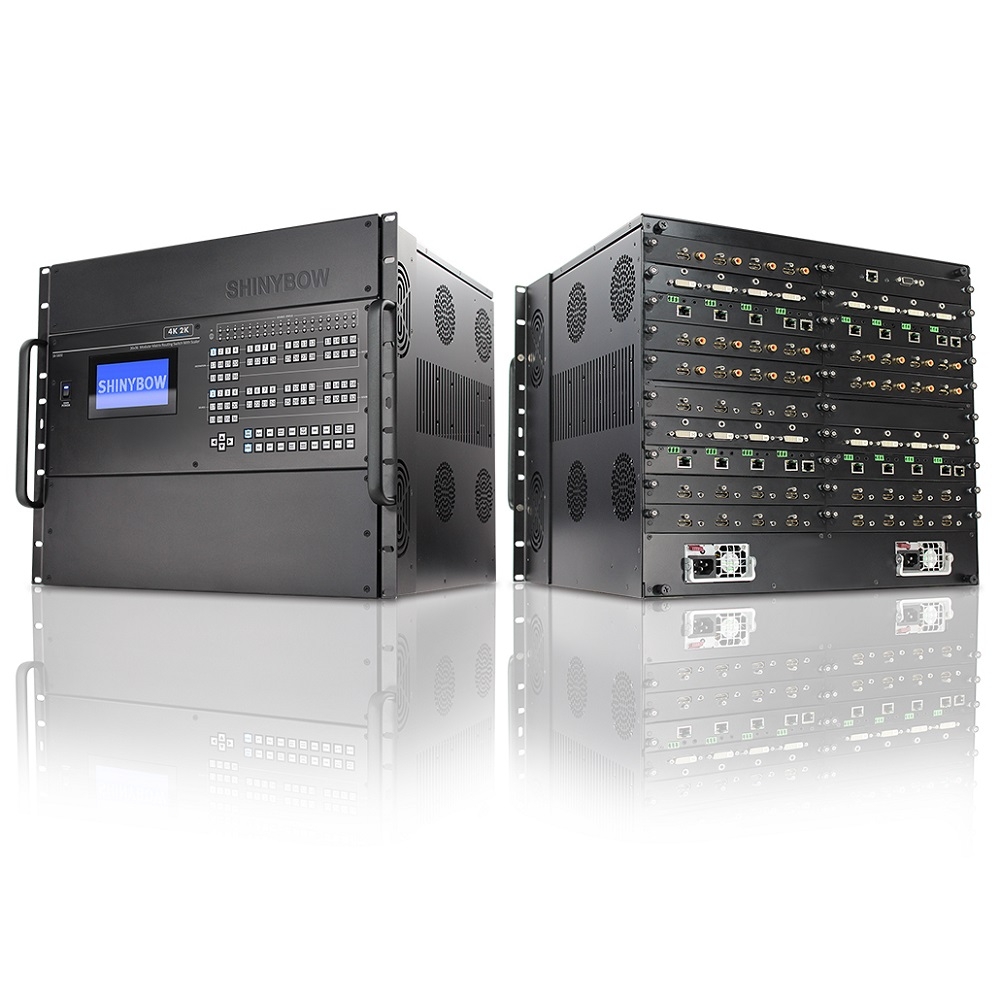

Modular ma trận chuyển mạch 36x36 SB-5800 (4K)

Type of Switcher

(36)x inputs To (36)x Outputs Matrix Switch with (4) ports per one Modular

Video Bandwidth

Double Data Rates : 340Mhz, 6.75Gbps bandwidth

HDMI Support

HDMI 4K2K(24/30Hz), 1080P-@60Hz, 3D of HDMI V1.4 formats. HD : 480i / 480p / 720p / 1080i/p and 4K2K (3860x2160) up to 36bit deep color. HDCP 1.3 Compliant, CEC Compliant

DVI Support

DVI digital Video with DVI format. Wide range of HD resolutions from PC XGA to WUXGA 1920x1200. Digital Video TMDS formats. Support stereo audio

HDBaseT Support

HDBaseT bi-directional IR, RS-232, Multi format Audio, Ethernet and PoE(Tx). over one CATx category cable

Video Input

36 inputs with 4 ports multi format modular cards

Video Output

36 outputs with 4 ports multi format modular cards

Audio Output

Multi Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master,
(PCM-2CH)

HDBaseT Control in

36x IR in (Send IR signals To 16x Rooms via HDBaseT Transmitter)

HDBaseT Control out

36x IR out (Link to Receive IR signals from 36x Rooms via HDBaseT Extender)

HDBaseT Controls

36x RS-232 I/O (Control 36x Rooms RS-232 via Switcher HDBaseT Extender Tx)
Maximun 9x LAN (Switch1-4, 5-8, 9-12, 13-16, 17-20, 21-24, 25-28, 29-32 & 33~36 output port HDBaseT Transmitter Ethernet link to HDBaseT Receivers)

Switch Controls

1x   Select & Function buttons on front panel
(Data status via LCM panel show out)
1x   IR Remote Controller (switch control)
36x IR Room Remote Controller (switch control)
1x   IR External port (switch control via 3.5mm OD Jack)
1x   RS 232 series interface (switch control)
1x   Ethernet series interface (switch control)

Source Status

Input status LEDs indicates presence of a live signal

Function Keys

ALL, OFF, RECALL, ENTER, MEMORY, LOCK, EDID, AUX, ARC, MENU, HDBT, PiP/PoP, SW, VM, CH SELECT, RESOLUTION, RESET, ZOOM, TV SYS, IP CH, UP, DOWN, RIGHT, LIFT, Destination button (1) thru (36), Source button (1) thru (36)

EDID management

Select Embedded EDID modes : Fast Speed Start®, H24-3D, H24-3D-M, H36-3D, H36-3D-M, 4K2K-3D, PCM-2CH, DVI-D 1920x1200-60Hz Select Single Learning mode-1 or Multiple Learning mode-2 Learning Destination EDID To Link Source

Learning Mode

Learning Destination EDID To Link Source

Infrared Frequency

38 Khz

HDMI Booster

1080p up to~98feet (30M) & 4K2K up to~66feet (20M)

IR Distance

~984 feet / 300 meters maximum

HDBT Distance

~328 feet / 100 meters maximum

HDMI I/O

HDMI Type A - SMD 19pin Female Type

Temperature

Operating Temperature 32°F - 100°F (0°C - 32°C)

Dimension (WxDxH)

17.4" x 15.87" x 15.59" (442mm x 403mm x 396mm)

Rack Mount

9RU High 19" Rack Mount # 9U-440L (with rack mount)

Power Supply

AC 100~240 VAC 50/60Hz (Power Consumption:20A Maximum)

Safety Approvals

CE, FCC, REACH

Weight

45 Kg / 99.45 lb
