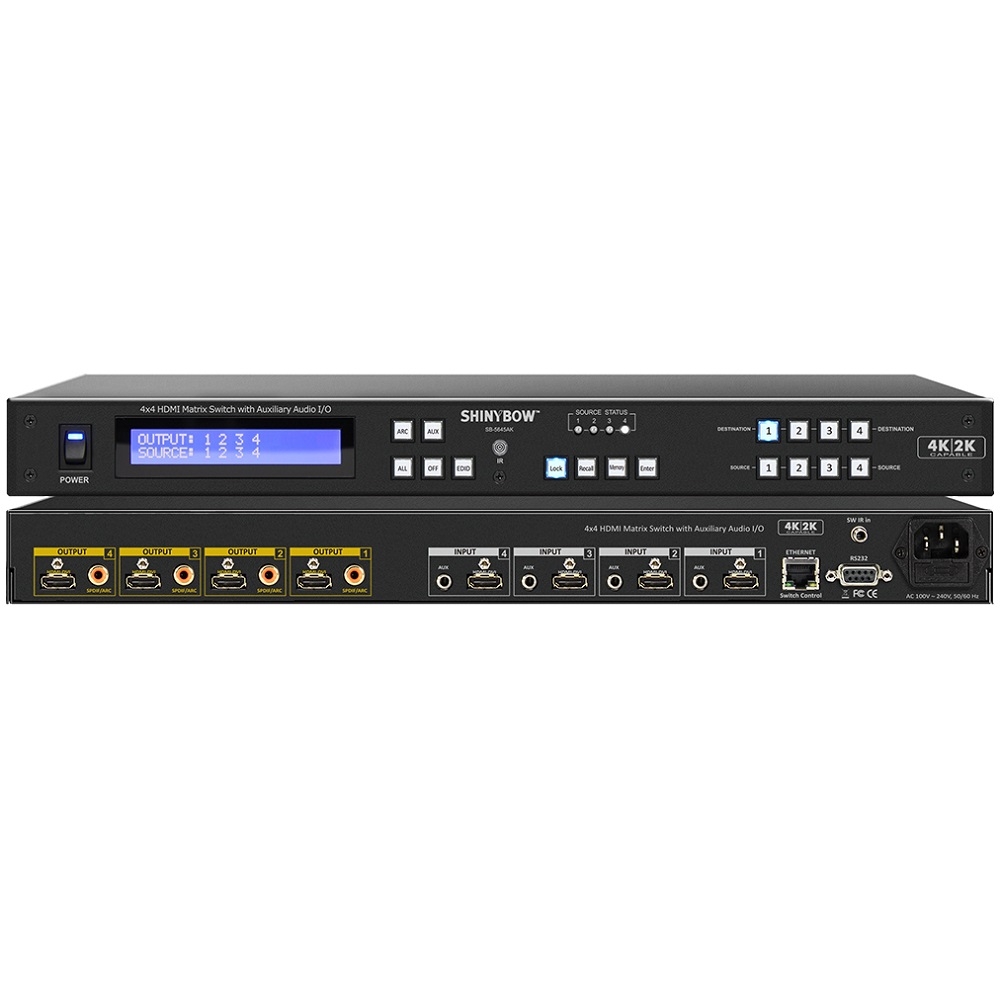

Ma trận chuyển mạch 4x4 HDMI SB-5645AK (4K)
Mô tả ngắn
Shinybow SB-5645AK (4K) 4x4 HDMI Matrix Switch with Auxiliary Audio
Input : 4x HDMI, 4x Auxiliary Audio
Output : 4x HDMI, 4x S/PDIF or ARC
Hotline: 0918 642 886
The SB-5645AK is professional 4x4 matrix routing switch. Supporting four (4) HDMI™ Inputs and (4) Auxiliary Audio Inputs. Output supported (4) HDMI™ and (4) S/PDIF audio. The SB-5645AK is based on the HDMI™ standard and supports full resolution HDMI™ Video with embedded EDID, With a signal bandwidth of 340Mhz, there is no signal degradation. High Definition Digital signals can be selected and distributed to any (4) Inputs to (4) outputs. The Switcher is certified as being fully CEC , ARC and HDCP 1.3 compliant, full HD 4K2K HDMI™ V1.4a 3D formats, data rates up to 6.75 Gbps. Supports UXGA/WUXGA/DVI 1920x1200 resolution to any HD displays. The SB-5645AK has 1x HDMI™ and Auxiliary Audio(analog stereo audio) connector for Input, effectively making this an 8 in x8 out switcher. The EDID management can be selected between seven (7) different modes. Control is provided via Front panel push buttons, IR remote, RS-232 or TCP/IP (not a web-browser). An RS-232 Windows GUI interface is provided for matrix routing control (Windows only).
01. Four (4)x HDMI with Auxiliary Audio (Analog Audio) source devices matrix switched to Four
(4)x HDMI with S/PDIF output destinations.
02. HDMI digital Video w/embedded HDCP, DVI format and CEC/HDCP 1.3 compliant
03. Worldwide control EDID modes for HDMI full 4K2K (24/30 Hz) HD Video resolutions
04. Link speeds of up to 6.75 Gbps (link clock rate of 340MbHz), Support HDMI 4K2K, 1.4a 3D
formats
05. Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV HDMI
resolutions 480i/480p, 576i/576p, 720p, 1080i/p & 4K2K (24/30Hz)
06. Digital Video TMDS formats Resolution up to 4K2K with Deep color 36-bit.
07. Digital Audio Support : - Dolby TrueHD
- Dolby Digital
- Dolby Digital Plug/ex
- DTS
- DTS-HD
- DTS-HD Master
- DTS-EX
- PCM, PCM2, LPCM2
08. Audio Input : Support Auxiliary Audio (Analog stereo audio)
09. Audio Output : Support Digital audio ARC or Digital audio S/PDIF
(from HDMI source or Auxiliary Audio)
10. Various User Interface controls :
• Windows based GUI control via RS-232 port
• Front Panel push button
• IR wireless remote controller
• Ethernet Switch control (Support window XP, 7, 8)
• Third party RS-232 controller (via simple ASCII)
11. Support world wide (9)x control function keys :
Full function front panel controls :
ARC / AUX/ ALL / OFF / EDID / LOCK / RECALL / MEMORY / ENTER
12. Supports seven (7) worldwide standard embedded EDID modes
13. Automatic scanning input & output status via LCM show on front panel
14. Support IR Remote and IR Extender with distance up to ~ 984 feet (300M) Maximum
15. Support Universal power adaptor AC100V~240V, 50/60Hz
|
Type of HDMI Switcher |
4x inputs To 4x Outputs HDMI Matrix Switch with Audio |
|
HDMI Support |
HDMI 1080P, 4K2K-30Hz, 36-bit Deep color, |
|
HDCP / CEC Support |
HDCP 1.3 Compliant, CEC Compliant |
|
Video Bandwidth |
Double Data Rates:340Mhz, Total 6.75Gbps bandwidth |
|
Video Input |
4x HDMI (HDMI or DVI digital source) |
|
Audio Input |
4x Audio ( Analog Stereo, AUX port. 3.5mm Jack) |
|
Video Output |
4x HDMI (To Destination) |
|
Audio Output |
4x S/PDIF:Multi Audio Formats 5.1 from HDMI or |
|
Switch Controls |
1x Select & Function buttons on front panel |
|
Source Status |
1x Ethernet series interface (switch control)t status LEDs indicates |
|
(17) Function Control Keys |
1.ARC, 2.AUX, 3.ALL, 4.OFF, 5.RECALL, 6.ENTER, |
|
Infrared Frequency |
38 Khz |
|
IR External Distance |
~984 feet / 300 meters maximum |
|
HDMI I/O Connector |
HDMI Type A - SMD 19pin Female Type |
|
Temperature |
Operating Temperature 32°F - 100°F (0°C - 32°C) |
|
Dimension (WxDxH) |
19" x 9.85" x 1.73" (482mm x 250mm x 44mm) |
|
Rack Mount |
1RU High 19" Rack Mount #1U-440L (with rack mount) |
|
Power Supply |
DC12V, 5A, Powr Input : AC 100~240 VAC 50/60Hz |
|
Safety Approvals |
CE, FCC, REACH |
|
Weight |
2.15 Kg / 3.58 lb |
