Bộ Scaler hình ảnh VP-410
Mô tả ngắn

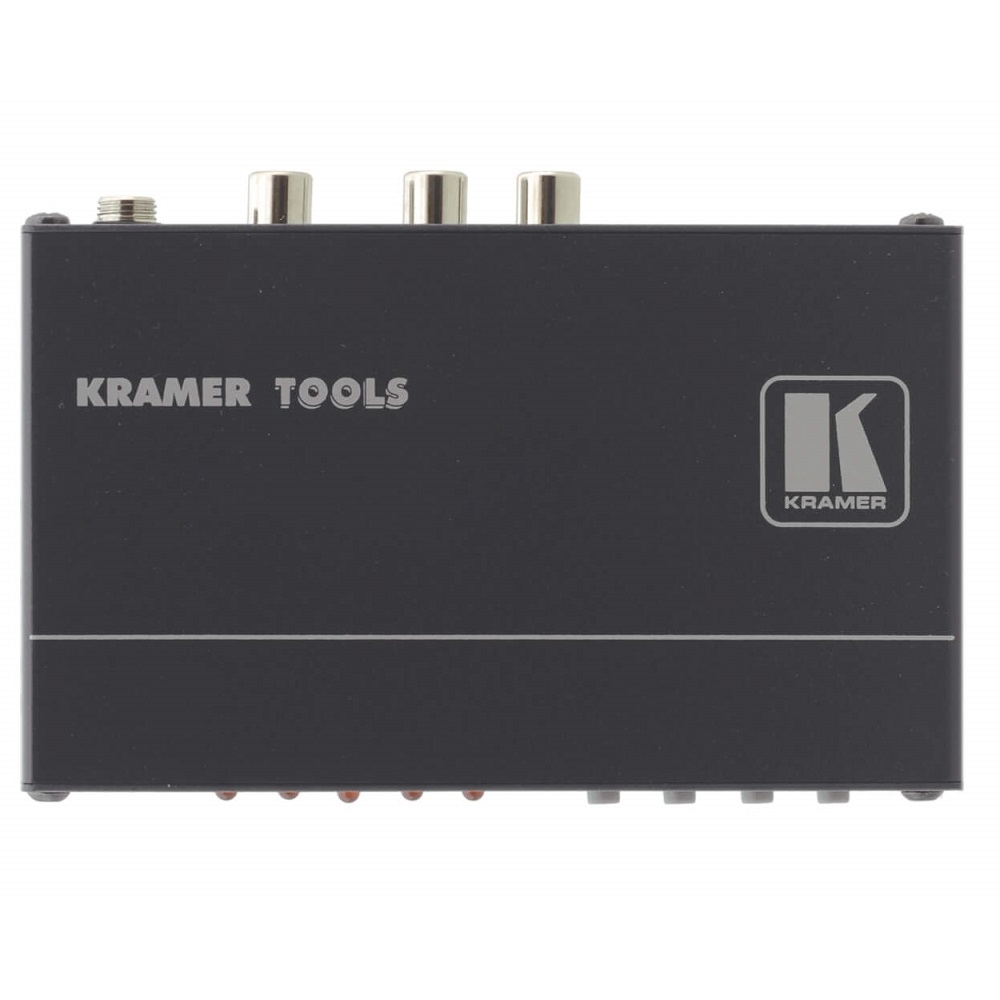

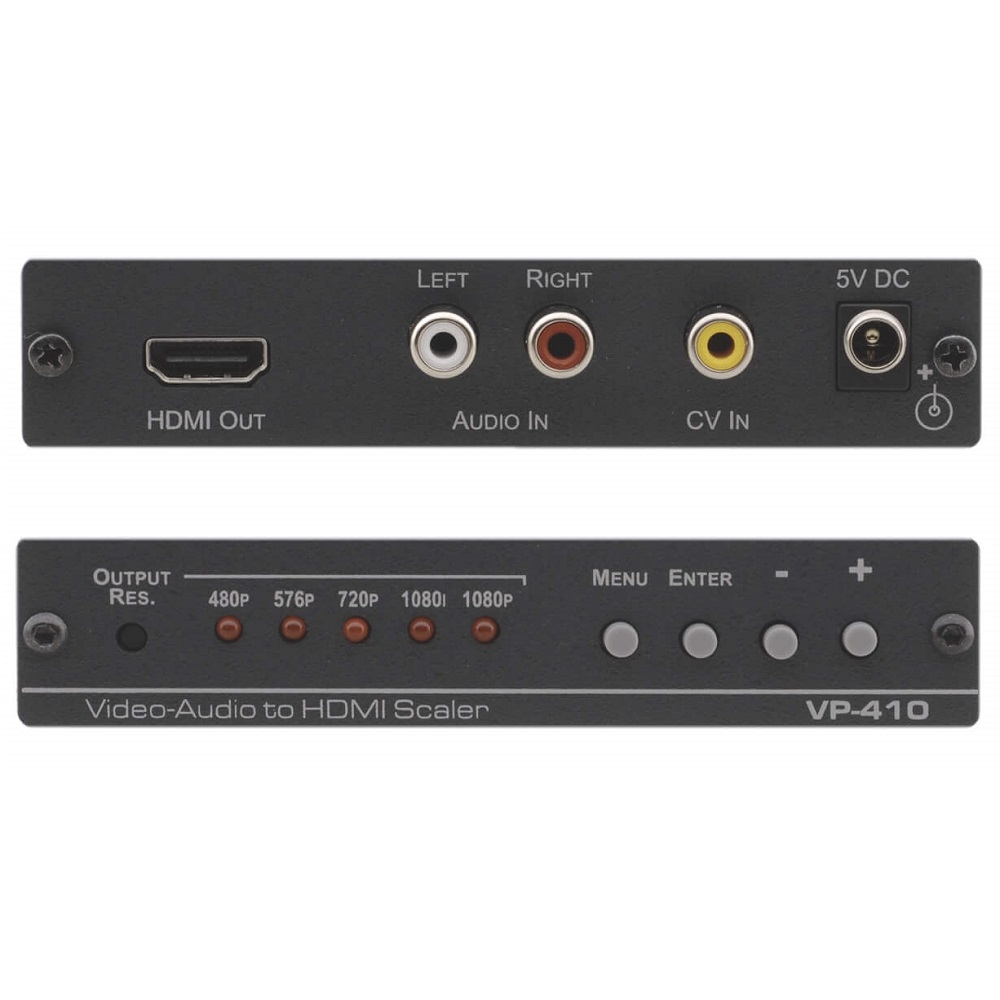

Kramer VP-410 Composite Video & Stereo Audio to HDMI Scaler
-
Embeds Audio
-
Proc Amp
-
Size — TOOLS — Mount 3 units side–by–side in a 1U rack space with the optional RK–3T rack adapter.
-
Audio — U/E
Hotline: 0918 642 886
The VP-410 is a high-performance scaler for composite video and audio to HDMI signals. It scales the composite video, embeds stereo audio and converts the signal to an HDMI output.
-
HDTV Compatible.
-
Output Resolutions — 480p, 576p, 720p, 1080i and 1080p.
-
Controls — Front panel with On–Screen Display (OSD).
-
Built–in ProcAmp — Color, sharpness, brightness, contrast, etc.
-
Compact Kramer TOOLS™ — 3 units can be rack mounted side–by–side in a 1U rack space with the optional RK–3T rack adapter.
INPUTS
-
1 composite video, 1Vpp/75Ω on an RCA connector
-
1 unbalanced stereo audio, 1Vpp/47kΩ on RCA connectors
OUTPUT
-
1 HDMI
OUTPUT RESOLUTIONS
-
HDTV: 480p, 576p, 720p, 1080i, 1080p
PROCESSING DELAY
-
2 frames
CONTROLS
-
Front panel buttons for output resolution and menu driven OSD control
ADDITIONAL CONTROLS
-
Contrast, brightness, saturation, hue, auto sync, aspect ratio, overscan, noise reduction
POWER CONSUMPTION
-
5V DC, 430mA
INCLUDED ACCESSORIES
-
Power supply
OPTIONS
-
19" rack adapter RK–3T
PRODUCT DIMENSION
-
12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
PRODUCT WEIGHT
-
0.2kg (0.4lbs) approx
SHIPPING DIMENSION
-
23.20cm x 12.00cm x 8.90cm (9.13" x 4.72" x 3.50" ) W, D, H
SHIPPING WEIGHT
-
0.5kg (1.1lbs) approx
