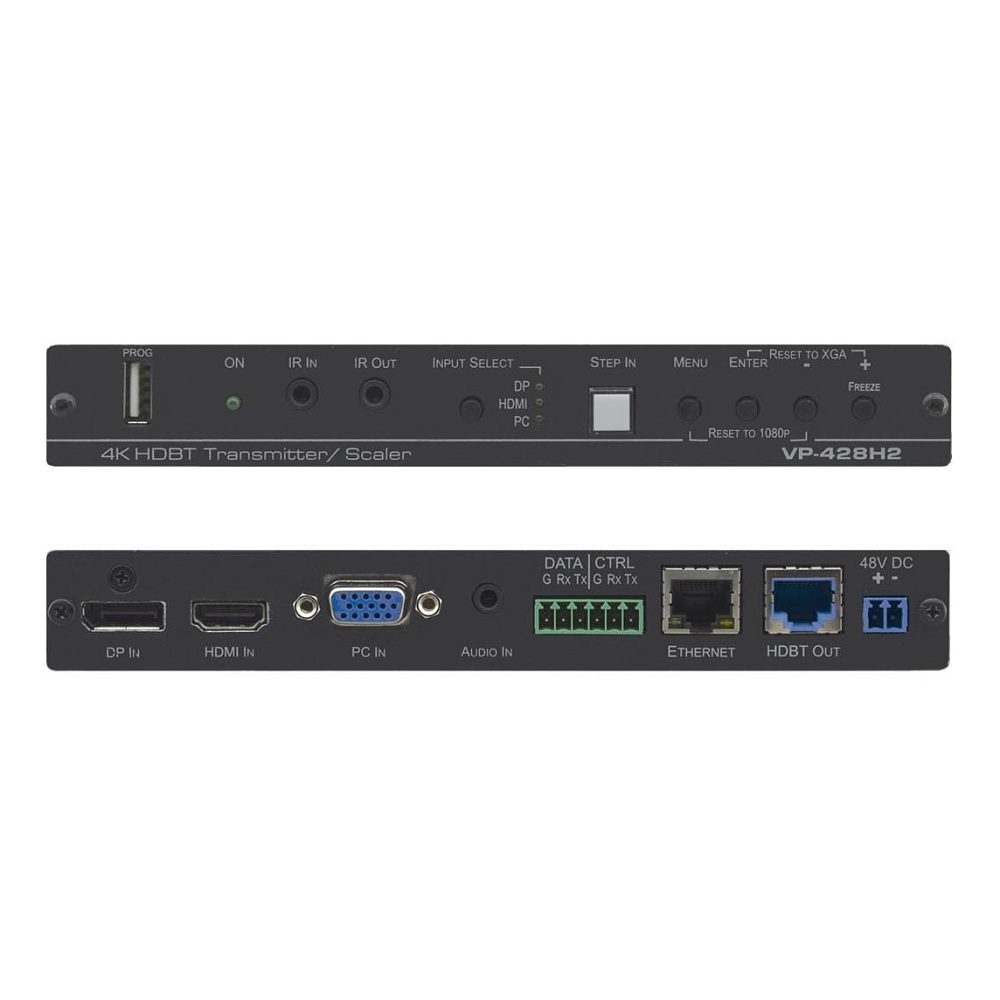

Bộ Scaler hình ảnh VP-428H2
Mô tả ngắn
Kramer VP-428H2 DisplayPort, HDMI & VGA Auto Switcher/Scaler and PoE Provider over HDBaseT with 4K60 4:4:4 HDCP 2.2 Input Support
HDMI, DP, VGA Inputs
HDBaseT Tunneling of Ethernet, RS–232 and IR signals, and PoE
Supports up to 4K@60 4:4:4 on the HDMI and DP inputs
Supports up to 4K@60 4:2:0 on the HDBaseT output
Upscales and downscales to / from all resolutions
Hotline: 0918 642 886
VP−428H2 is an HDBaseT 4K transmitter/scaler with HDMI, DP and VGA inputs. VP−428H2 supports HDBaseT tunneling of Ethernet, bidirectional RS−232 and IR signals, as well as PoE to provide power to the HDBaseT receiver. It receives the selected AV signal, up−scales, down scales or bypasses the video, according to the settings selected by the user, and converts it for sending via HDBaseT, together with the tunneled data and PoE.
- PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high–quality scaling technology.
- HDMI Support — HDCP 2.2 Compliant. 4K60, CEC, xvYCC color (on input), Dolby TureHD/DTS–HD Master Audio as specified in HDMI 2.0.
- HDBaseT Certified.
- System Range — For the HDBaseT output, extended reach of up to 100m (330ft) using Kramer recommended cables.
- Provides Power (PoE) on HDBaseT Output to Compatible Devices.
- Max. Resolutions — Input: 4K@60Hz (4:4:4); Output: 4K@60Hz (4:2:0).
- Max. VGA Resolution — 1920 x 1200 @60Hz.
- Built–in ProcAmp — Color, hue, sharpness, noise, contrast and brightness are set individually for each input.
- Constant Output Sync — No output disruption while switching between inputs when no video is detected.
- Audio — Unbalanced stereo and embedded audio.
- Auto Input Switching — Last connected & auto–scan, selectable.
- HDBaseT Tunneling — Supports full HDBaseT tunneling of Ethernet and RS–232 data.
- Non–Volatile Memory — Saves final settings.
- Flexible Control Options — Front panel push buttons, RS–232, OSD (on–screen display) menu with front panel navigation buttons.
INPUTS
-
1 DP: On a Display Port connector
-
1 HDMI : On a female HDMI connector
-
1 PC: On a 15–pin HD connector
-
1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack
-
1 IR: On a 3.5mm mini jack
OUTPUTS
-
HDBaseT: On an RJ–45 port
-
1 IR: On a 3.5mm mini jack
PORTS
-
1 Ethernet: On an RJ–45 female connector for port tunneling
-
1 USB: On a female USB–A connector
-
1 DATA RS-232: On a 3–pin terminal block for serial link extension
-
1 CTRL RS-232: On a 3–pin terminal block for device control
VIDEO
-
Max Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
-
Max. Input Resolution: 4K@60Hz (4:4:4)
-
Max. Output Resolution: 4K@60Hz (4:2:0)
-
Standards Compliance Support: HDCP 2.2 and DP 1.2A. Supports 4K60, CEC, xvYCC color (on input), Dolby TureHD/DTS–HD Master Audio as specified in HDMI 2.0
-
Switching Time Between Inputs: 2 to 3 seconds
-
Video Latency: 2 to 3 frames
-
Input Resolutions: 640x350@60/70/85Hz, 640x400@70/85Hz, 640x480@57/60/66/72/85Hz, 720x400@70/85Hz, 720x480@60i/60p/60Hz, 720x576@50i/50p/60Hz, 800x600@56/60/72/75/85Hz, 832x624@75Hz, 848x480@59/60Hz, 864X648@60Hz, 1024x768@43i/60/70/75/85Hz, 1152x864@60/70/75/85Hz, 1152x870@60/75Hz, 1280x720@25p/30p/50p/60p/75Hz, 1280x768@50/60 (RB)/60/75/85Hz, 1280x800@59/60/75/85Hz, 1280x960@60/75/85Hz, 1280x1024@59/60/72/75/76/85Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@59/60/75Hz, 1440x900@60 (RB)/60/75/85Hz, 1600x900@60 (RB)/60/75Hz, 1600x1024@60/75Hz, 1600x1200@51/59/60/65/70/75Hz, 1680x1050@59/60/75Hz, 1920x1200@59/60/65/75Hz, 1920x1080@50i/60i/24p/25p/30p/50p/60p/60Hz, 920X1080@60s, 1920X1080@50vesa, 3840x2160@24p/25p/30p/50p/50p (420)/60p/60p (420)/60p (RB), 4096x2160@24p/25p/30p/50p/50p (420)/60p/60p (420)
-
Output Resolutions: Native, 640x480@60Hz, 720x480P@60Hz, 720x576P@50Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60Hz, 1280x720P@50/60Hz, 1920x1080P@24/25/30/50/60Hz, 4K@24/25/30Hz, 4K2K(4:2:0)@50/60Hz
POWER
-
Source: 48V DC, 1.36A
-
Consumption: 48V DC, 410mA
ENCLOSURE
-
Cooling: Convection ventilation
-
Type: Aluminum
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0° to +40°C (32° to 104°F)
-
Storage Temperature: –40° to +70°C (–40° to 158°F)
-
Humidity: 10% to 90%, RHL non–condensing
ACCESSORIES
-
Included: Power supply
PRODUCT DIMENSIONS
-
18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
-
22.30cm x 20.50cm x 2.50cm (8.78" x 8.07" x 0.98" ) W, D, H
PRODUCT WEIGHT
-
0.9kg (1.9lbs) approx.
-
0.9kg (1.9lbs) approx.
