Computer Graphics Video & HDTV to HDMI ProScale™ Digital Scaler
Max. Resolution — WUXGA & 1080p

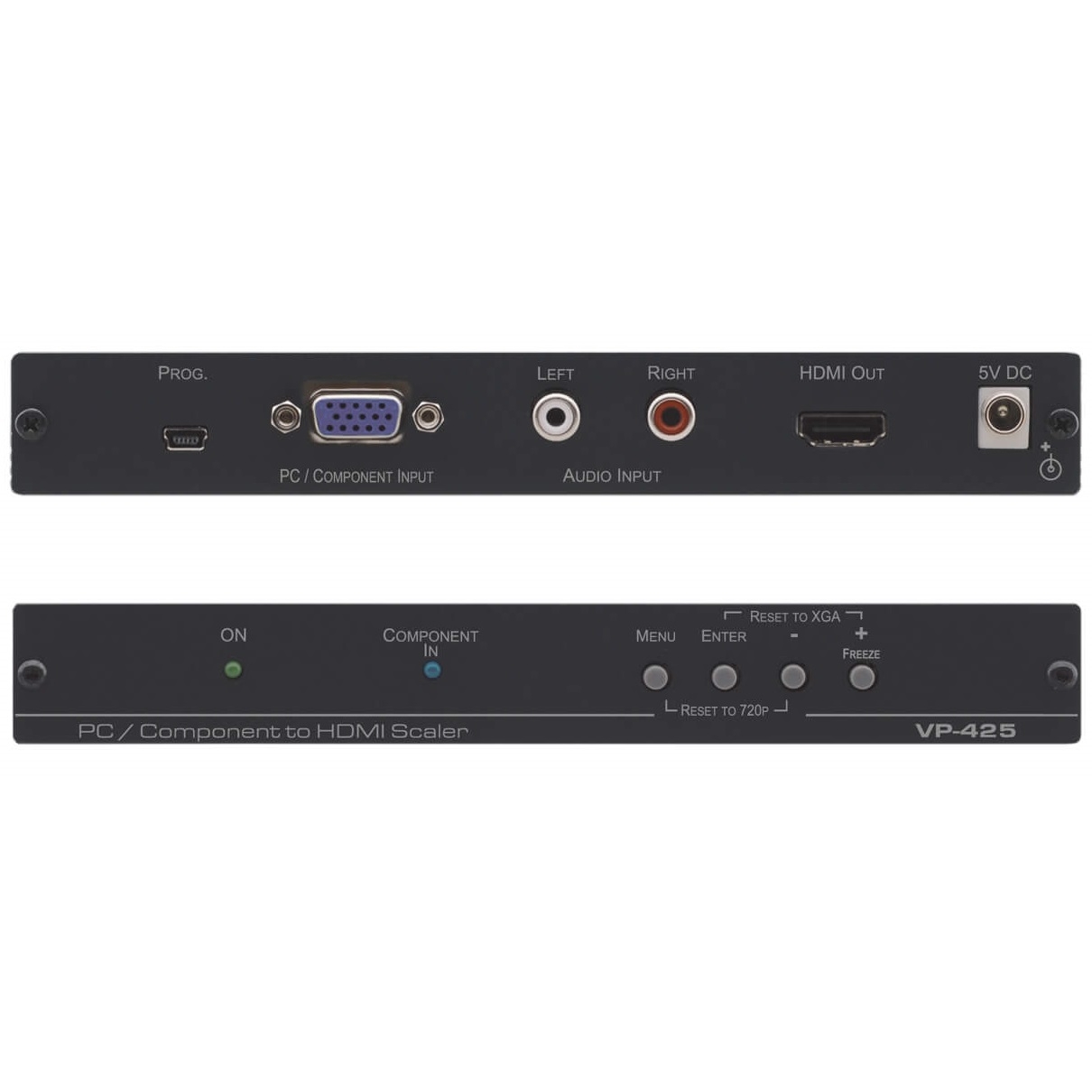

The VP-425 is a high-performance digital scaler for computer graphics video and component HDTV signals. It up- or down-scales the input and embeds the stereo audio into the non-HDCP encrypted HDMI output.
- HDTV Compatible.
- Max. Resolution — WUXGA & 1080p.
- Built–in ProcAmp — Color, sharpness, brightness, contrast, etc.
- Controls — Front panel with On–Screen Display (OSD).
- USB Port — For firmware upgrade.
- Compact MegaTOOLS™ — 2 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.

INPUTS
1 VGA on a 15–pin HD connector, RGBHV/YPbPr (selectable)
1 unbalanced stereo audio on RCA connectors
OUTPUT
1 DVI/HDMI on an HDMI connector
INPUT RESOLUTIONS
PC: VGA, SVGA, XGA, 1280x800, UXGA, SXGA, WXGA, SXGA+, WXGA+, WSXGA, WUXGA
HDTV: 480p, 576p, 720p @50/60Hz, 1080p @50/60Hz, 1080i @50/60Hz
PROCESSING DELAY
30ms approx
CONTROLS
Front panel buttons, ON and component output LEDs
POWER CONSUMPTION
5V DC, 400mA
INCLUDED ACCESSORIES
Power supply
PRODUCT DIMENSION
18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT
0.4kg (0.9lbs) approx.
