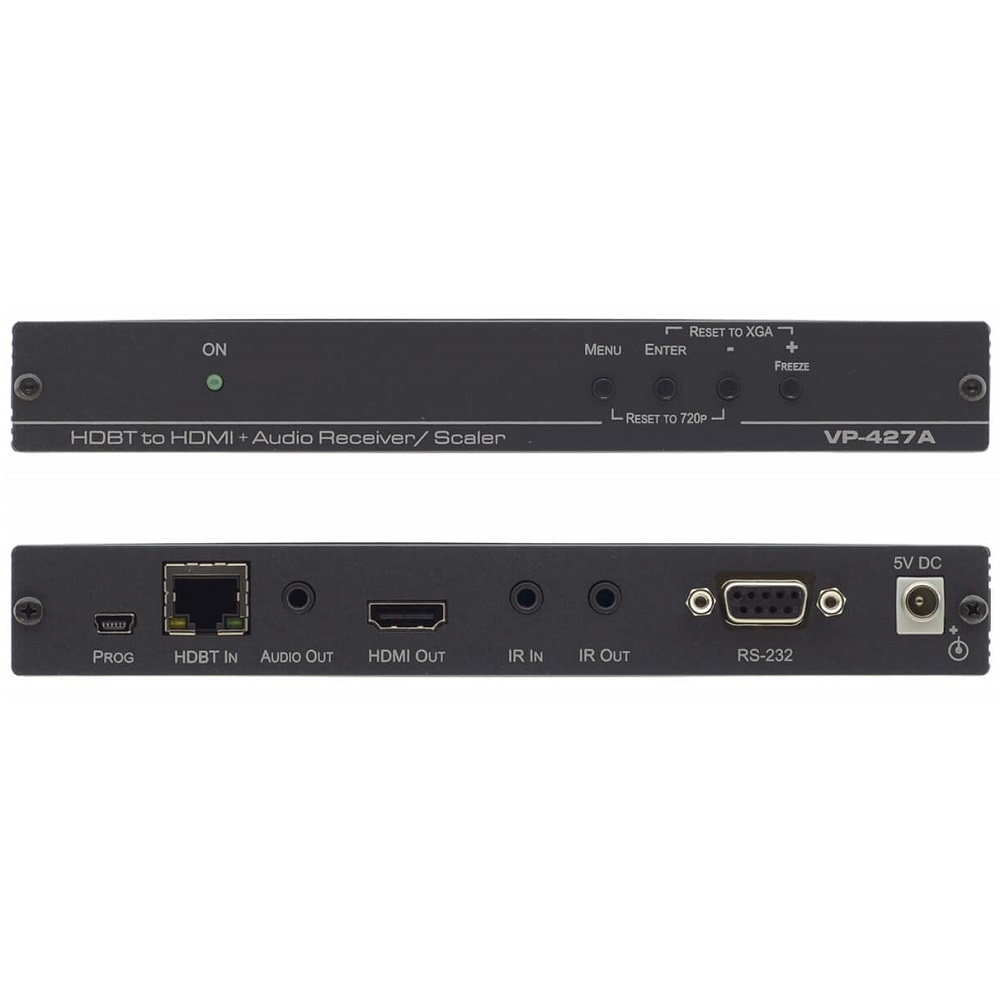

Bộ nhận và scaler tín hiệu HDMI-HDBT VP-427A
Mô tả ngắn
Max. Data Rate — 6.75Gbps
Bidirectional RS–232 Port, Infrared I/O Ports System
Range — Up to 70m (230ft)
ProcAmp Control, On–Screen Display
Hotline: 0918 642 886
The Kramer VP−427A is a receiver/scaler for HDBaseT twisted pair, HDMI, bidirectional RS−232 and IR signals. The unit receives an HDBaseT signal that it converts to HDMI, IR and RS−232 signals. It up− or down−scales the picture to match the resolution of the HDMI monitor. It includes a simultaneous analog audio output of the embedded HDMI audio.
- - Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).
- - Bidirectional RS–232 Port — For embedding/de–embedding control commands in the HDBaseT data stream.
- - Infrared Input and Output Ports — For controlling devices over the HDBaseT data stream.
- - System Range — Up to 70m (230ft).
- - Embedded Audio — Support for LPCM 2CH.
- - Analog Audio Output — Includes a simultaneous unbalanced stereo audio output of the embedded HDMI audio.
- - Constant Output Sync — Even when the input video signal is lost or interrupted.
- - ProcAmp Control — Contrast, brightness, fine tune & R, G, B level/gain.
- - On–Screen Display (OSD) — For easy setup and adjustment, accessible via the front–panel buttons.
- - Non–Volatile Memory — Saves final settings.
- - Freeze Button.
- - USB Port — For upgrading firmware.
INPUTS
-
1 HDBaseT twisted pair on an RJ–45 connector, 1 IR on a 3.5mm mini jack
OUTPUTS
-
1 HDMI connector, 1 IR on a 3.5mm mini jack, 1 unbalanced stereo audio on a 3.5mm mini jack
PORTS
-
1 bidirectional RS–232 port on a 9–pin D–sub connector
OUTPUT RESOLUTIONS
-
Native, 480p, 570p, 720p, 1080i, 1080p, 640x480, 800x600, 1024x768, 1280x800, 1280x1084, 1360x768, 1400x1050, 1440x900, 1600x1200, 1680x1050, 1920x1200
OUTPUT REFRESH RATE
-
60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions
LATENCY
-
30ms approx
VIDEO COLOR DEPTH
-
Input: 8/10/12–bit, output: 8–bit
EMBEDDED AUDIO
-
Supports LPCM 2CH
RS-232 BAUDRATE
-
115200bps max
CONTROLS
-
Front panel buttons, 1 USB for programming
INDICATORS
-
ON LED
POWER CONSUMPTION
-
5V DC, 1.5A
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES
-
Power supply
