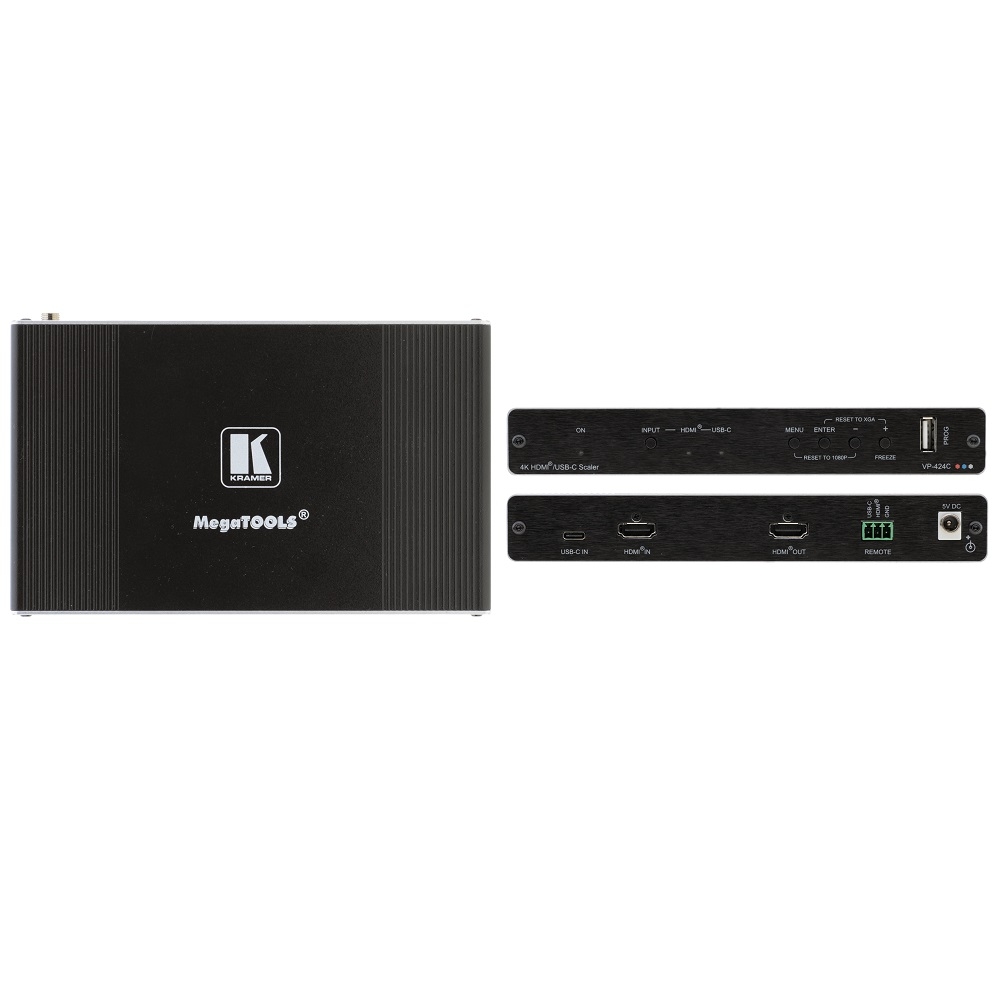

Bộ Scaler hình ảnh HDMI - USB C VP-424C
Mô tả ngắn
Max. Input Resolution:4K@60Hz (4:4:4)
Max. Data Rate:18Gbps (6Gbps per graphic channel)
HDCP 2.2 & 1.4 compliant
OSD menu and front panel input selection
Hotline: 0918 642 886
VP−424C is a high−performance digital scaler for HDMI and USB type−C signals. The unit up− or down−scales the selected video signal to resolutions up to 4K@60Hz (4:4:4) at a maximum data rate of 18Gbps (6Gbps per graphic channel). The user selects the HDMI or USB type−C input and the scaled output is sent to the HDMI output.
- High–Performance Professional Scaler — Up–scales or down–scales HDMI and USB type–C signals to any resolution up to 4K@60 (4:4:4). The scaler supports HDMI 2.0 and HDCP 2.2/1.4, and features Input Auto–Switching, Constant Sync on the output even if the input video signal is lost or interrupted, and a built–in ProcAmp for convenient signal adjustment.
- Fast, Smooth Manual and Auto Switching Between Sources — Select the HDMI or USB Type–C input, or, if no input is selected, the active source is automatically selected.
- EDID Handling — Reading and storage of the video acceptor's EDID.
- Convenient Control — Control the unit using an OSD (On–Screen Display) via front panel buttons and input selector, video freeze and resolution reset front panel buttons. Additionally, connect to the contact closure connector for remote switching of sources. All settings are saved in non–volatile memory.
- User–Friendly Operation — LED indicator for active input and for power status. Local firmware upgrade via the USB type–A port ensures lasting, field–proven deployment.
- Easy Installation — Compact MegaTOOLS® fan–less enclosure for surface mounting or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
INPUTS
1 HDMI: On a female HDMI connector
1 USB-C: On a female USB–C connector (DP Alternate Mode)
OUTPUTS
1 HDMI: On a female HDMI connector
PORTS
Contact Closure Switches: On a 3–pin terminal block
USB: On a USB–A connector for firmware upgrade
VIDEO
Max. Input Resolution: 4K@60Hz (4:4:4)
Max. Data Rate: 18Gbps (6Gbps per graphic channel)
Input Resolutions: 480i/576i, 480p/576p, 720p@60/50Hz, 1080i@60/50Hz, 1080p@24/25/30/50/60Hz, 640x480@60/67/72/75/85Hz, 800x600@56/60/72/75Hz, 1024x768@60/70/75Hz, 1280x1024@60/75Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1600x1200@60Hz, 1600x900@60 RB, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1200@60 RB, 2048x1080@24/25/30/50/60Hz, 2560x1440@60 RB, 2560x1600@60 RB, 4K/2K@50/60Hz (4:2:0), 4K/2K@24/25/30/50/60Hz (4:4:4)
Output Resolutions: 640x480@60Hz, 720x480p@60Hz, 720x576p@50Hz, 800x600@60Hz, 1024x768@60Hz, 1280x1024@60Hz, 1280x720@60Hz, 1280x720p@50/60Hz, 1280x768@60Hz, 1280x800@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@60Hz, 1920x1080p@24/25/30/50/60Hz, 1920x1200 RB@60Hz, 2048x1080@50/60Hz, 2560x1080p@50/60Hz, 2560x1440 RB@60Hz, 2560x1600 RB@60Hz, 4K/2K@24/25/30/50/60Hz
Latency: 1–2 frames
Content Protection: HDCP 2.2 & 1.4
USER INTERFACE
Controls: Input selection and resolution reset front panel buttons, OSD menu
Indicators: Selected input and power LEDs
POWER
Source: 5V DC
Consumption: 1.8A
ENCLOSURE
Size: MegaTOOLS®
Type: Aluminum
Cooling: Convection ventilation
ENVIRONMENTAL CONDITIONS
Operating Temperature: 0° to +40°C (32° to 104°F)
Storage Temperature: –40° to +70°C (–40° to 158°F)
Humidity: 10% to 90%, RHL non–condensing
ACCESSORIES
Included: Power adapter, bracket set, rubber feet
PRODUCT DIMENSION
18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT
0.5kg (1.2lbs) approx.
SHIPPING DIMENSION
34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H
SHIPPING WEIGHT
1.1kg (2.4lbs) approx.
