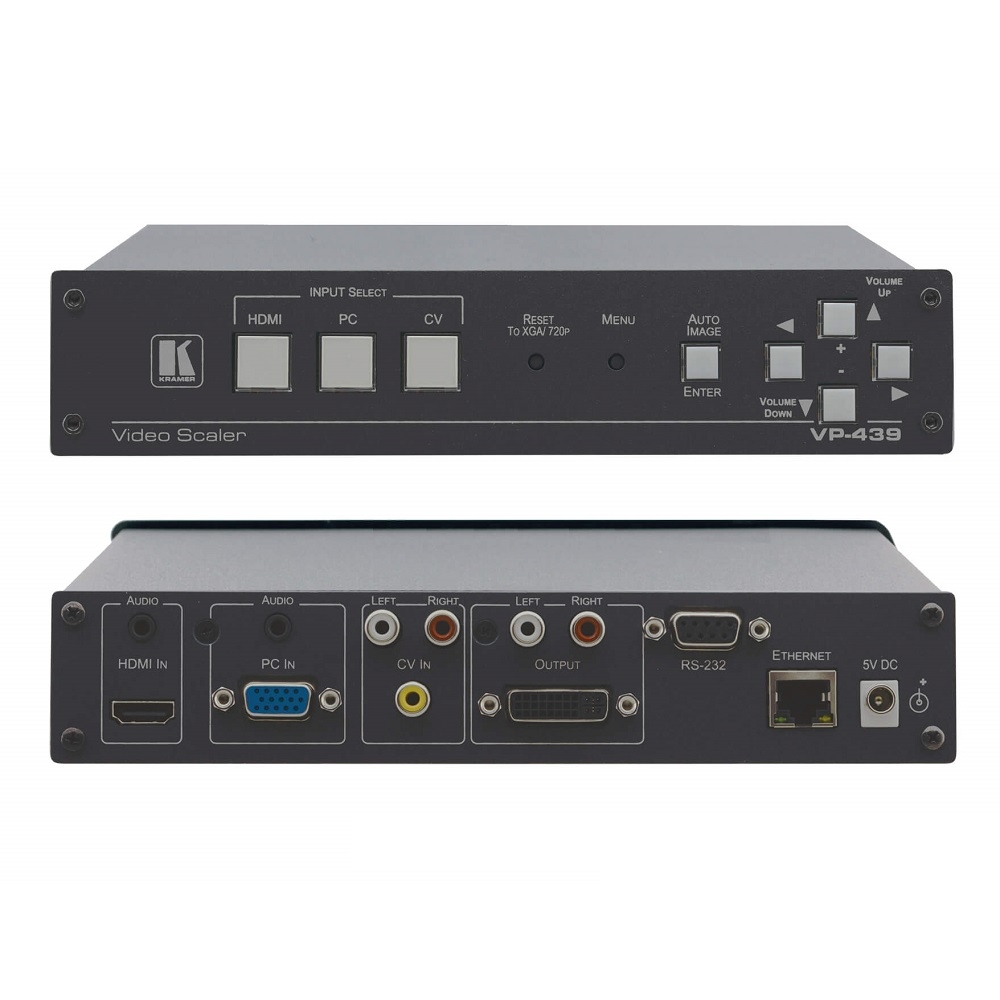

Bộ chuyển mạch và Scaler VP-439
Mô tả ngắn
Kramer VP-439 HDMI, PC and CV to HDMI Classroom Switcher / Scaler
-
Max Resolution — 1080p/WUXGA.
-
Auto Switching
-
Lip Sync Delay
-
Control — OSD (on–screen display), Web page, Ethernet, RS–232
-
Built–in ProcAmp
Hotline: 0918 642 886
The VP−439 is a high−performance digital scaler for computer graphics video, composite and HDMI signals, including audio. It up/down scales the selected HDMI, CV or computer graphics video/YPbPr input and outputs it to HDMI on a DVI−I connector.
-
- Maximum Resolution — Up to 1080p/WUXGA.
-
- HDTV Compatible.
-
- HDCP Compliant.
-
- Auto Switching — Searches for a valid signal when the input signal is lost.
-
- Automatic Input Audio Detection and Selection — Selects embedded audio for HDMI inputs, or analog audio when DVI is detected.
-
- Auto–Power Down — If no input signal is detected for 2 to 3 minutes, output is shut down.
-
- Analog Audio Inputs — For CV, PC and HDMI.
-
- Lip Sync Delay
-
- On–Screen Display (OSD) — For easy setup and adjustment, accessible via the front–panel buttons.
-
- Flexible Control Options — Front panel buttons, OSD (on–screen display), Web page, Ethernet, RS–232.
-
- Built–in ProcAmp — For convenient adjustment of video parameters, such as brightness, contrast, color, sharpness and hue.
-
- Non–Volatile Memory — Saves final settings.
INPUTS
-
1 HDMI with unbalanced stereo on a 3.5mm mini jack, 1 PC/HD (RGBHV/YPbPr) on a 15–pin HD connector with unbalanced stereo on a 3.5mm mini jack, 1 composite video on an RCA connector with unbalanced stereo on 2 RCA connectors
OUTPUTS
-
1 HDMI on a DVI–I connector with unbalanced stereo on 2 RCA connectors
PORTS
-
1 Ethernet on an RJ–45 connector, 1 RS–232 on a 9–pin D–sub connector
OUTPUT COLORSPACE
-
RGB/YPbPr
OUTPUT RESOLUTIONS
-
1080i, 1080p, 576i, 576p, 720p, 1080i, 1080p, WXGA, WSXGA, WUXGA, 1280x800, WXGA+, SXGA+, NATIVE, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p, 1600x900
OUTPUT REFRESH RATE
-
60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions
PROCESSING DELAY
-
30ms approx
CONTROLS
-
Front panel buttons, menu–driven OSD control, Web page
POWER CONSUMPTION
-
5V DC, 1.1A
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES
-
Power supply
OPTIONAL ACCESSORIES
-
RK–1 19” rack adapter
