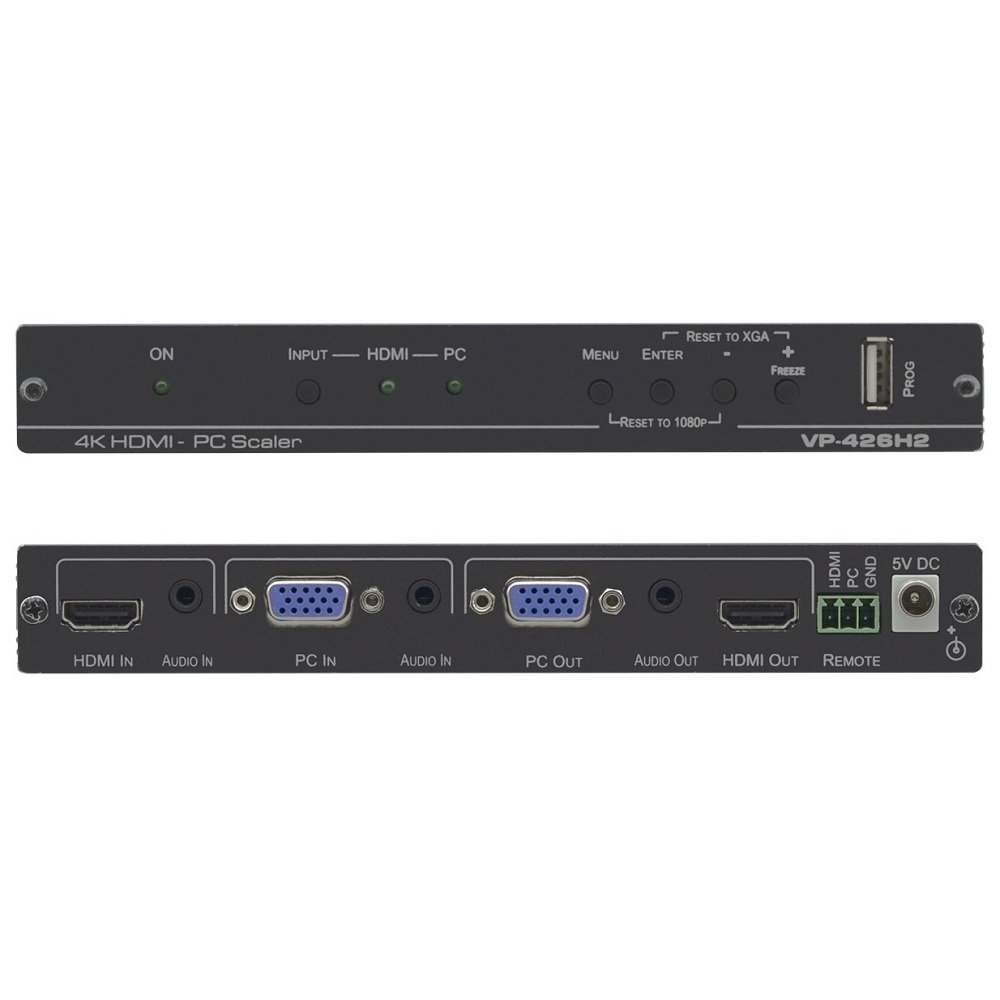

Bộ Scaler HDMI-VGA VP-426H2
Mô tả ngắn
VP-426H2 4K60 4:4:4 HDCP 2.2 HDMI 2.0 / VGA Scaler
HDMI 2.0
HDCP 2.2 & 1.4
4K@60 (4:4:4)
Hotline: 0918 642 886
VP−426H2 is a high−performance digital scaler for HDMI and computer graphics/HDTV signals. The unit up− or down−scales computer graphics and HDTV signals to resolutions up to 4Kx2K. Over 25 output resolutions and native are supported. The user selects the computer graphics/HDTV or HDMI input and the scaled output is sent to both the computer graphics and HDMI outputs.
-
- Max. Resolution — 4K@60Hz (4:4:4).
-
- Standards Compliance — HDMI 2.0, HDCP 2.2/1.4.
-
- EDID Handling — Reading and storage of acceptor's EDID.
-
- Inputs — VGA (RGBHV), Component (YPrPr) or HDMI.
-
- Outputs — Simultaneous RGBHV and HDMI.
-
- Input Auto–Scanning.
-
- Constant Sync — Maintains sync on the output, even if input video signal is lost or interrupted.
-
- Analog/Embedded Audio Support — For inputs and outputs.
-
- Built–in ProcAmp — For convenient signal adjustment.
-
- On–Screen Display (OSD) — For easy setup and adjustment, accessible via the front–panel buttons.
-
- Non–Volatile Memory — Retains last settings used.
-
- Freeze Button.
-
- Contact Closure — For remote switching of sources.
-
- USB Port — For upgrading firmware.
INPUTS
-
1 PC/HD (RGBHV/YPbPr): On a 15–pin HD connector
-
1 HDMI: On a female HDMI connector
-
2 unbalanced stereo audio connectors: On 3.5mm mini jacks
OUTPUTS
-
1 PC (RGBHV): On a 15–pin HD connector
-
1 HDMI: On a female HDMI connector
-
1 unbalanced stereo audio: On a 3.5mm mini jack
VIDEO
-
Output Resolutions: 480p*, 640x480@60Hz, 576p*, 800x600@60Hz, 720p@50/60Hz*, 1024x768@60Hz, 1280x768@60Hz, 1360x768@60Hz, 1280x800@60Hz, 1440x900@60Hz, 1280x1024@60Hz, 1400x1050@60Hz, 1680x1050@60Hz, 1080P@24/25/30/50/60Hz*, 1600x1200@60Hz, 1920x1200RB@60Hz, 4K@24/25/30/50/60Hz**
-
*: The VGA output is in RGB colorspace
-
**: 4K resolutions are available on the HDMI output only
-
Output Refresh Rate: 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions
-
Latency: Progressive input: 30ms (approx.), interlaced input: 50ms (approx.)
ANALOG AUDIO
-
Sampling Rate: 44.1kHz, 48kHz for analog audio output
USER INTERFACE
-
Controls: Front panel buttons,1 remote contact closure on a 3–pin terminal block connector, 1 USB for programming
-
Indicators: ON, HDMI and PC LEDs
POWER
-
Source: 5V DC
-
Consumption: 1.2A
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0° to +40°C (32° to 104°F)
-
Storage Temperature: –40° to +70°C (–40° to 158°F)
-
Humidity: 10% to 90%, RHL non–condensing
ACCESSORIES
-
Included: Power supply (5.2V/4A), bracket set
