Bộ Scaler hình ảnh VP-417
Mô tả ngắn

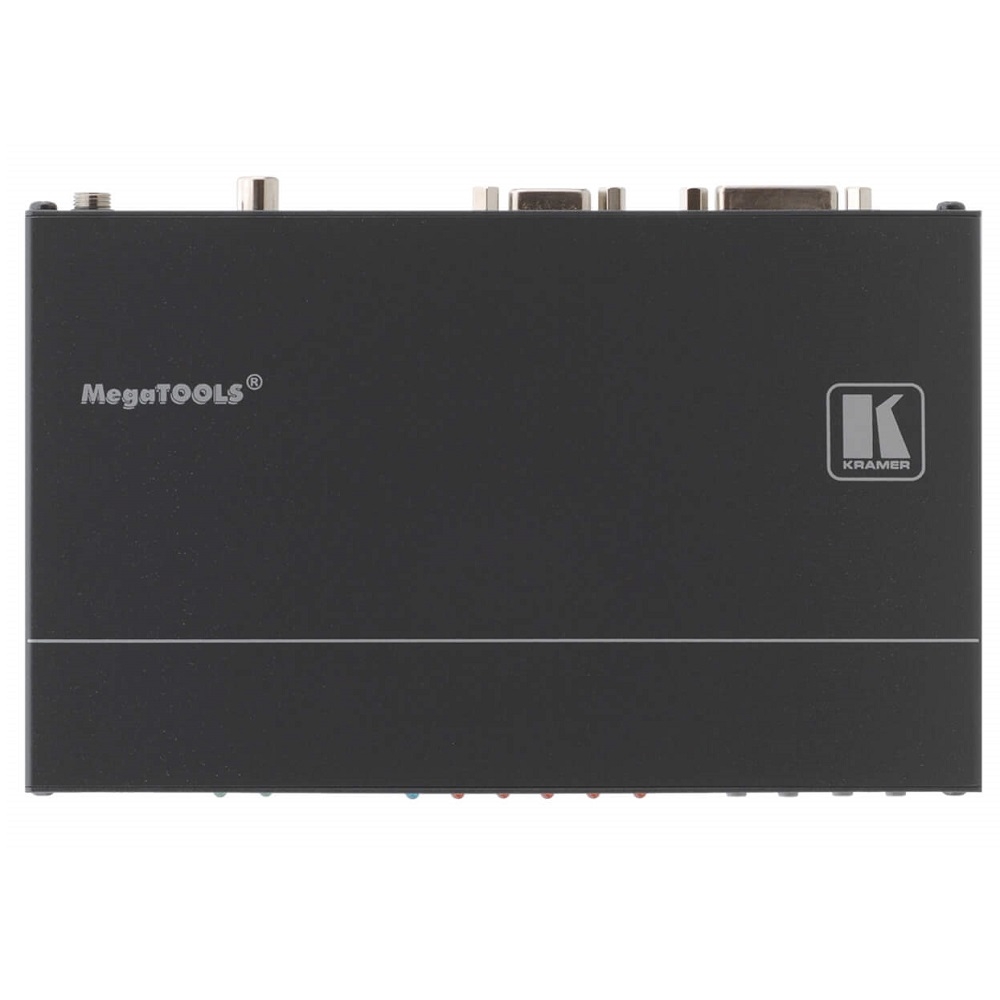

Kramer VP-417 Video to Computer Graphics, DVI & HDTV ProScale™ Digital Scaler (up to WUXGA/1080p)
-
Max. Resolution — WUXGA/1080p
-
Built–in ProcAmp.
-
Digital Noise Reduction
-

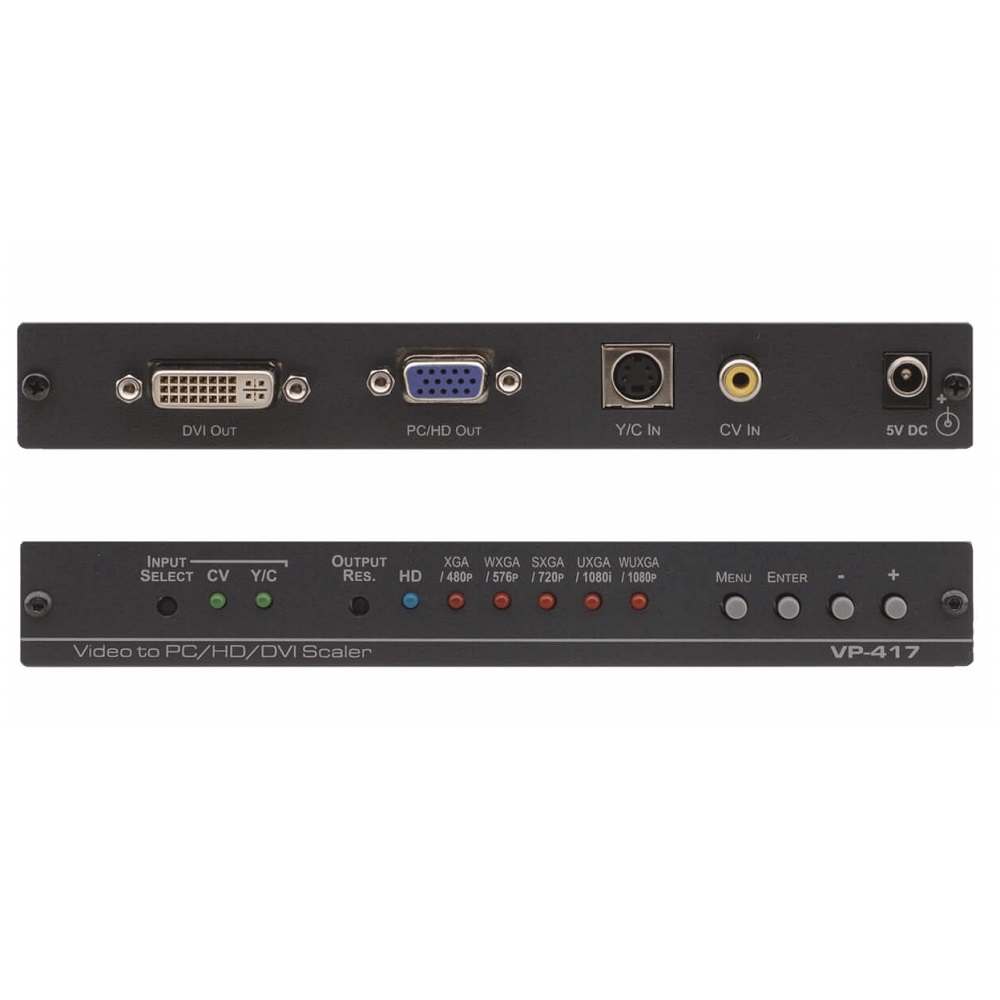

Controls — Front panel & on–screen menus.
-
Size — MegaTOOLS® — Mount 2 units side–by–side in a 1U rack space with the optional RK–T2B rack adapter.
Hotline: 0918 642 886
The VP-417 is a high-performance scaler for composite video and s-Video signals. The unit scales a video signal to a selectable computer graphics video or HDTV output signal on 15-pin HD and DVI-D connectors simultaneously.
-
- Max. Resolution — WUXGA & 1080p.
-
- HDTV Compatible.
-
- Multiple Formats — Supports composite and s–Video inputs and computer, HDTV and DVI outputs.
-
- Built–in ProcAmp — Color, sharpness, brightness, contrast, etc.
-
- Non–Volatile Memory — Saves final settings.
-
- Multiple Aspect Ratio Selections.
-
- Digital Noise Reduction — On/Off.
-
- Controls — Front panel buttons, on–screen menus.
-
- HD Indicator LED.
-
- Compact MegaTOOLS™ — 2 units can be rack mounted side–by–side in a 1U rack space with the optional RK–T2B universal rack adapter.
INPUTS
-
1 composite video, 1Vpp/75Ω on a BNC connector
-
1 Y/C (s–Video), 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C) on a 4–pin connector
OUTPUTS
-
1 DVI–D on a DVI–I connector
-
1 VGA on a 15–pin HD (F) connector
OUTPUT RESOLUTIONS
-
PC: VGA, SVGA, XGA, 1280x800, WXGA, WSXGA, SXGA, 1400x1050, 1680x1050, UXGA, WUXGA, 1920x1080, Native
-
HDTV: 480p, 576p, 720p @50/60Hz, 1080i @50/60Hz, 1080p @50/60Hz
OUTPUT REFRESH RATE
-
60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions
CONTROLS
-
Input selection, output resolution selection, Menu, Enter, — and + front panel buttons
POWER CONSUMPTION
-
5V DC, 560mA
INCLUDED ACCESSORIES
-
Power supply
OPTIONS
-
RK–T2B 19" rack adapter
PRODUCT DIMENSION
-
18.75cm x 11.50cm x 2.54cm (7.38" x 4.53" x 1.00" ) W, D, H
PRODUCT WEIGHT
-
0.4kg (0.9lbs) approx
SHIPPING DIMENSION
-
35.10cm x 21.20cm x 7.20cm (13.82" x 8.35" x 2.83" ) W, D, H
SHIPPING WEIGHT
-
0.9kg (1.9lbs) approx
