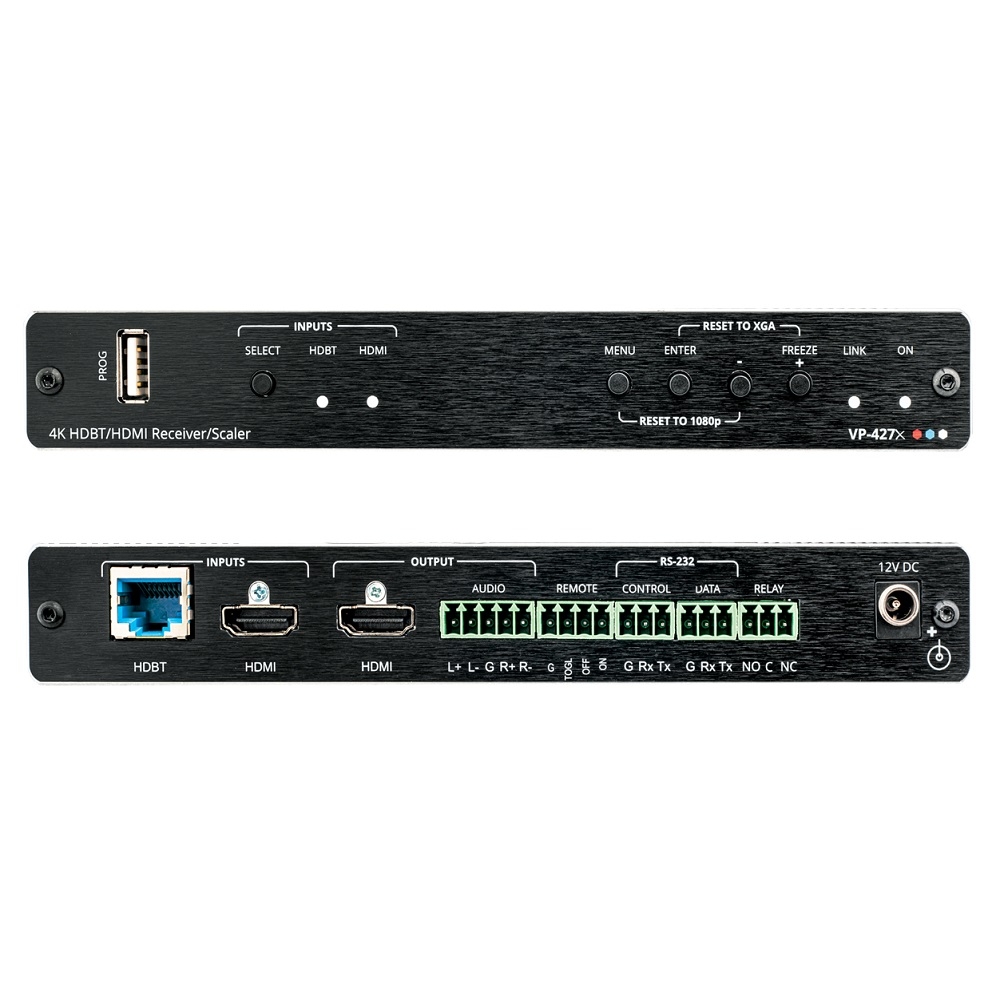

Bộ nhận và Scaler tín hiệu HDMI-HDBT 4K VP-427X
Mô tả ngắn
Kramer 4K Auto–Switcher/Scaler Receiver over Long–Reach HDBaseT
Resolution support up to 4K@60Hz (4:4:4)
Up to 40m (130ft) at 4K@60Hz (4:2:0)
Up to 70m (230ft): at full HD (1080P@60Hz)
Auto–switching inputs
CEC auto display control
Built–in relay connections
HDCP 2.2 & 1.4 compliant
Hotline: 0918 642 886
Kramer VP-427X is a high−performance auto−switcher/scaler receiver for 4K HDMI™ over long−reach HDBaseT and a local HDMI input. VP-427X receives the HDBaseT signal from a compatible transmitter, converts it to HDMI and up− or down−scales the picture to any resolution up to 4K@60HZ (4:4:4) set by the user or automatically matching the resolution of the HDMI monitor. VP-427X enables extending video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.
- HDMI Signal Extension — HDCP 1.4 / 2.2. 4K60, CEC, xvYCC color (on input).
- Audio De–embedding — Output the HDMI audio to a balanced stereo output.
- Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control.
- Includes relay outputs and easy connection to occupancy sensors and contact closure switches.
- I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation.
- ProcAmp Control — Contrast, brightness, color, etc.
- Freeze button.
- Convenient Unit Control and Configuration Options — Local control via front panel source switching buttons and OSD menu. Distance control via RS–232 serial commands transmitted by a PC, touch screen system or other serial controller and relay switches.
- Easy, Cost–effective Maintenance — Local firmware upgrade via USB connector.
- Easy and Elegant Installation — Compact MegaTOOLS™ fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the recommended rack adapter.
INPUTS
-
1 HDBaseT: On an RJ–45 connector
-
1 HDMI: On a female HDMI connector
OUTPUTS
-
1 HDMI: On a female HDMI connector
-
1 Balanced Audio: On a 5–pin terminal block connector
PORTS
-
1 Control RS−232: On a 3–pin terminal block connector
-
1 Data RS−232: On a 3–pin terminal block connector
-
1 Remote Contact−Closure: On a 4 pin terminal block connector
-
1 Relay: On a 3–pin terminal block connector
-
1 Program USB: On a USB–A connector for firmware upgrade
VIDEO
-
Max Data Rate (on the HDMI ports): 18Gbps
-
Max Resolution (on HDMI ports): 4K@60Hz (4:4:4)
-
HDMI Support: 4K60, CEC, xvYCC color
-
Content Protection: HDCP 1.4 and 2.2
-
Output Resolutions: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz RB, 2560x1600@60Hz RB, 1920x1080@60Hz, 1280x720@60Hz, 2048x1080@50/60Hz, 2560x1440@60Hz RB, 720x480p@60Hz, 720x576p@50Hz, 1280x720p@50/60Hz, 1920x1080p@24/25/30/50/60Hz, 2560x1080p@50/60Hz, 2K@24/25/30/50/60Hz, 4K@24/25/30/50/60Hz
EXTENSION LINE
-
Up to 40m (130ft): At 4K@60Hz (4:2:0)
-
Up to 70m (230ft): At full HD (1080p@60Hz)
EXTENDED RS-232
-
Baud Rate: 300 to 115200
POWER
-
Source: PoE or 12V DC Adapter
-
Consumption: 1A
USER INTERFACE
-
Control: Input selection buttons, remote contact–closure switches, relay switches. Kramer API via RS–232 serial commands transmitted by a PC, touch screen system or other serial controller, embedded web pages via LAN for configuration and control
-
Indicators: Power, link, input selection LEDs
ENVIRONMENTAL CONDITIONS
-
Operating Temperature: 0° to +40°C (32° to 104°F)
-
Storage Temperature: –40° to +70°C (–40° to 158°F)
-
Humidity: 10% to 90%, RHL non–condensing
ENCLOSURE
-
Size: MegaTOOLS®
-
Type: Aluminum
-
Cooling: Convection ventilation
STANDARDS COMPLIANCE
-
Safety: CE
-
Environmental: FCC, UL
ACCESSORIES
-
Included: Power adapter, rubber feet, bracket set
PRODUCT DIMENSIONS
-
18.75cm x 14.50cm x 2.54cm (7.38" x 5.71" x 1.00" ) W, D, H
PRODUCT WEIGHT
-
0.9kg (1.9lbs) approx.
