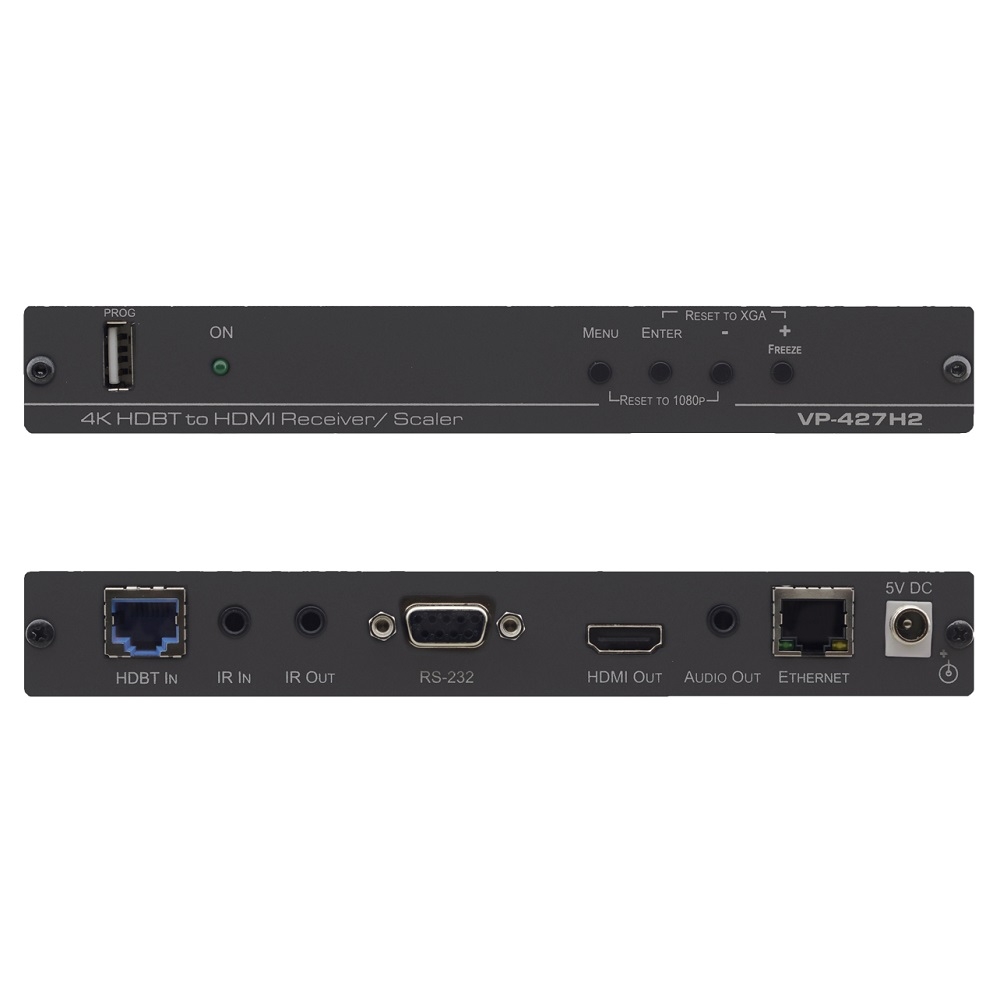

Bộ nhận và Scaler tín hiệu HDMI-HDBT VP-427H2
Mô tả ngắn
HDMI 2.0, HDCP1.4 & HDCP2.2
Up to 4K@60 (4:4:4)
Ethernet Tunneling
Hotline: 0918 642 886
VP−427H2 is a high−performance receiver/scaler for extended−reach HDBaseT twisted pair, HDMI, bidirectional RS−232 and IR signals. The unit receives an HDBaseT signal that it converts to HDMI and passes Ethernet, IR and RS−232 signals, as well as an unbalanced stereo audio signal. It up− or down−scales the picture to match the resolution of the HDMI monitor.
- - Max. Output Resolution (HDMI) — Up — and down–scales up to 4K@60Hz (4:4:4).
- - Max. Input Resolution (HDBaseT) — HDBaseT input resolution up to 4K@60Hz (4:2:0).
- - Supports HDMI 2.0 and HDCP 1.4 / 2.2
- - Audio Support — Embedded and analog (supporting LPCM 2CH) for the output.
- - HDBaseT Data Tunneling — Supports Ethernet tunneling, as well as bidirectional tunneling for RS–232 and IR control.
- - On–Screen Display (OSD) — For easy setup and adjustment, accessible via the front–panel buttons.
- - Constant Sync — Maintains sync on the output, even if input video signal is lost or interrupted.
- - System Range — Up to 100m (328ft) at 4K.
INPUTS
-
1 HDBaseT twisted pair on an RJ–45 connector, 1 IR on a 3.5mm mini jack
OUTPUTS
-
1 HDMI connector, 1 IR on a 3.5mm mini jack, 1 unbalanced stereo audio (1.2Vrms nominal, 100Ω) on a 3.5mm mini jack
PORTS
-
1 bidirectional RS–232 port on a 9–pin D–sub connector, 1 Ethernet on an RJ–45 connector, 1 USB (A) for upgrading
COMPLIANCE WITH HDMI STANDARD
-
Supports up to HDMI 2.0, and HDCP 2.2
OUTPUT RESOLUTIONS
-
640x480@60Hz, 800x600@60Hz 1024x768@60Hz, 1280x768@60Hz, 1360x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1440x900@60Hz, 1400x1050@60Hz, 1680x1050@60Hz, 1600x1200@60Hz, 1920x1200@60Hz 480P@60Hz, 576P@50Hz, 720P@50/60Hz, 1080P@24/25/30Hz, 4k2k@24/25/30Hz, 4k2k (4:2:0)@50/60Hz, 4k2k (4:4:4)@50/60Hz, Native
MAX. INPUT RESOLUTION
-
(HDBaseT) 4K@60Hz (4:2:0)
MAX. RANGE
-
100m (328ft) at 4K
OUTPUT REFRESH RATE
-
60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions
AUDIO SAMPLING RATE
-
48kHz for analog audio output
VIDEO LATENCY
-
Progressive input — 30ms (approx.)
-
interlaced input — 50ms (approx.)
EMBEDDED AUDIO
-
HDMI and HDBT support multi–channel audio
RS-232 BAUD RATE
-
115200bps max
CONTROLS
-
Front panel buttons, OSD menu
INDICATORS
-
ON LED (green)
POWER CONSUMPTION
-
5V DC, 2.5A
POWER SOURCE
-
5.2V/4A
OPERATING TEMPERATURE
-
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
-
–40° to +70°C (–40° to 158°F)
HUMIDITY
-
10% to 90%, RHL non–condensing
INCLUDED ACCESSORIES
-
Power supply
